Product Details:

Place of Origin: Shanxi, China
Brand Name: Zhengtong
Certification: ISO9001, ISO14001
Model Number: B20, B30,B40, B60, B80,B100, B120, B170, B205, B400

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet
Delivery Time: 5-10 days
Supply Ability: 1500mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Ceramic Microbeads Blasting Media Chemical Index: ZrO2 60-68%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 2*12.5kgs Barrels In Paper Cartons Or 25kgs Barrels +pallet
High Light:

Surface Finish Ceramic Bead Blasting Media


Ceramic Bead Blasting Media B20


Spherical Abrasive Media Blasting

Product Description

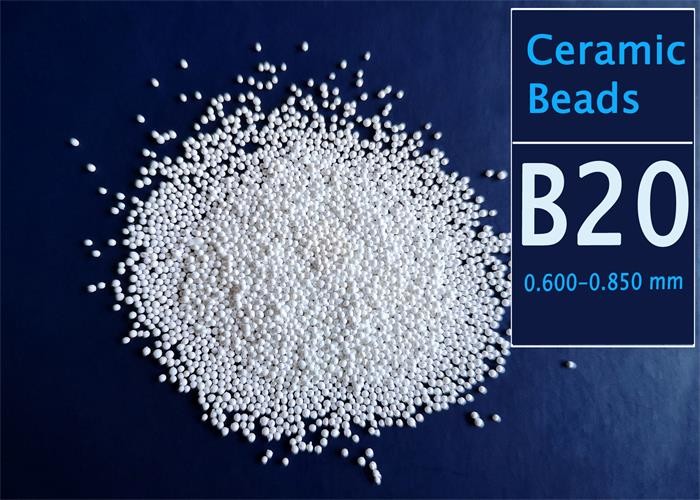

Surface finish Ceramic beads blasting media B20 size 600-850 μm

Ceramic beads is round blasting and shot peening media , high tech abrasive agent used in aviation and Aerospace industry.
Ceramic beads quality meets standard of SAE J1830 and SAE AMS 2431/7
Application covering Deburring, Surface Finishing, Polishing and Cleaning.
Zhengzhou Zhengtong Abrasive Imp.&Exp. Co., is the main exporter of ceramic beads from China.




Chemical Index ZrO2 SiO2 Al2O3
60-65% 25-30% 7-13%
Typical Value 62.20% 26.10% 9.05%
Bulk Density 2.3g/cm3
Specific Density 3.85g/cm3
Vickers Hardness 700HV


B20 B30 B40 B60
600-850µm 425-6000µm 0250-425µm 125-250µm
B80 B120 B170 B205
180-250µm 63-125µm 45-90µm 0-63µm

Special sizes available against clients’ requirement.



Surface finish consistency
01 Low breakdown
With features of less abrasive breakdown and almost no dust generation which in turn results in a cleaner working environment and better operator visibility
Comparing with glass beads, ceramic bears is of low breakdown rates up to 15:1 , thus enables it repeatable and consistent result to be achieved.
02 Narrow particle size distribution
The more centralized granularity can make the objects surface more uniform, and softer view in blasting process.
Contrast of Ceramic bead, glass beads and steel shot

Index Ceramic beads Glass beads Steel shot
Main components ZrO2+SiO2 SiO2+NaO2 C+Si+Mn+S+P
Vickers hardness ≈700HV ≈560HV ≈700HV
True density 3.85g/cm³ 2.6 g/cm³ 7.8 g/cm³
Particle size interval 0.04-0.85mm 0.045-0.85mm 0.05-0.60mm
Particle shape spherical spherical rounded corner
Dust pollution very little much little
Metal pollution no no yes
Number of cycles multiple times 1-2times multiple times
service life long Low,1/20 of ceramic bead long
power consumption Low Low High
Equipment wear Low Low High
Sandblasting effect High finish, non-discoloration of workpiece high finish, white glaze,

low finish,
blackened workpiece


  • In Sandblasting

1) 3C products - Sandblasting Finishing
Alloy shell, middle frame and built-in parts of computers, mobile phones, cameras, etc. - sandblasting finishing
Clean burrs to form film-light decorative or fine reflective surface, on alloy workpiece such as mobile phone to achieve different reflection or matte.
2) Kitchen Industry-Sandblasting finishing
Stainless steel cutlery and kitchen utensils sandblasting finishing
3) Golf club - Sandblasting finishing
Golf club & ball head alloy surface treatment Sandblasting finishing
4) Casting and forging parts, welded parts, heat-treated parts - Sandblast Cleaning
Clean all the dirt on the surface of the alloy workpiece, micro burrs, improve the flatness and smoothness of the workpiece, and expose to uniform metallic color, achieving smooth and non-reflective requirements on surface.
5) Pipeline - Sandblast Cleaning
Metal pipes such as copper pipes and steel pipes are cleaned and polished on the inner and outer walls.
6) Molds - Sandblast cleaning
Cleaning of molds of glass bottles, tires, etc., rust, dirt and impurities.
7) Electroplating, painting, anode-Surface Pretreatment
Electroplating, painting, anode, Teflon, rubber, plastic, traversing, metal, spray welding, gold plating, titanium plating, etc., to remove dirt and increase product surface adhesion.
8) Hardware parts - Sandblasting to improve lubrication conditions
It can produce uniform and fine uneven surface on the surface of the part, so that the lubricating oil can be stored, improve the lubrication condition and reduce the noise.

  • In shot peening

1) Aerospace industry-Shot Peening
Suitable for aerospace engine components, aircraft landing gear, gear transmissions, aero-engine blades, aircraft wing-shot peening
2) Automotive industry-Sandblasting reinforcement/ Shot Peening
Suitable for gearbox gears, automotive aluminum hubs, piston components/shock absorbers, engine crankshaft sandblasting reinforcement/shot peening
3) Machinery, Medical Instrument - Sandblast finishing/shot peening
The overall sandblasting and polishing, finishing, restore the natural color of the metal, enhance the visual effect and texture, and also shot peening reinforcement to improve its worklife.
Surface Finish Ceramic Bead Blasting Media B20 Spherical Abrasive Media Blasting 0




Overhead conveyor blast machines
Tumble belt blast machines
Rotary tab le blast machines
Roller conveyor blast machines
Compressed air sandblasters
Sandblasting room
