• 1100 HV Zirconia Grinding Media Magnetic Materials Zirconium Oxide Beads
1100 HV Zirconia Grinding Media Magnetic Materials Zirconium Oxide Beads

1100 HV Zirconia Grinding Media Magnetic Materials Zirconium Oxide Beads

Product Details:

Place of Origin: Shanxi,China
Brand Name: FUDA
Certification: ISO9001,ISO14001
Model Number: 0.1-50mm

Payment & Shipping Terms:

Minimum Order Quantity: 25kg
Price: Negotiation
Packaging Details: 25kg drum+Pallet
Delivery Time: 3-14days depending on the order quantity
Payment Terms: T/T, L/C
Supply Ability: 1000MT per Year
Get Best Price Contact Now

Detail Information

Product Name: Zirconia Grinding Beads Or Ceramic Ball Usage: Grinding And Dispersion
Vicker Hardness: ≥1100 HV Mohs Hardness: >9 Mohs
True Gravity: ≥6.0 G/cm3 Bulk Density: ≥3.7 G/cm3
ZrO2: ≥95% Y2O3: ≥4.5%
High Light:

1100 HV Zirconia Grinding Media

,

Zirconia Grinding Media Magnetic Materials

,

Magnetic Materials Zirconium Oxide Beads

Product Description

Low Abrasion Rate Zirconia Grinding Beads Ceramic Ball for Magnetic Materials​

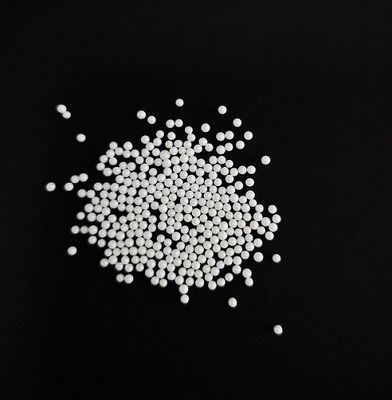

1. Description of Zirconia Grinding Beads Ceramic Ball

Zirconia Grinding Bead is also called Zirconia Beads,95 Yttrium stablized beads or Zirconia ceramic ball or

Zirconium bead . It owns the good spherical ,the gloss of pearl and smooth surface ,it is the most durable

and efficient grinding media at present. It is more suitable for high velocity operations and wet grinding

operations.

2. Main Technical Index of 95 Yittrium Stabilized Zirconia Grinding Beads



Commodity Typical Chemical Index Main Physical Index
Zirconia Grinding Beads ZrO2 ≥95% True Gravity ≥6.0g/cm3
Y2O3 ≥4.5% Bulk Density ≥3.7g/cm3
Others ≤0.5% Vicker Hardness ≥1100 HV
sintering process compressive strength ≥2.0KN Φ2mm



Particle Size
Φ0.1-0.2mm,Φ0.2-0.3mm,Φ0.3-0.4mm,Φ0.4-0.6mm,Φ0.6-0.8mm,Φ0.8-1.0mm,Φ1.0-1.2mm,
Φ1.2-1.4mm,Φ1.4-1.6mm,Φ1.6-1.8mm,Φ1.8-2.0mm,Φ2.0-2.2mm,Φ2.2-2.4mm,Φ2.4-2.6mm,
Φ2.6-2.8mm,Φ4mm,Φ5mmΦ,6mm,Φ7mm,Φ8mm,Φ9mm,Φ10mm,Φ12mm,Φ15mm,Φ17mm,
Φ20mm,Φ25mm,Φ30mm,Φ40mm,Φ45mm,Φ50mmetc.
Special products can be customized

3. Main Features of Zirconia Grinding Beads Ceramic Ball



  • Low abrasion loss due to the unique yttria stabilized zirconia (YSZ)material system.
  • Higher grinding efficiency due to zirconia’s higher density
  • Most durable grinding material, reducing operational cost in the long run.
  • Lower Wear rate substantially
  • Acid and alkali resistant
  • Good Spherical and smooth surface



4. Main Application of Zirconia Grinding Beads Ceramic Ball

  • Magnetic materials such as iron and chrome based magnetic materials used for audio or video
  • recording tapes etc.
  • Electronic-grade ceramics such as ferroelectric, sensors etc,advanced structural ceramics
  • Nano materials
  • Pigments,Ink,Dye,Coating
  • Medicine,Pesticides,Cosmetics etc.

5. Products Package



25kg drum+pallet,special packages can be customized.



1100 HV Zirconia Grinding Media Magnetic Materials Zirconium Oxide Beads  0









































































6. FAQ

Q: What is the size in your products?

A: Our common size is 0.1mm-50mm. Special specification can be customized

Q: What is your terms of delivery?
A: FOB, CFR, CIF,DDU,FCA etc.

Q: Are you able to accept small quantity sample order before Formal Production?

A: Yes, of course.

Q: How long the goods will be prepared well after order placed?

A: Goods will be ready well 3-14 days after receiving the payment, it depends on the order

quantity and goods specifications.
