• B20 - B400 Ceramic Bead Blasting Abrasive Media Blasting Zirconia Beads
B20 - B400 Ceramic Bead Blasting Abrasive Media Blasting Zirconia Beads

B20 - B400 Ceramic Bead Blasting Abrasive Media Blasting Zirconia Beads

Product Details:

Place of Origin: China
Brand Name: Zirnano
Certification: ISO9001,ISO14001
Model Number: Z100-Z850,B20-B400

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotaible
Packaging Details: 2*12.5 KGS Barrel +Carton Box + Pallet,25KGS Barrel + Pallet
Delivery Time: 3-5 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000mts
Get Best Price Contact Now

Detail Information

Commodity: Zirconia Shot Peening Product Name: Ceramic Bead Blasting
Usage: Shot Peening Process: Melting Process
Shape: Solid Round Ball Recycles: 70-90
High Light:

B400 Ceramic Bead Blasting

,

B20 Ceramic Bead Blasting

,

Abrasive Media Blasting Zirconia Beads

Product Description

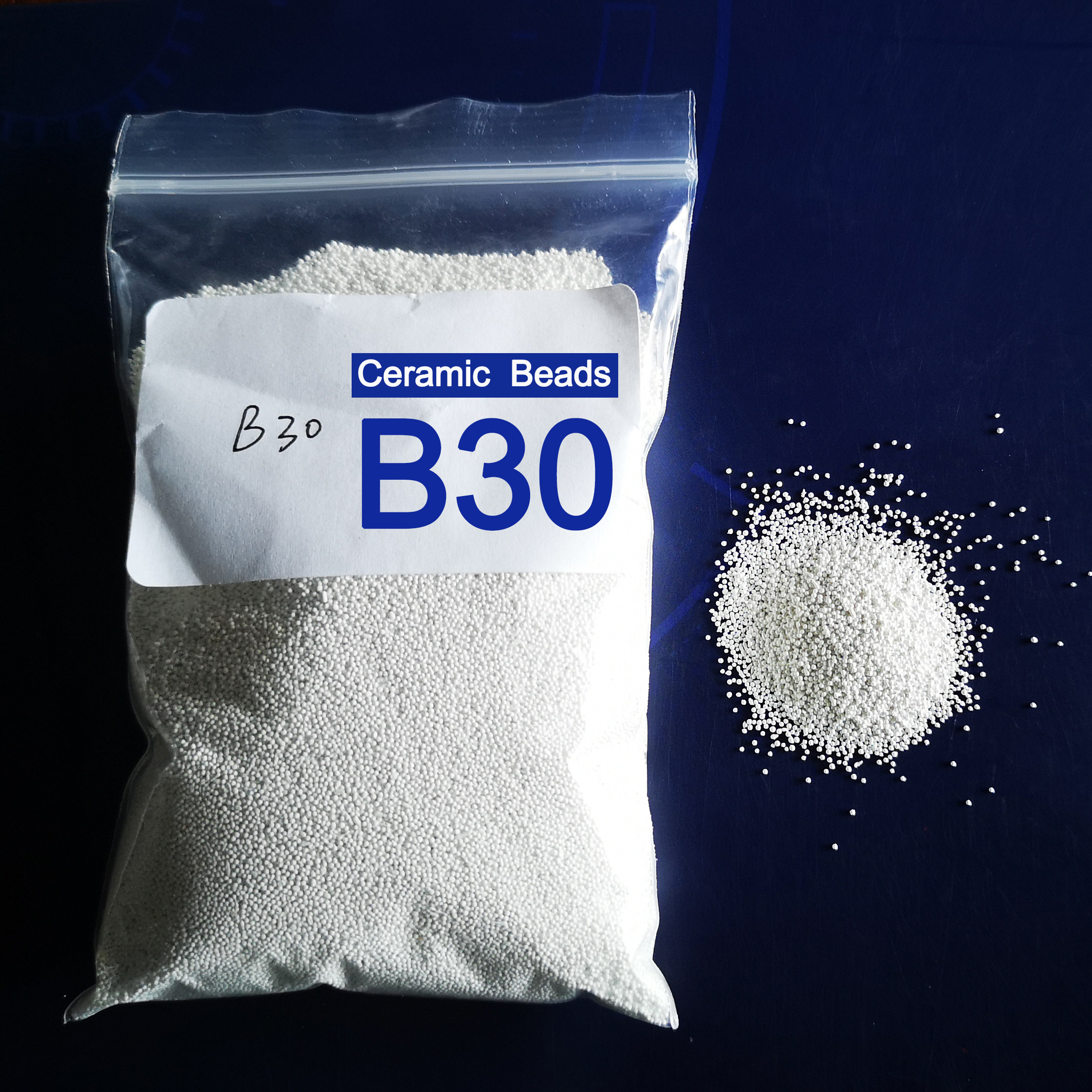

Ceramic Bead Blasting Zirconia Beads B20-B400 For Metal Surface Finish

1. Product Description of Ceramic Bead Blasting Zirconia Beads

 Ceramic Bead Blasting has higher clearliness,it is screened more than six times and blow-cleaning under

high temperature,it can work normally in humid weather.



Zirnano ceramic beads selects the high quality zirconium sand as material,then fused in an electric furnace

under high temperature over 2000 degrees,finally made into different micro beads through special technology.



It is one clean and high efficiency blasting media,widely used in surface finish of 3C products,light metal

products....



2. Main Technical Data of Ceramic Bead Blasting

Commodity Main Chemical Index Main Physical Index

Ceramic Bead

Blasting

ZrO2 60-66% Bulk Density: 2.3g/cm3
SiO2 25-30% True Specific Gravity: 3.85 g/cm3
Al2O3 7-13% Vickers Hardness: 700 kg /mm2





Particle Size
B20: 0.600-0.850mm B100: 0.125-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.125-0.250mm B205: 0.000-0.063mm
B80: 0.180-0.250mm B400: 0.030-0.063mm
Remark: Special specification can be customized



3. Unique Properties of Ceramic Bead Blasting

High Hardness,good elasticity

High mechnical strength,good impact resistance

Low breakdown rate,little dust generated in the blasting process

Wide particle size distribution,equipped with most blasting equipment

No ferrous contamination to the treatment surface,consistent blasting result



4. Main Applications of Ceramic Bead Blasting :

Smooth Stain Finish for 3C products,light metal alloys,stainless steel,high strength steel,non-ferrous alloys....



Surface cleaning for various molds such as glass molds,plastic molds,die casting etc...



More applications about ceramic beads,please kindly review our other products of ceramic bead blasting or

ceramic blasting media.



B20 - B400 Ceramic Bead Blasting Abrasive Media Blasting Zirconia Beads 0



5. Why Choose Us?

Professional Manufacturer of ceramic beads,annual output over 2000mts

Equipped the most advanced production line,testing equipment, as well as professional technical staffs;

Strict quality control and quality assurance, products will be inspected by each

Shipment,even for the free sample in small quantity;

Multiple Authentication,Certificated by ISO9001 ISO14001,SGS,ROHS;

Stable supplier of Foxconn,Ujiden,Samsung Electronics,Tongda Group etc

Products in good quality & stable performance,competitive price,flexible payment terms.



6. How to calculate the media Blasting cost?

People always need the right blasting media with best price/performance ratio,here we simply state how

to calculate the media cost,details as below:



Media Blasting Cost
Media Name Cycles %Breakdown
Glass Beads 9-12 10%
Ceramic Beads 70-90 1.20%
Steel shot 80-100 1%
Media Cost Per Hour=Hourly Delivery Rate*%Breakdown*cost per Lb.
Media Cost to Blast a Part=Media Cost Per Hour*Part cycle time(% of Hour)
