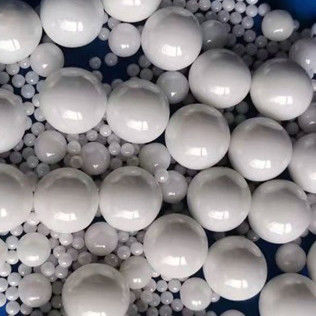

TZP 95 Yttria Zirconia Beads Ytz Grinding Media 0.6-0.8mm 1.2-1.4mm For Alumina Powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Zirnano |
| Certification: | ISO14001,ISO9001,SGS,ROHS |
| Model Number: | 0.1-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg barrel+Pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300mts per year |
|
Detail Information |
|||
| Commodity: | Zirconia Grinding Beads | Product Name: | 95 Zirconia Beads |
|---|---|---|---|
| Usage: | Grinding Media For High Viscosity Slurry | Color: | White |
| Shape: | Spherical | Bulk Density: | 3.7g/cm3 |
| True Gravity: | 6.0g/cm3 | Vicker Hardness: | 1100HV |
| Main Chemical: | 95% ZrO2 | ||
| High Light: | TZP 95 Yttria Zirconia Beads,Ytz Grinding Media 0.6mm,Yttria Zirconia Beads For Alumina Powder |
||
Product Description
TZP 95 Yttrium Stabilized Zirconia Beads Grinding Media 0.6-0.8mm 1.2-1.4mm 1.4-1.6mm for Alumina Powder
1. Product Description of 95 Yttrium Stabilized Zirconia Grinding Beads
95 Zirconia beads selects the high quality micrometer and sub-nanometer zirconia powder and yttrium
oxide as the raw materials,so it is also called as 95 Yttrium Stabilized Zirconia Beads. Since it has
tetragonal zirconium polycrystal, then it is also called as "TZP" zirconia beads, which are mainly used
for ultra-fine grinding and dispersion of materials requiring "zero pollution" and high viscosity and high
hardness.
2. Main Technical Data of 95 Yttrium Stabilized Zirconia Beads
| Commodity | Typical Chemical Index | Main Physical Index |
|
95 Zirconia Beads Grinding Media |
ZrO2 ≥95% | True Gravity ≥6.0g/cm3 |
| Y2O3 ≥4.5% | Bulk Density ≥3.7g/cm3 | |
| Others ≤0.5% | Vicker Hardness ≥1100 HV | |
| sintering process | compressive strength ≥2.0KN Φ2mm |
| Zirconia Beads Specification | |||
| Φ0.1-0.2mm | Φ0.2-0.3mm | Φ0.3-0.4mm | Φ0.4-0.6mm |
| Φ0.6-0.8mm | Φ0.8-1.0mm | Φ1.0-1.2mm | Φ1.2-1.4mm |
| Φ1.4-1.6mm | Φ1.6-1.8mm | Φ1.8-2.0mm | Φ2.0-2.2mm |
| Φ2.2-2.4mm | Φ2.4-2.6mm | Φ2.6-2.8mm | Φ2.8-3.0mm |
| Φ4mm | Φ5mm | Φ6mm | Φ7mm |
| Φ8mm | Φ9mm | Φ10mm | Φ12mm |
| Φ15mm | Φ17mm | Φ20mm | Φ25mm |
| Φ30mm | Φ40mm | Φ45mm | Φ50mm |
| Special Specification can be customized | |||
3.Main Application of Zirconia Milling Media
Widely used for the ultra-fine grinding and dispersion of ink, paint, coating, non mineral, dye,
pigment, pesticide, titanium dioxide, electronic ceramics, medicine and other industries.
4. How to choose the right size of zirconia beads?
The size of zirconia beads used for sand mill is determined by the feeding particle size and discharging
particle size of the material to be ground.
Generally speaking, the size of zirconia beads is one thousand times as the one of discharge particle
size of grinding materials.
If the difference gap between the initial particle size and the target particle size exceeds 1000 times,
two kinds of grinding may be required. In addition, In addition, it is also required to refer to the diameter
of separator screen and other working conditions. And also need to check if the separator and screen
diameter of the grinder are proper. The minimum diameter of the bead is generally equal to twice the
diameter of the screen. For example,If the screen clearance is 0.15 mm, then the minimum size of
zirconia bead can be selected is 0.3 mm.
That is the main points to choose the right zirconia beads for reference.
5. Why Choose us?
Professional Manufacturer,Multiple Authentication
Certificated by ISO9001 ISO14001,SGS,ROHS
Guaranteed Product Quality
All products is traceable from the very beginning of raw material to the final products,each shipment
will be tested even for one some quantity sample,providing good quality & stable performance;
High price/performance Ratio
Our plant is located in mountain area,with competitive environmental costs and staff salaries,finally
providing more competitive price;
Flexible Cooperation models
We will provide flexible cooperation model and payment terms no matter you are the final users or distributor etc.
