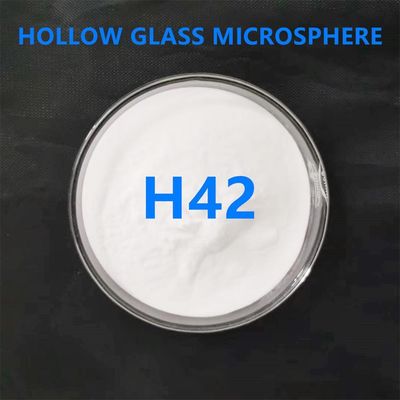

Min 92% H42 Hollow Glass Microspheres Bubble For Oilfield Cementing Mud

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Paper cartons+Pallet;Ton bag Delivery Time : 3-10 days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 15000 mts per year
Place of Origin: Henan,China Brand Name: Zhengtong
Certification: ISO9001 Model Number: H20-H60

Detail Information

Product Name: Hollow Glass Sphere Hollow Glass Sphere Glass Bubble Materials: Soda Lime Borosilicate Glass
True Density: 0.12 -0.70g/c M3 Bulk Density: 0.10 -0.40g/cm3
Mpressive Strength: 4-125MPa/500-18000 Psi Particular Size: 2-120μm
Usage: Oilfield Cementing Mud/ Drilling Fluid;Thermal Insulation Paint;Buoyancy Modules And Emulsion Explosive; Flotation: Min 92%
High Light:

Hollow Glass Bubble Microspheres

,

H42 Hollow Glass Microspheres

,

Oilfield Cementing Mud Hollow Glass Microspheres

Product Description

1. Product Description

Hollow glass microsphere is a kind of hollow sphere, a kind of ultralight inorganic and nonmetallic powder materials. It’s micron-size and looks like foam bubbles with the microscope, also known as glass bubble and hollow glass microsphere.

It has the characteristics of light weight, large volume, low thermal conductivity, high compressive strength, and good fluidity. So it’s a good alternative filler instead of conventional fillers, such as talc, calcium carbonate, silicas, etc.



Our products have H series, M series and S series.



2. Main Parameters of Hollow Glass Sphere

Appearance

White flowable powder

Chemicals

Borosilicate glass

True Density

0.12-0.70g/cm3

Bulk Density

0.10-0.40g/cm3

Crush Strength

4-125Mpa/500-18000Psi

Survival

Min 90%

Flotation

Min 92%

Moisture

Max 0.5%

Particle Size

D50:20-70um

Max. Particle Size:

200um

Melting Point

1600°C





3. Main Models and Specification of Hollow Glass Microsphere

Types True Density
(g/cm3)
Bulk Density
(g/cm3)
Compressive
Strength (Mpa/PSI)
Particle size
D50 (μm) D90 (μm)
H20 0.20-0.22 0.10-0.12 4/500 65 110
H22 0.21-0.24 0.11-0.13 5/750 65 100
H25 0.24-0.27 0.13-0.15 5/750 65 100
H28 0.27-0.30 0.14-0.17 10/1500 55 85
H30 0.29-0.32 0.15-0.18 10/1500 55 85
H32 0.31-0.33 0.17-0.19 14/2000 45 80
H35 0.33-0.37 0.18-0.21 21/3000 40 70
H38 0.37-0.39 0.19-0.22 38/5500 40 65
H40 0.39-0.42 0.19-0.23 28/4000 40 70
H42 0.41-0.44 0.21-0.24 55/8000 40 60
H46 0.44-0.48 0.23-0.26 41/6000 40 70
H50 0.48-0.52 0.25-0.27 55/8000 40 60
H55 0.53-0.57 0.27-0.29 69/10000 40 60
H60 0.58-0.62 0.29-0.34 83/12000 40 65





4. Advantages of Hollow Glass Bubbles

1)Light specific gravity and large volume
2)High disperion and good fluidity
3)Heat insulation, sound insulation
4)Low rate of absorbing oil



5. Application of HGS

1)Building materials in the field using its thermal insulation effect, mainly for reflective insulation coating, putty, adhesives,etc.;
2)Composite materials primarily low density and ease of use of its processing characteristics, as to reduce the material, reducing its weight components to improve component quality;
3)Aerospace navigation using its light weight, high compressive strength characteristics of the production of lightweight components;
4)Oil and gas exploration in the field of drilling fluid used as a low-density and low-density cement slurry.

5)Emulsion Explosives

6)Marine Buoyancy
