Size H20-H60 Hollow Glass Microspheres For Thermal Insulation Coatings
Product Details:
| Place of Origin: | Zhengzhou, China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001, ISO14001 |
| Model Number: | H20-H60 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100kgs |
|---|---|
| Price: | by negotiation |
| Packaging Details: | Paper cartons+Pallet, paper bags+Pallet |
| Delivery Time: | 3-10 days |
| Payment Terms: | T/T, L/C, MoneyGram, PayPal, X Transfer |
| Supply Ability: | 5000mt per year |
|
Detail Information |
|||
| Commodity Name: | Hollow Glass Microspheres | Color: | White |
|---|---|---|---|
| Size: | H20-H60 | Specific Density: | 0.2-0.6 G/cm3 |
| Compressive Strength: | 4-125 Mpa/500-18000 Psi | Application: | Reflective Thermal Insulation Coating, Oilfield Cementing Mud/ Drilling Fluid, Solid Floating Materials, Epoxy Tooling Board, SMC/BMC, 5G Board Modified Plastic. Ect. |
| Highlight: | H60 Hollow Glass Microspheres,H20 Hollow Glass Microspheres,Insulation Coatings Hollow Glass Microspheres |
||
Product Description

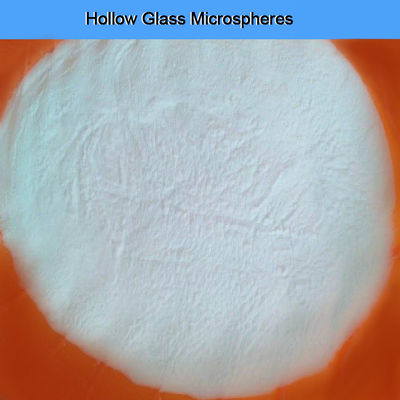

Hollow glass microspheres size H20-H60 for thermal insulation coatings
Description of hollow glass microspheres:
Hollow glass microspheres is also called hollow glass beads, it is hollow and tiny spherical materials containing inert gas in it.
It is hollow particle with unique and stable properties. And has the advantages of light weight, large volume, low thermal conductivity, good dispersion, good fluidity and great stability. In addition, it also has excellent properties such as insulation, self-lubrication, sound insulation, non-water absorption, corrosion resistance, radiation protection, and non-toxicity. Due to its unique hollow structure, physical and mechanical properties and its stable chemical properties, as a non-metallic material additive, it is non-toxic, colorless and tasteless, and has a wide range of uses as filler agent and lightening agent.
Applicable for thermal insulation coatings, solid floating materials, oilfield cementing mud and drilling liquid, and 5G board modified plastic, etc....
Specification of hollow glass microspheres:
| Types | True Density (g/cm3) |
Bulk Density (g/cm3) |
Compressive Strength (Mpa/PSI) |
Particle size | Application | |
| D50 (μm) | D90 (μm) | |||||
| H20 | 0.20-0.22 | 0.10-0.12 | 4/500 | 65 | 110 | Epoxy Tooling board, Floating material,Emulsion explosive, Car repair putty, Paints |
| H22 | 0.21-0.24 | 0.11-0.13 | 5/750 | 65 | 100 | Epoxy Tooling board, Paints |
| H25 | 0.24-0.27 | 0.13-0.15 | 5/750 | 65 | 100 | Paints, Sealants, Buoyancy materials |
| H28 | 0.27-0.30 | 0.14-0.17 | 10/1500 | 55 | 85 | Cementing slurry and Drilling fluids |
| H30 | 0.29-0.32 | 0.15-0.18 | 10/1500 | 55 | 85 | Thermal-insulation paints.Buoyancy materials |
| H32 | 0.31-0.33 | 0.17-0.19 | 14/2000 | 45 | 80 | Paints,SMC/BMC, Sealants, Putty |
| H35 | 0.33-0.37 | 0.18-0.21 | 21/3000 | 40 | 70 | Cementing slurry & Drilling fluids |
| H38 | 0.37-0.39 | 0.19-0.22 | 38/5500 | 40 | 65 | Paints,SMC/BMC, PVC Plastisils, Buoyancy materials |
| H40 | 0.39-0.42 | 0.19-0.23 | 28/4000 | 40 | 70 | Cementing slurry, Drilling fluids, Paints |
| H42 | 0.41-0.44 | 0.21-0.24 | 55/8000 | 40 | 60 | Cementing slurry & Drilling fluids |
| H46 | 0.44-0.48 | 0.23-0.26 | 41/6000 | 40 | 70 | Cementing slurry & Drilling fluids, SMC/BMC |
| H50 | 0.48-0.52 | 0.25-0.27 | 55/8000 | 40 | 60 | Cementing slurry& drilling fluids |
| H55 | 0.53-0.57 | 0.27-0.29 | 69/10000 | 40 | 60 | Cementing slurry & drilling fluids |
| H60 | 0.58-0.62 | 0.29-0.34 | 83/12000 | 40 | 65 | Cementing slurry & drilling fluids |
Properties of hollow glass microspheres:
Color: pure white.
It can be widely used in products that require appearance and color.
- Light weight and large volume
The density of hollow glass beads is about one tenth of the density of traditional filler particles. After filling, it can greatly reduce the basis weight of the product, replace and save more production resins, and reduce product costs.
- High dispersion, good liquidity
Because hollow glass beads are tiny spheres, they have better fluidity in liquid resin than flake, needle or irregular shape fillers, so they have excellent mold filling performance. What's more important is that the small microbeads are isotropic, so there will be no inconsistency in the shrinkage rate of different parts due to orientation, and the dimensional stability of the product is guaranteed without warping.
- Heat insulation, sound insulation, insulation, low water absorption
The inside of the hollow glass beads is a thin gas, so it has the characteristics of sound insulation and heat insulation, and is an excellent filler for various heat insulation and sound insulation products. The thermal insulation properties of hollow glass beads can also be used to protect the product from the thermal shock caused by the alternating between rapid heating and rapid cooling conditions. The high resistivity and extremely low water absorption make it widely used in the processing and production of cable insulation materials.
- Low oil absorption
The particles of the sphere determine its smallest specific surface area and low oil absorption. During use, the amount of resin can be greatly reduced, and the viscosity will not increase much even under the premise of high addition, which greatly improves the production and operating conditions. Increase production efficiency by 10%-20%.
Application of hollow glass microspheres
Hollow glass microspheres is a product filler and lightening agent in paint coatings, rubber, modified plastics, glass fiber reinforced plastics, artificial stone, putty and other industries; the oil and gas field mining industry can produce high-strength low-density cement slurry and low-density by using its high compressive and low-density properties Drilling fluid.
Welcome to contact us to get more details.
