H35 Hollow Glass Microspheres 30000psi For Drilling Fluid

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Paper cartons+Pallet;Ton bag Delivery Time : 3-10 days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 15000 mts per year
Place of Origin: Henan,China Brand Name: Zhengtong
Certification: ISO9001 Model Number: H20-H60

Detail Information

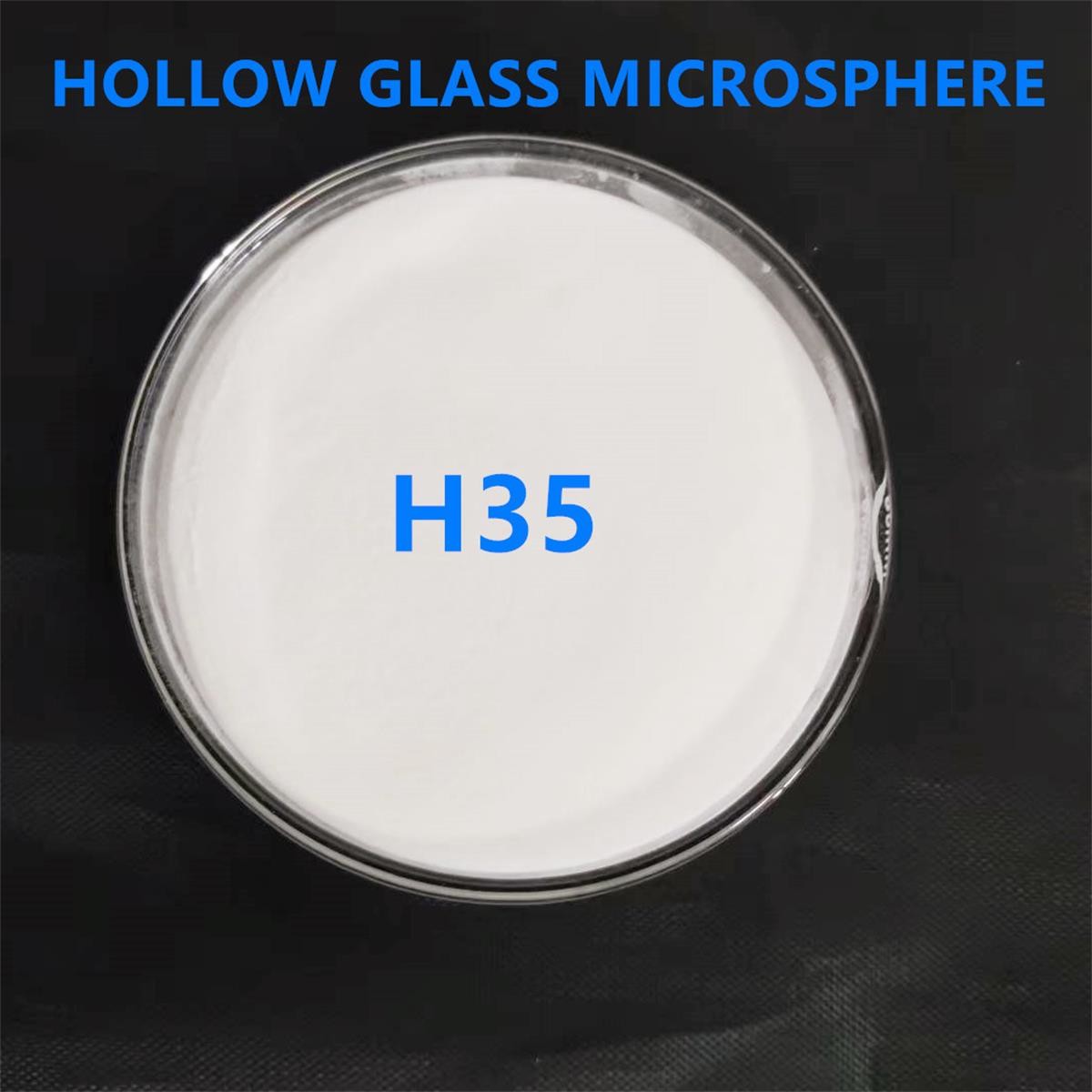

Product Name: Hollow Glass Microspheres Glass Bubble Appearance: White Powder
Materials: Borosilicate Glass True Density: 0.12 -0.70g/c M3
Bulk Density: 0.10 -0.40g/cm3 Highest Crush Strength: 30000psi
Particular Size: 2-120μm Application: Oilfield Cementing Mud/ Drilling Fluid;Thermal Insulation Paint;Industrial Filler
High Light:

H35 Hollow Glass Microspheres

,

Hollow Glass Microspheres For Drilling Fluid

,

30000 psi Hollow Glass Microspheres

Product Description

1. Production Description

Hollow glass Microsphere is ultra-light inorganic and non-metallic material. Its true density is 0.12 -0.70g/c m3g/cm³, particle size is 2-120μm,and its compressive strength ranges 4-125MPa, it has the characteristics of light weight, large volume, low thermal conductivity, high compressive strength, and good fluidity.

It is a product filler and lightening agent in paint coatings, rubber, modified plastics, glass fiber reinforced plastic, artificial stone, putty and other industries; due to its high strength, high compressive and low density, it is widely used in oilfield cementing mud and drilling liquid.



2. Physical Index of Hollow Glass Bubbles

True Density

0.12-0.70g/cm3

Bulk Density

0.10-0.40g/cm3

Crush Strength

4-125Mpa/500-18000Psi

Survival

Min 90%

Flotation

Min 92%

Moisture

Max 0.5%

Particle Size

D50:20-70um

Max. Particle Size:

200um

Melting Point

1600°C



3. Main Models and Specification of Hollow Glass Microsphere

Types

True Density
(g/cm3)

Bulk Density
(g/cm3)

Compressive
Strength (Mpa/PSI)

Particle size

D50 (μm)

D90 (μm)

H20

0.20-0.22

0.10-0.12

4/500

65

110

H22

0.21-0.24

0.11-0.13

5/750

65

100

H25

0.24-0.27

0.13-0.15

5/750

65

100

H28

0.27-0.30

0.14-0.17

10/1500

55

85

H30

0.29-0.32

0.15-0.18

10/1500

55

85

H32

0.31-0.33

0.17-0.19

14/2000

45

80

H35

0.33-0.37

0.18-0.21

21/3000

40

70

H38

0.37-0.39

0.19-0.22

38/5500

40

65

H40

0.39-0.42

0.19-0.23

28/4000

40

70

H42

0.41-0.44

0.21-0.24

55/8000

40

60

H46

0.44-0.48

0.23-0.26

41/6000

40

70

H50

0.48-0.52

0.25-0.27

55/8000

40

60

H55

0.53-0.57

0.27-0.29

69/10000

40

60

H60

0.58-0.62

0.29-0.34

83/12000

40

65



4. Properties of Hollow Glass Microsphere Bubble

1)Color and shape: pure white flowable powder.
2)Light weight and large volume
The density of hollow glass microspheres is about one-tenth of the density of traditional filler particles. When used as filler, it can greatly reduce the basis weight of the product, replace and save more production resin, and reduce product cost.
3)High dispersion and good fluidity
They have better fluidity in liquid resin than fillers in the form of flakes, needles or irregular shapes, so they have excellent mold filling performance. What's mpre, the small microbeads are isotropic, so they will not cause the inconsistency of shrinkage of different parts due to orientation, and ensure the product's dimensional stability and without warpage.

4)Insulation, sound insulation, insulation, low water absorption
The inside of the hollow glass beads is a thin gas, so it has the characteristics of sound insulation and heat insulation, and it is an excellent filler for various heat insulation and sound insulation products. The thermal insulation properties of hollow glass microspheres can also be used to protect the product from thermal shock caused by alternating changes between rapid heating and rapid cooling conditions. The high electrical resistivity and the extremely low water absorption make it widely used in the production of cable insulation materials.
5)Low oil absorption
The particles of the sphere determine its minimum specific surface area and low oil absorption rate. The amount of resin can be greatly reduced in use. Even under the premise of high addition, the viscosity will not increase much, it greatly improves the production operating conditions. Increase production efficiency by 10%-20%.



5. Application of Hollow Glass Microsphere

1)Building materials in the field which using its thermal insulation effect, mainly for reflective insulation coating, putty, adhesives and so on.;
2)Low-density FRP (fiberglass-reinforced plastic), SMC, BMC composites.
3)Nylon, PA, PA6, PA66 for reducing weight.
4)Low-density adhesives & sealants.
5)Emulsion Explosives
6)Oil and gas exploration in the field of drilling fluid used as a low-density and low-density cement slurry.

H35 Hollow Glass Microspheres 30000psi For Drilling Fluid 0
