AMS-2431-7B Ceramic Shot Peening Z150 Z210 Z300 Z425 Z600 For Aircraft Engine

Minimum Order Quantity : 100KGS Price : Negotiable
Packaging Details : 25KG Round or Square Barrel + Pallet,25kg Round Barrel+ Wooden Case;2*12.5KG Barrel + Pallet Delivery Time : 3-5 Days after order Confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 3000mt per Year
Place of Origin: China Brand Name: ZIRNANO
Certification: ISO9001,ISO14001 Model Number: Z100-Z850

Detail Information

Commodity: Ceramic Shot Peening Product Name: Micro-shot Peening
Usage: Shot Peening True Gravity: 3.85 G/cm3
Vicker Hardness: 700HV Bulk Density: 2.3 G/cm3
Shape: Solid Round Beads Size: Z100-Z850
High Light:

Z150 Ceramic Shot Peening

,

Ceramic Shot Peening For Aircraft Engine

,

Z425 micro shot peening

Product Description

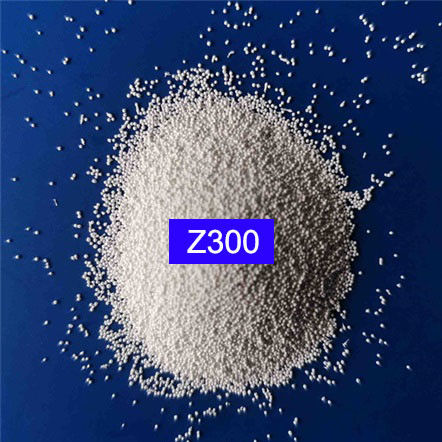

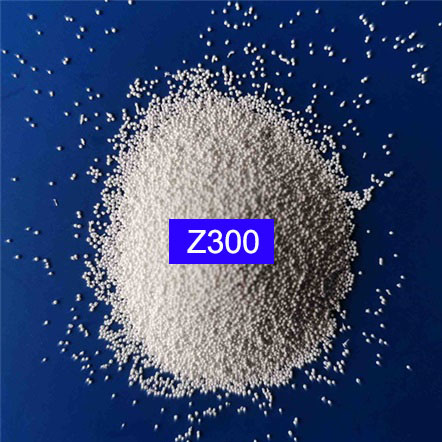

AMS-2431-7B Standard Ceramic Shot Peening Z150 Z210 Z300 Z425 Z600 for Aircraft Engine



1. Product Description of Ceramic Shot Peening

Ceramic shot peening is made by the same process as the one of ceramic beads,but in different

particle size distribution. It also adopts high quality zircon sand as the main raw material,then fused

in an electric arc furnace under high tempeture over 2000 degrees, then made into different

microbeads by special technology through processes of cooling,screening and Electromagnetic,

packing.



Compared with glass beads,ceramic beads has the advantages of high density, high hardness and

low break-down rate.



2. Main Technical Data of Ceramic Shot Peening

Commodity Name Chemical Index Physical Index

Ceramic Beads
ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
Vickers Hardness ≥700 HV
Bulk Density≥2.3g/cm3
True Gravity: 3.85g/cm3
Process: Melting
Particle Size for Ceramic Shot Peening
Z100: 100-150μm Z150: 150-210μm
Z210: 210-300μm Z300: 300-425μm
Z425:425-600μm Z600: 600-850μm
Z850: 850-1180μm /
Remark: Special specification can be customized.



3.Main Applications of Ceramic Shot Peening

Shot peening for aircraft parts;

Shot peening for automotive parts;

Shot Peening for surface strengthening of non-ferrous metals such as titanium alloys and aluminum alloys.

AMS-2431-7B Ceramic Shot Peening Z150 Z210 Z300 Z425 Z600 For Aircraft Engine 0

4. The advantages of Ceramic Shot Peening



High hardness,smooth surface;



High strength and good impact resistance;



Small deformation to ensure the accuracy of the treatment;



Low breakdown rate;



No contamination to the treatments;



More consistent surface finish.



5. Main Packge of Ceramic Shot Peening

25kgs square or round barrel+ Pallet;



25kgs round barrel+ Wooden Case;



Special package can be customized accordingly.

AMS-2431-7B Ceramic Shot Peening Z150 Z210 Z300 Z425 Z600 For Aircraft Engine 1

6. Why choose us?

Professional manufacturer of ceramic beads,annual output over 3000mts;



Advanced production line and testing equipment,professional technical staff and sales team;



Stricter quality control system,each step can be traced from the raw material to finished products;



All shipment will be sampled and tested in twice even for one small sample;



Professional sales and technical staffs,providing 7*24hrs service support;

Quick response, fast delivery,flexible cooperation model;

Customized services to meet the clients’ special requirement.
