• B80 Ceramic Beads Blasting Media Size 0.180-0.25 Mm Stainless Steel Surface Finish
  • B80 Ceramic Beads Blasting Media Size 0.180-0.25 Mm Stainless Steel Surface Finish
  • B80 Ceramic Beads Blasting Media Size 0.180-0.25 Mm Stainless Steel Surface Finish
B80 Ceramic Beads Blasting Media Size 0.180-0.25 Mm Stainless Steel Surface Finish

B80 Ceramic Beads Blasting Media Size 0.180-0.25 Mm Stainless Steel Surface Finish

Product Details:

Place of Origin: China
Brand Name: ZIRNANO
Certification: ISO9001,ISO14001
Model Number: B80: 0.180-0.250MM

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiable

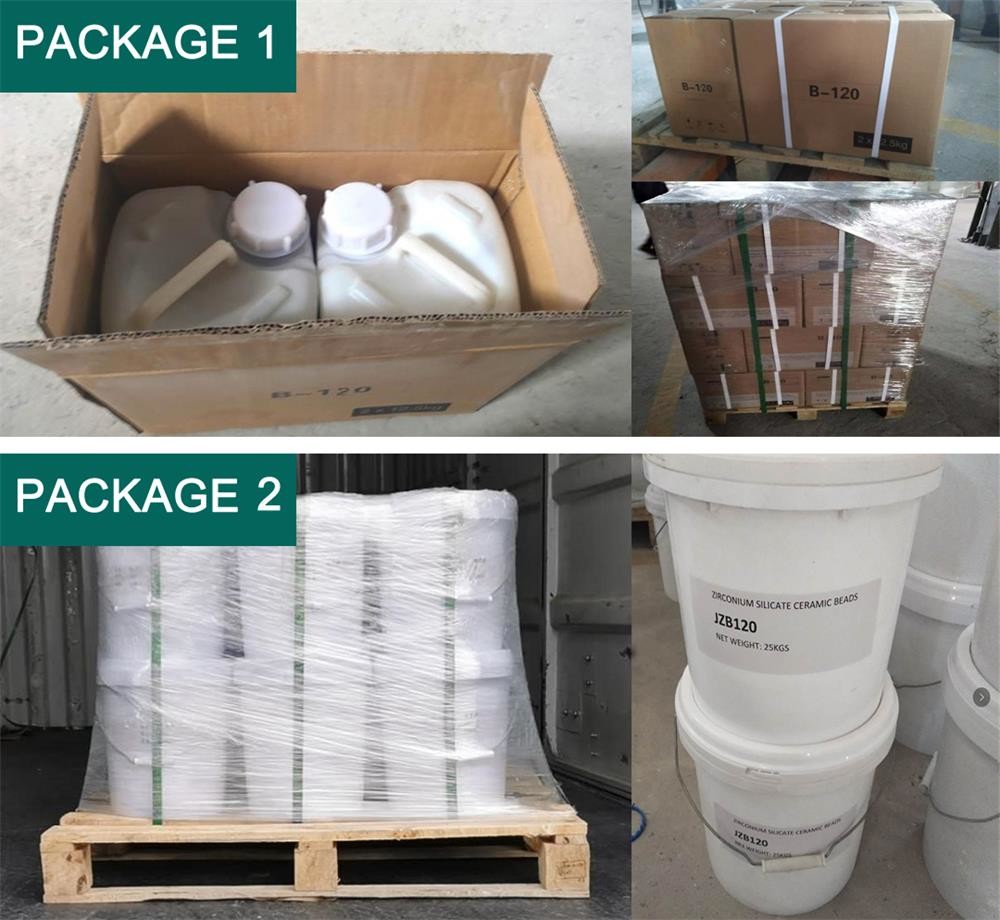

Packaging Details: 2*12.5kg barrel+ carton box + pallet or 25kg barrel+pallet
Delivery Time: 3-5 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200mts per month
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Blasting Beads Product Name: Ceramic Beads Blasting Abrasive
Usage: Surface Finish For Metal Surface Bulk Density: 2.3 G/cm3
True Gravity: 3.85 G/cm3 Vicker Hardness: 700 HV
Main Material: 62-66% ZrO2 Shape: Solid Round Ball
High Light:

B80 Ceramic Beads Blasting Media

,

0.180 Ceramic Beads Blasting Media

,

B80 ceramic bead abrasive

Product Description

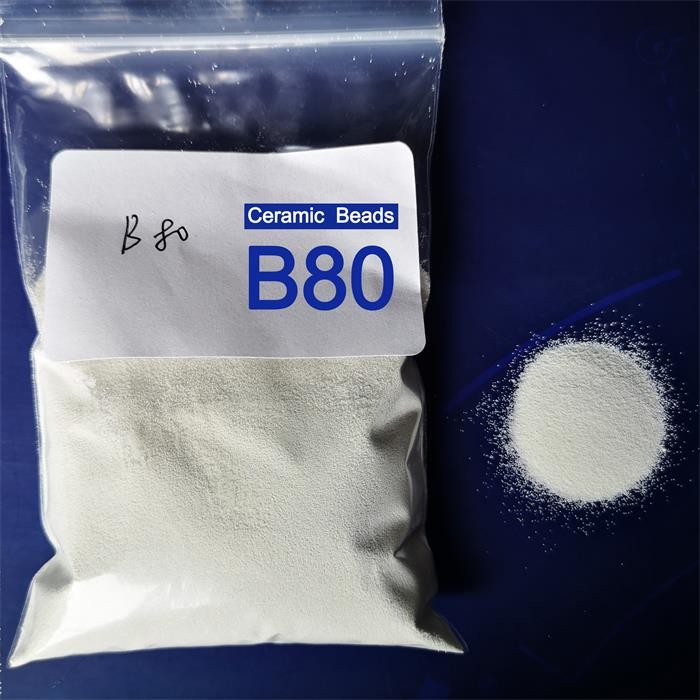

Ceramic Beads blasting media B80 size 0.180-0.25 mm for stainless steel surface finish



  • 1. Description

Ceramic beads blasting media is a new environment friendly sandblasting material, it can be used to replace of glass beads, about 12 times longer working life than glass beads, no dust, no iron pollution, good toughness, good wear resistance and excellent performance in sandblasting finish for metals like alu, alu alloy, Titanium alloy, magnesium alloy, steel, stainless steel etc..



  • 2. Specification



Technical Data
Components Content CAS No. EC No.
ZrO2 (Zirconium dioxide) 60-68% 1314-23-4 215-227-2
SiO2 (Silicon dioxide) 25-30 60676-86-0 262-373-8
Al2O3 (Aluminum oxide ) 7-13% 1344-28-1 215-691-6
Manufacturing Method Melting in above 2000℃ furnace
True Density 3.85 g/cm3
Bulk Density 2.3g/cm3
Vicker Hardness 700HV

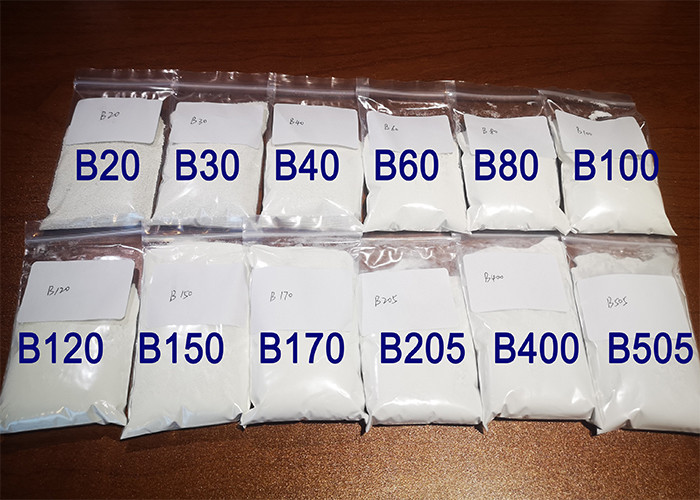

Sizes for Sand Blasting
Bead Size Size range Bead Size Size range
B20 0.60-0.85 mm B120 0.063-0.125 mm
B30 0.425-0.60 mm B125 0.000-0.125 mm
B40 0.24-0.425 mm B170 0.045-0.090 mm
B60 0.125-0.25 mm B205 0.000-0.063 mm
B80 0.180-0.25 mm B400 0.030-0.063 mm
B100 0.125-0.18 mm B505 0.000-0.030 mm
Sizes for Shot Peening
Z850 0.85-1.18 mm Z210 0.21-0.30 mm
Z600 0.6-0.85 mm Z150 0.15-0.21 mm
Z425 0.425-0.60 mm Z100 0.10-0.15 mm
Z300 0.30-0.425 mm




  • 3. Applications

Ceramic beads blasting media is widely used for metal surface sandblasting treatment, especially for stainless steel sandblasting to get matte finish.



Stainless steel sandblasting is the most common surface treatment process. It is powered by compressing air to spray the ceramic beads abrasive at high speed to the metal surface for  sandblasting treatment. The surface of the stainless steel sheet makes the outer surface undergo a qualitative change,  the light illuminates the surface of the stainless steel to form diffuse reflection, and then get a matte treatment.





B80 Ceramic Beads Blasting Media Size 0.180-0.25 Mm Stainless Steel Surface Finish 0



  • 4. Applicable Equipment

Dry sandblasting machine and Wet sandblasting machine.



There are two different types of blasting equipment for stainless steel blasting, namely dry blasting or wet blasting.
Dry sandblasting is characterized by fast efficiency and requires dust treatment.
Wet blasting is characterized by no dust generation and high efficiency.
