B100 Ceramic Beads Size 106-180 μM For Sandblasting Matte Finish Of Notebook Computer
Product Details:
| Place of Origin: | China |
| Brand Name: | ZIRNANO |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B100: 106-180μm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg barrel+pallet or 2*12.5kg barrel+ paper carton box + pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200mts per month |
|
Detail Information |
|||
| Main Material: | 60-66% ZrO2 | Usage: | Open Sandblasting Machine |
|---|---|---|---|
| Commodity: | Ceramic Beads | Product Name: | Ceramic Blasting Media |
| Bulk Density: | 2.3 G/cm3 | True Gravity: | 3.85 G/cm3 |
| Vicker Hardness: | 700HV-900HV | Shape: | Solid Round Ball |
| High Light: | B100 Ceramic Beads,Sandblasting Ceramic Beads,Sandblasting ceramic beads bulk |
||
Product Description

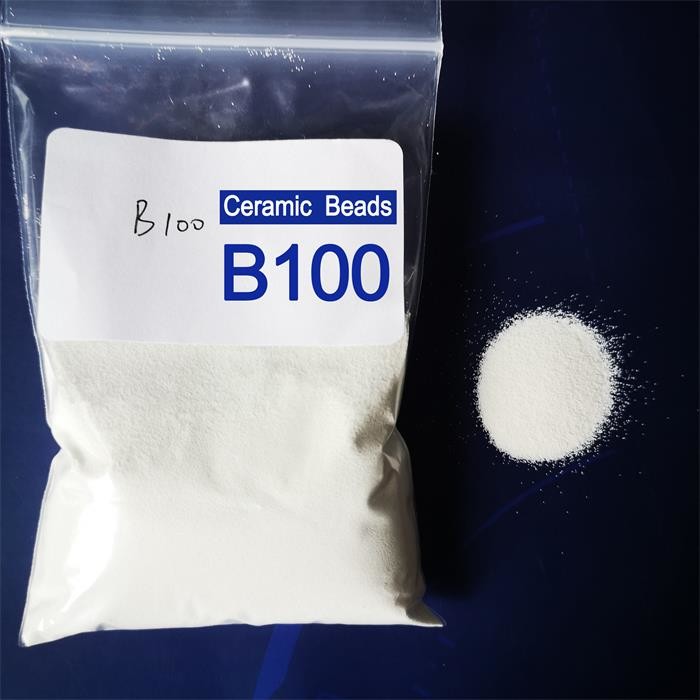

Ceramic beads B100 size 106-180 μm for sandblasting matte finish of notebook computer
DESCRIPTION
Ceramic Beads are a zirconia based spherical blasting media, with ZrO2 about 60-62%, SiO2 25-30%. It is produced by electrofusion at a temperature of above 2000°C.
Ceramic beads are of good toughness, good wear resistance and impact resistance, which ensures consistent surface finishes.
There are B series ceramic beads blasting media with sizes from B20 to B505.
And Z series ceramic beads shot peening media with sizes from Z100 to Z850.
B series can be usded as a sandblasting media in sandblasting machine for finishing, deburring, cleaning and descaling ferrous and non-ferrous parts.
Z series can be used as shot peening media in shot peening machines for metal parts strengthen and cleaning.
It is new environment friendly sandblasting material replace of glass beads because of no dust pollution and excellent performance in matte sandblasting finish.
SPECIFICATION
| Technical Data | |||
| Components | Content | CAS No. | EC No. |
| ZrO2 (Zirconium dioxide) | 60-68% | 1314-23-4 | 215-227-2 |
| SiO2 (Silicon dioxide) | 25-30 | 60676-86-0 | 262-373-8 |
| Al2O3 (Aluminum oxide ) | 7-13% | 1344-28-1 | 215-691-6 |
| Manufacturing Method | Melting in above 2000℃ furnace | ||
| True Density | 3.85 g/cm3 | ||
| Bulk Density | 2.3g/cm3 | ||
| Vicker Hardness | 700HV | ||

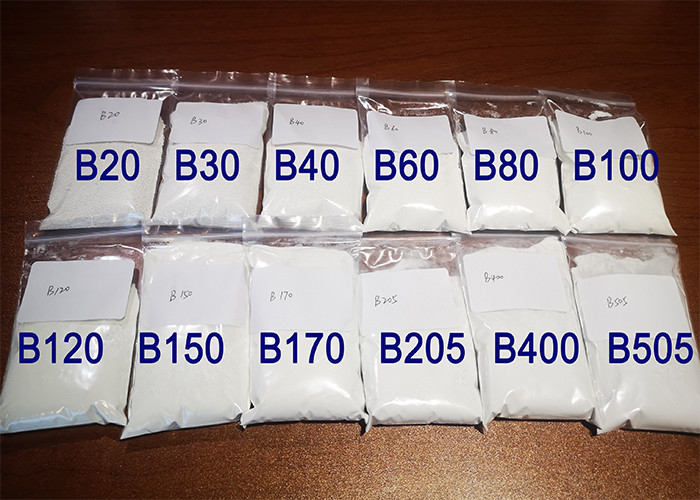

| Sizes for Sand Blasting | |||
| Bead Size | Size range | Bead Size | Size range |
| B20 | 0.600-0.850 mm | B120 | 0.063-0.125 mm |
| B30 | 0.425-0.600 mm | B125 | 0.000-0.125 mm |
| B40 | 0.250-0.425 mm | B170 | 0.045-0.090 mm |
| B60 | 0.150-0.300 mm | B205 | 0.000-0.063 mm |
| B80 | 0.125-0.212 mm | B400 | 0.030-0.063 mm |
| B100 | 0.106-0.180 mm | B505 | 0.000-0.030 mm |
| Sizes for Shot Peening | |||
| Z850 | 0.85-1.18 mm | Z210 | 0.21-0.30 mm |
| Z600 | 0.60-0.85 mm | Z150 | 0.15-0.21 mm |
| Z425 | 0.425-0.60 mm | Z100 | 0.10-0.15 mm |
| Z300 | 0.30-0.425 mm | ||
APPLICATION
Ceramic sand B100 is often used for sandblasting the body of notebook computers.
At the same time, B120, B170 and B250 also the widely choosed sizes.
Notebook computers are generally made of aviation-grade aluminum alloy. Ceramic sand is smooth and elastic. Ceramic sand is used as the sandblasting medium. The fine sandblasting brings a more advanced matte texture. The metal sandblasting process makes the whole body feel more comfortable.
APPLICABLE EQUIPMENT
Automatic sandblasting machine
The automatic sandblasting machine is suitable for the processing of flat plates, discs, profiles and other heterosexual workpieces. Such as stainless steel plates, aluminum plates, laptop computers, non-stick pans, bakeware, aluminum profiles, etc.
PACKAGES
Package 1: 12.5kgs barrels+Paper carton+Pallet
500-1000kgs /pallet
Package2: 25kgs barrels+Pallet
500kgs per pallet
