95 YTZP Yttrium Stabilized Zirconia Grinding Balls Size 6.5mm

Minimum Order Quantity : 25kgs Price : Negotiation
Packaging Details : 25kgs barrels+Pallet Delivery Time : 2-20 days
Supply Ability : 3000mt per year
Place of Origin: Shanxi, China Brand Name: Zirnano
Certification: ISO9001, IS014001 Model Number: 0.1mm-60mm

Detail Information

Commodity Name: Zirconia Beads Grinding Media Color: White
Shape: Sphere Bulk Density: 3.7g/cm3
True Density: 6.0g/cm3 Harness: 1100HV
Impact Strength: 2.0KN Abrasion Loss: 0.5ppm/h
Package: 25kgs Barrels+Pallet Port Of Loading: Tianjin/Qingdao, China
High Light:

95 YTZP Zirconia Grinding Balls

,

6.5mm Zirconia Grinding Balls

,

95 YTZP zirconia grinding media

Product Description

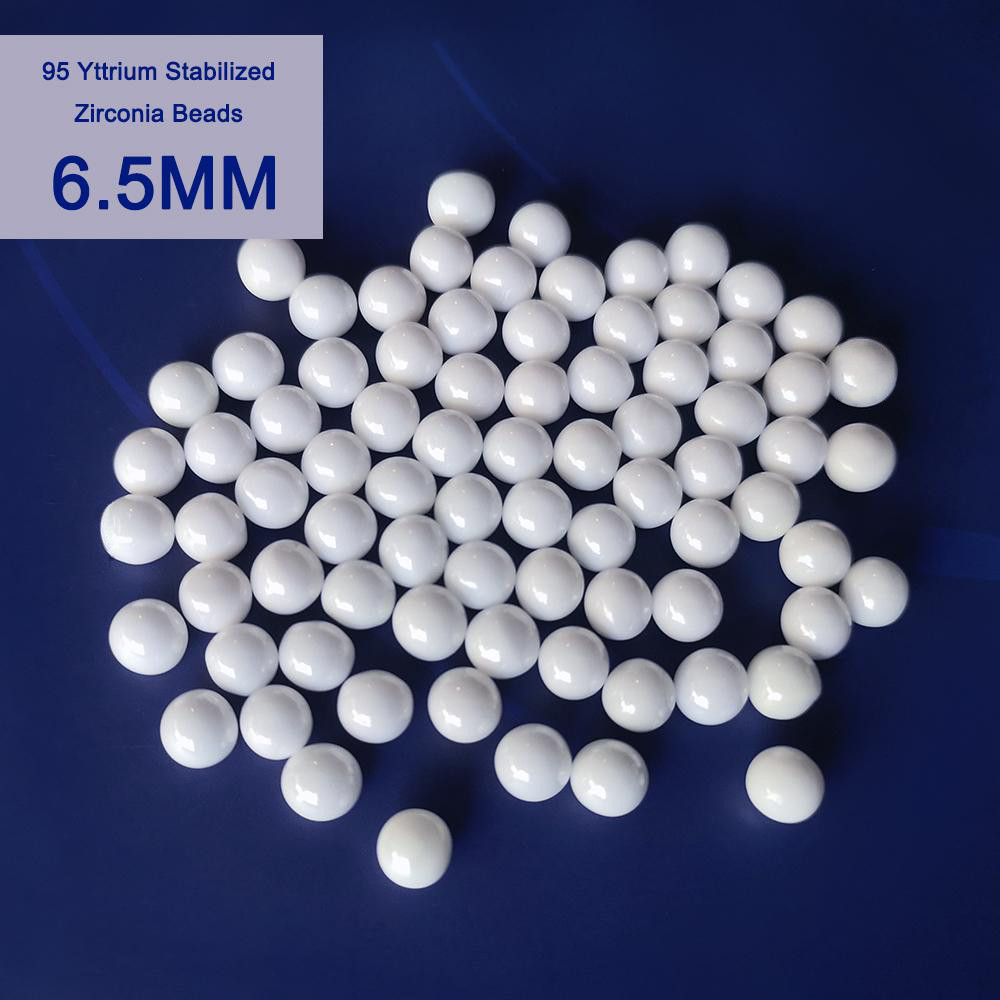

95 YTZP Yttrium stabilized Zirconia Grinding Balls Size 6.5mm



DESCRIPTION



95 Yttrium stabilized zirconia balls , called YTZP for short, or ZY6.0, id made of nano-sized zirconia powder (produced by hydrothermal method), using yttrium oxide as a stabilizer, pressurized rolling molding, high-temperature sintering and sintering.
It is a high-quality grinding media, mainly used in horizontal sand mills, vertical sand mills, etc.



SPECIFICATION





Manufacturing process: Sintering Method



ZrO2 Y2O3 Other
95% Min. 4.5% Min. 0.5% Max.



Color Bulk Density True Specific Density Vickers Hardness
White 3.7g/cm3 6.0g/cm3 1100 HV



Size Φ mm



0.1-0.2 0.2-0.3 0.3-0.4 0.4-0.6 0.6-0.8 0.8-1.0
1.0-1.2 1.2-1.4 1.4-1.6 1.6-1.8 1.8-2.0 2.0-2.2
2.2-2.4 2.4-2.6 2.6-2.8 2.8-3.0 4 5
6 7 8 10 12 15
17 20 25 30 40 50

Special specifications can be customized.

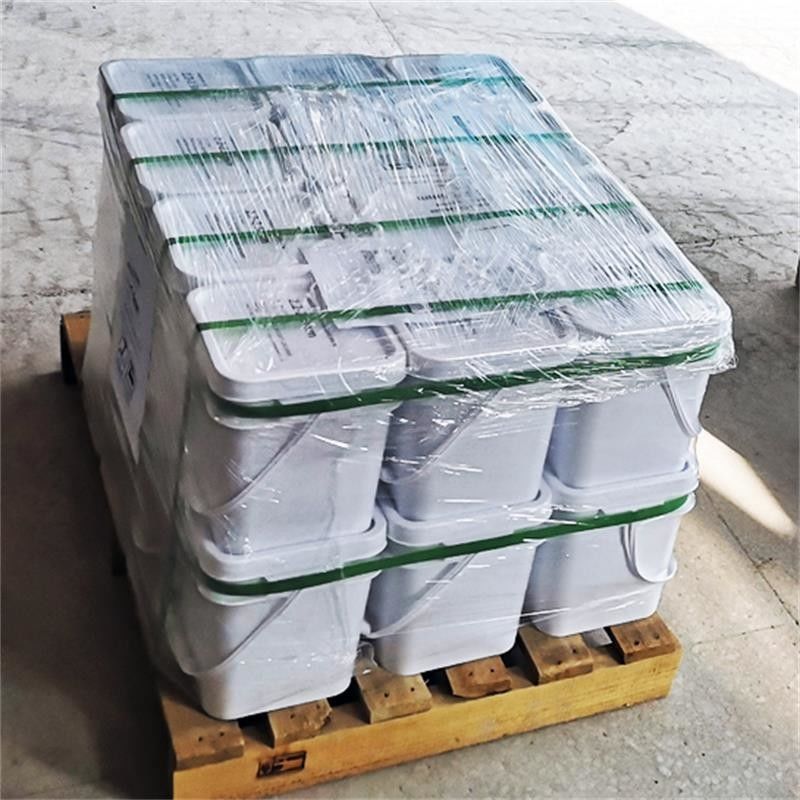

PACKAGE



Package:  25kgs barrels+Pallet

Delivery:   Usually 2-5 working days after order confirmed



95 YTZP Yttrium Stabilized Zirconia Grinding Balls Size 6.5mm 0





FEATURE





1. High grinding efficiency
Due to the high specific gravity of the product, strong impact energy, higher speed and flow, the grinding time is saved and the grinding efficiency of the product is greatly improved.
2. Good toughness, not easy to wear

Suitable for grinding and dispersing materials with high hardness and high solid phase.
3. Many particle sizes and wide application fields.

The particle size ranges from 0.2-0.3mm to 30mm, suitable for rough grinding and superfine grinding. Application cover paints, coatings, pigments and dyes, inks, ceramics, magnetic industries, cosmetics, lithium battery industries, various mineral grinding, etc.





APPLICATION



1. Pigments, dyes, paints, coatings, inks, etc.
2. Magnetic materials and electronic pastes.
3. Medicine, food, cosmetics.
4. Electronic ceramics
5. New energy lithium battery industry
6. Non-metallic minerals



95 YTZP Yttrium Stabilized Zirconia Grinding Balls Size 6.5mm 1

Zirconia balls can be used as grinding and dispersing media in stirring mills, sand mills, and ball mills.
