YTZP Yttria Stabilised Zirconia Grinding Media Ball Size 15mm
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, IS014001 |
| Model Number: | 0.1mm-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kgs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kgs barrels+Pallet |
| Delivery Time: | 5-20 days |
| Supply Ability: | 500mt per year |
|
Detail Information |
|||
| Commodity Name: | Zirconia Milling Beads | Color: | Shiny White |
|---|---|---|---|
| Shape: | Sphere | Bulk Density: | 3.7g/cm3 |
| True Density: | 6.0g/cm3 | Harness: | 1100HV |
| Impact Strength: | 2.0KN | Abrasion Loss: | 0.5ppm/h |
| Chemical Index: | ZrO2 95%Min., Y2O3 4.5%Min. | Port Of Loading: | Tianjin/Qingdao, China |
| Package: | 25kgs Barrels+Pallet | Application: | Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc |
| High Light: | Yttria Stabilised Zirconia Grinding Media,15mm Zirconia Grinding Media,15mm Zirconia Grinding Media |
||
Product Description

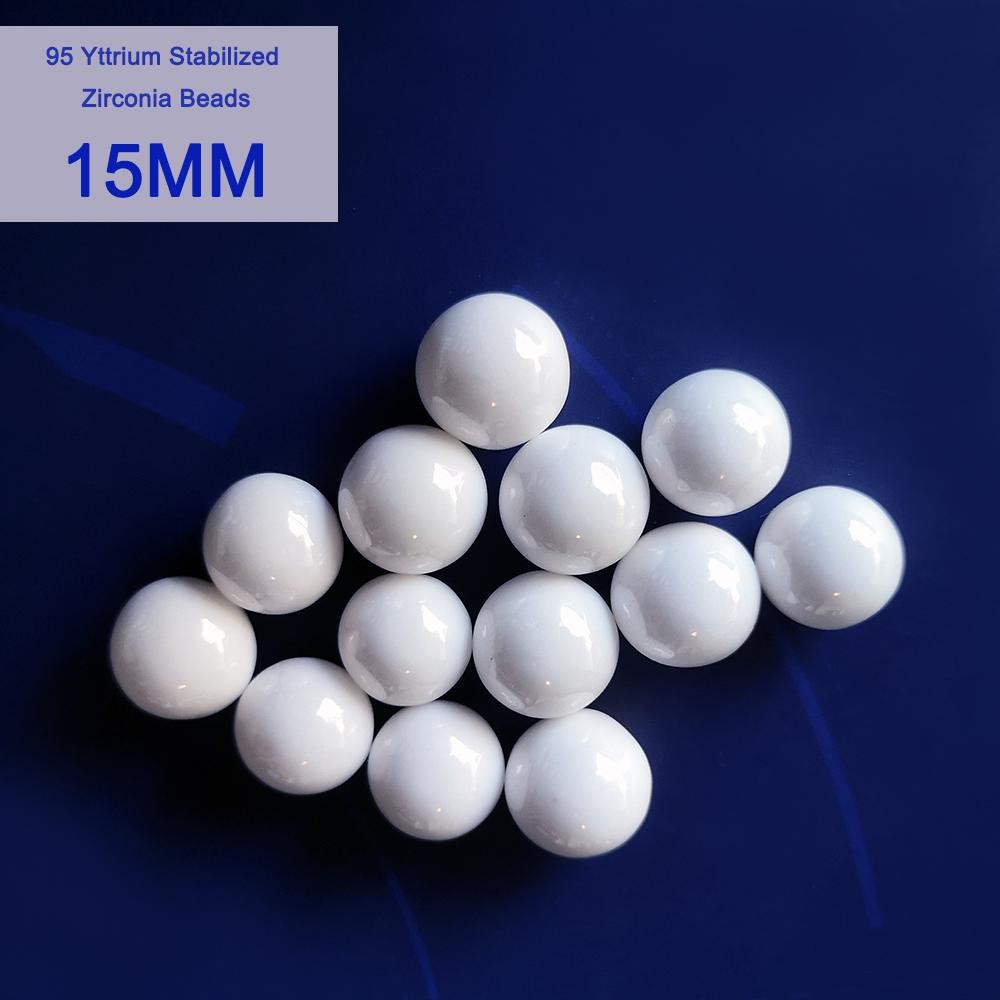

YTZP Yttria stabilized zirconia grinding media ball size 15mm
DESCRIPTION
YTZP yttrium stabilized zirconia beads, also called ceramic grinding beads, are produced by sintering process with micron and sub-nano zirconia as raw materials, with a small amount of yttrium oxide as a stabilizer.
With excellent wear resistance and good corrosion resistance. This high-density bead is used to achieve maximum grinding effect with minimum product contamination rate.
It is suitable for ultra-fine grinding and dispersion of high viscosity, high hardness, zero pollutant materials.
SPECIFICATION
Manufacturing process: Sintering Method
| Property | Unit | Parameter |
| Index | Wt% | 94.8%ZrO2, 5.2%Y2O3 |
| Bulk Density | Kg/l | 3.7(φ5mm) |
| Density | g/cm3 | 6.00-6.08 |
| Hardness | (HV) | >1200 |
| Modulus of Elasticity | GPa | 200 |
| Thermal Conductivity | W/m.k | 3 |
| Thermal Expansion Coefficient | 10*10-6/℃(20-400) | 9.6 |
| Compressive strength | KN | 2300KN (Φ2.0mm) |
| Crystal size | μm | ≤0.5 |
| SIZES Φ MM | ||||
| 0.1-0.2 | 0.2-0.3 | 0.3-0.4 | 0.4-0.6 | 0.6-0.8 |
| 0.8-1.0 | 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 |
| 1.8-2.0 | 2.0-2.2 | 2.2-2.4 | 2.4-2.6 | 2.6-2.8 |
| 2.8-3.0 | 4,5,6,7,8,9,10,12,15,17,20,25,30,40,50 | |||
FEATURE
1. High grinding efficiency:
The specific gravity of YTZP yttrium stabilized zirconia beads is 1.6 times that of ordinary zirconia beads, and it has higher grinding efficiency under the same conditions.
2. Less wear on the sand mill:
The product has good roundness and smooth surface, and the wear on the equipment is lower than other grinding media.
3. Low abrasion: YTZP zirconia beads have good toughness and will not crack in high-speed and high-concentration machines. The abrasion is only 2/1 of that of zirconium silicate beads.
APPLICATION
- 1. Special zirconium beads for new energy lithium batteries:
- Lithium iron phosphate, lithium titanate, graphite, silicon carbon, graphene, carbon nanotubes, alumina ceramic diaphragms, etc.
- 2. Digital inkjet ink:
- Thermal transfer ink, solvent ink, eco-solvent ink, digital printing paint ink, digital printing disperse dye ink, pigment ink, LED-UV special curing ink, water-based universal pigment ink, coating ink, printing Ink, pen ink.
- 3. Zirconium beads for coatings, inks and dyes:
- Automotive paint, wood paint, anticorrosive paint, resin, offset printing ink, UV ink, gravure ink, water-based ink, water-based varnish, UV varnish, disperse dyes, fluorescent dyes, metallic pigments, Titanium dioxide and so on.
- 4.Special zirconium beads for ceramic inks and glazes:
- Ceramic inks, glass pigments, ceramic glaze pigments, wrapping pigments, low-temperature on-glaze pigments, high-temperature fast-fired mid-glaze pigments, metallic luster pigments, glass pigments, etc.
- 5. Special zirconium beads for electronic materials and magnetic materials:
- Soft magnetic, permanent magnet, conductive ink, silver paste, rare earth metals, target materials, graphene conductive agent, electronic insulator materials, piezoelectric materials, ceramic capacitor materials.
- 6. Special zirconium beads for agrochemicals:
- Agrochemical suspending agent
- 7. Zirconium beads for food:
- Chocolate grinding
- 8. Special zirconium beads for cosmetics and medicine:
- Paste cosmetics, nano-level medical powder
- 9. Zirconium beads for papermaking:
- Ground heavy calcium carbonate
APPLICABLE EQUIPMENT
YTZP zirconia beads are suitable for vertical sand mills, horizontal sand mills, mixers, ball mills and basket sand mills.
