• B170 Size 0.045-0.090mm Ceramic Blasting Media For Alu Cases Sandblast Finishing
  • B170 Size 0.045-0.090mm Ceramic Blasting Media For Alu Cases Sandblast Finishing
B170 Size 0.045-0.090mm Ceramic Blasting Media For Alu Cases Sandblast Finishing

B170 Size 0.045-0.090mm Ceramic Blasting Media For Alu Cases Sandblast Finishing

Product Details:

Place of Origin: Shanxi, China
Brand Name: Zirnano
Certification: ISO9001, ISO14001
Model Number: B100

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation

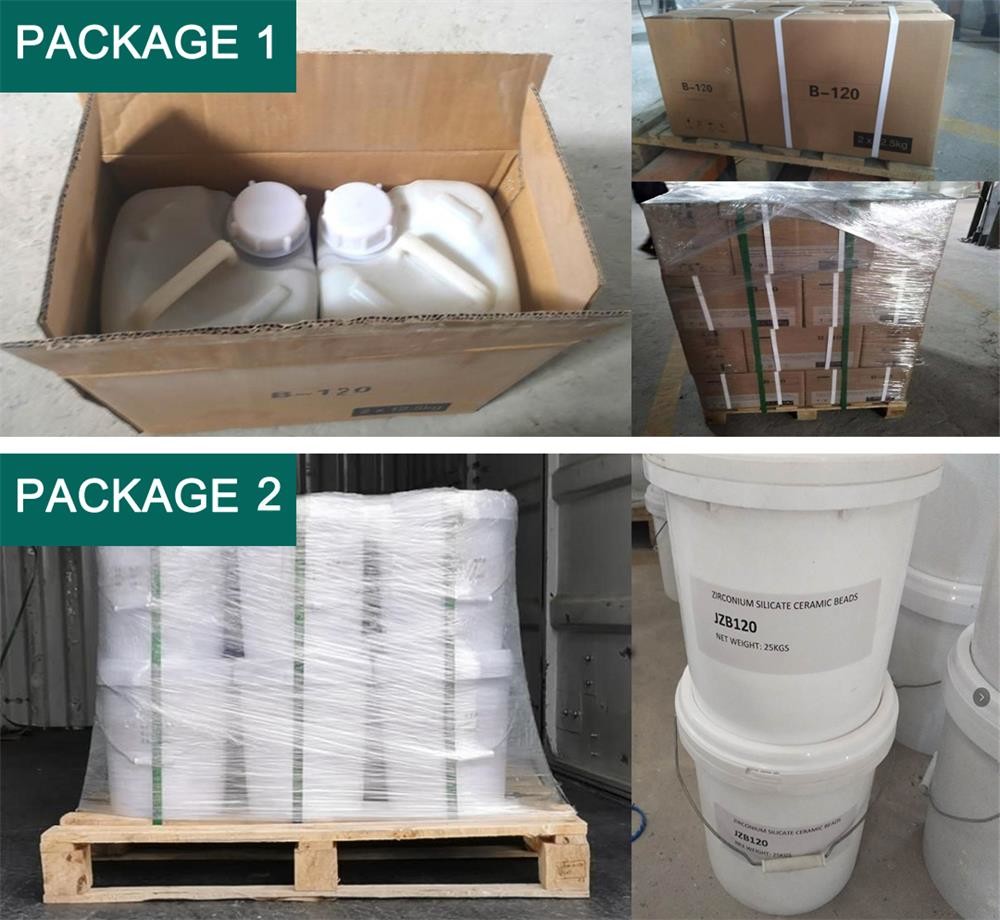

Packaging Details: 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet
Delivery Time: 5-10 days
Supply Ability: 1500mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Ceramic Beads Blasting Media Chemical Index: ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 25kgs Paper Cartons Or 25kgs Barrels +pallet
High Light:

B170 Ceramic Blasting Media

,

Alu Cases Ceramic Blasting Media

,

0.090mm ceramic bead abrasive

Product Description

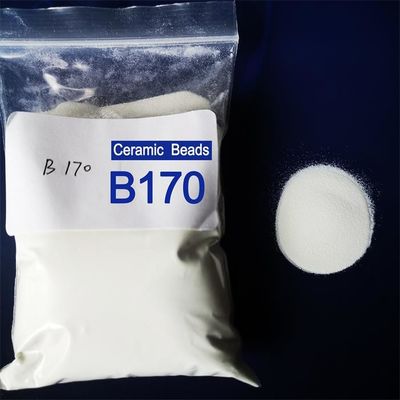

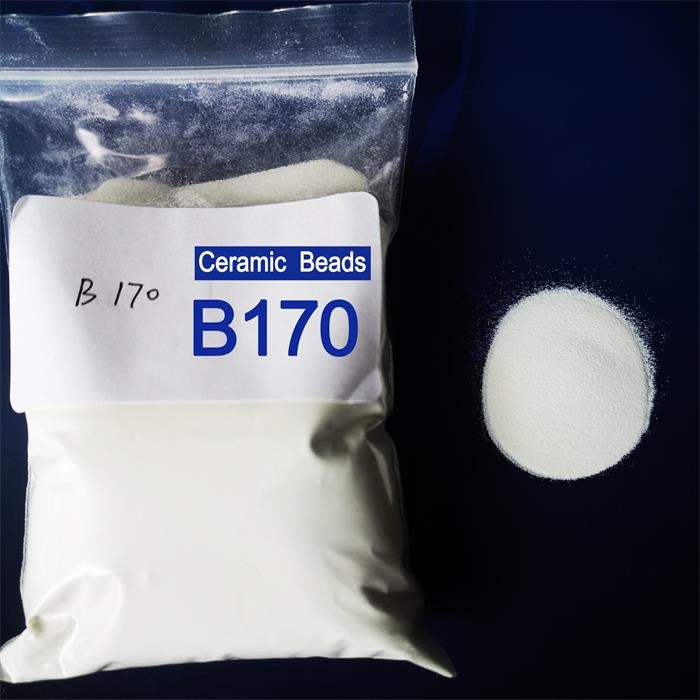

B170 Size 0.045-0.090mm Ceramic Blasting Media For Alu Cases Sandblast Finishing



  • DESCRIPTION



Ceramic blasting media is spherical beads made by the electric fusion of zirconia sand at above 2000 ℃ temperature .

Ceramic bead blasting is used for surface treatment cleaning and finishing on metallic parts surfaces, like descaling, derusting, deburing, and deflashing, to remove layers of foreign material from metallic substrates and excess surface material from machined or molded parts.

It is widely used for alu cases surface sandblasting.



  • SPECIFICATION

Manufacturing process: Melting method



ZrO2 SiO2 Al2O3 Other
60-66%, 25-30% max. 7-13% max. 5-8%



Color Bulk Density True Specific Density Vickers Hardness
White 2.3g/cm3 3.85g/cm3 700 HV

Sizes

B20 B30 B40 B60
600-850µm 425-6000µm 0250-425µm 125-250µm
B80 B120 B170 B205
180-250µm 63-125µm 45-90µm 0-63µm



Special sizes available against clients’ requirement.





  • PRODUCTION PROCESS



B170 Size 0.045-0.090mm Ceramic Blasting Media For Alu Cases Sandblast Finishing 0



  • FEATURES



(1) Surface treatment consistency

Consistency of metallic light, the blasting strength is as good as steel balls processing effect, much higher than the glass beads strength. And can achieve adequate metal depth.

(2) Environmental Friendly

Low crushing rate, no dust, uniform particle size, high wear resistance, re-elasticity, no hidden danger of silicosis, it is harmless to the human body.

(3) Low equipment loss

Ceramic sand has smooth surface, high sphericity, good elasticity and low wear, can protect the equipment, whether it is dry spray or wet spray.



  • APPLICATION



Alu and alu alloy cases- Sandblast finishing



Ceramic beads can be used as blasting media for alu cases and alu alloy cases.



Aluminum alloy can be sandblasted or oxidized after sandblasting. The effect after sandblasting and oxidation on the surface is very beautiful. And sandblasted will not stick fingerprints.



B170 Size 0.045-0.090mm Ceramic Blasting Media For Alu Cases Sandblast Finishing 1



  • APPLICABLE EQUIPMENT

Suitable sand blasting machine:

Manual sand blasting machine, Automatic sand blasting machine,

Open type series of sand blasting machine, and Blasting room series.
