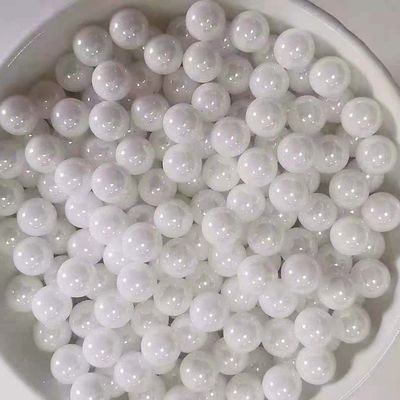

Yittrium Stabilized Zirconia Grinding Media Beads Density 6.0g/Cm3 Size 0.1-50mm
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, IS014001 |
| Model Number: | 0.1mm-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kgs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kgs barrels+Pallet |
| Delivery Time: | 5-20 days |
| Supply Ability: | 500mt per year |
|
Detail Information |
|||
| Commodity Name: | Zirconia Milling Beads | Color: | Shiny White |
|---|---|---|---|
| Shape: | Sphere | Bulk Density: | 3.7g/cm3 |
| True Density: | 6.0g/cm3 | Harness: | 1100HV |
| Impact Strength: | 2.0KN | Abrasion Loss: | 0.5ppm/h |
| Chemical Index: | ZrO2 95%Min., Y2O3 4.5%Min. | Port Of Loading: | Tianjin/Qingdao, China |
| Package: | 25kgs Barrels+Pallet | Application: | Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc |
| High Light: | Stabilized Zirconia Grinding Media,6.0g/Cm3 Zirconia Grinding Media,50mm ceramic grinding beads |
||
Product Description
Yittrium stabilized Zirconia Grinding Media beads density 6.0g/cm3 size 0.1-50mm
- DESCRIPTION
Zirconia beads are made of micron and sub-nano zirconia and yttrium oxide as raw materials. They are used for ultrafine grinding and dispersion of materials that require "zero pollution" and high viscosity and high hardness. Mainly used in the ultra-fine grinding and dispersion of materials that require "zero pollution" and high viscosity and high hardness, such as electronic ceramics, magnetic materials, zirconia, silicon oxide, zirconium silicate, titanium dioxide, medical food, pigments, dyes, Ink, special chemical industry.
- SPECIFICATION
Manufacturing process: Sintering Method
| Chemical composition | ZrO2 95% Min. Y2O3 4.5% Min |
| Density | 6.0g/cm³ Min. |
| Specific density | 3.7g/cm³ Min. |
| Moh's hardness | 9 |
| Impact Strength | 2.0KN (2mm) |
| Compressive Strength | 5500MPa |
| Modulus of Elasticity | 200Gpa |
| Thermal Expansion Coefficient | 9.6 (20-400℃ ) |
| Compressive strength | 2300KN (Φ2.0mm) |
| Package | 25kg/barrel |
| SIZES Φ MM | ||||
| 0.1-0.2 | 0.2-0.3 | 0.3-0.4 | 0.4-0.6 | 0.6-0.8 |
| 0.8-1.0 | 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 |
| 1.8-2.0 | 2.0-2.2 | 2.2-2.4 | 2.4-2.6 | 2.6-2.8 |
| 2.8-3.0 | 4,5,6,7,8,9,10,12,15,17,20,25,30,40,50 | |||
- APPLICATION
Widely used for Grinding / dispersing for pigments and dyes .
The use of 95 zirconia beads can make the water-based ink particles fine and uniform in particle size distribution.
Such pigments can achieve a better dispersion effect.
- APPLICABLE EQUIPMENT
- Pin-type grinder
- It strengthens the impact and shearing effect of the zirconia beads on the material, and improves the dispersion and grinding effect;
High filling rate of grinding zirconium beads and higher grinding efficiency;
Imported mechanical sealing technology, tightly sealed, no leakage;
Suitable for continuous production or mass production, easy to change color and easy to clean;
Our Services
1. One of TOP 10 Zirconia milling media manufacturers in China, ISO 14001, ISO9001 Certificated factory.
2. Treat all clients with sincerity, no imaginary higher price.
Even if you’re the first time to buy and know little about the Zirconia grinding beads, you can get the same price as the experienced clients.
3. Full range of Zirconia beads products: all sizes and all kinds of ceramic grinding beads, adapted to various working conditions.
4. Strict Quality Control: Quality inspection is carried out in every step of our production, before entering warehouse and before loading. SGS third party inspection is available.
5. Free Sample Service: In order to help clients know more about our Zirconia milling media before placing orders, 200g free sample is available for clients to test.
6. Customized/OEM available, size, shape, Packages could be made against customer’s requirements.
If you're looking for zirconia grinding beads, contact us to get more details and updated price.
Beside the Yittrium Zirconia beads, we also supply:
- Cerium stabilized zirconia grinding beads
- Zirconium silcate grinding beads
