60HRC Zirconia Ceramic Bead Blasting Media B20 B30 B40 B60 Uniform Surface Finish

Minimum Order Quantity : 100KGS Price : By negotation

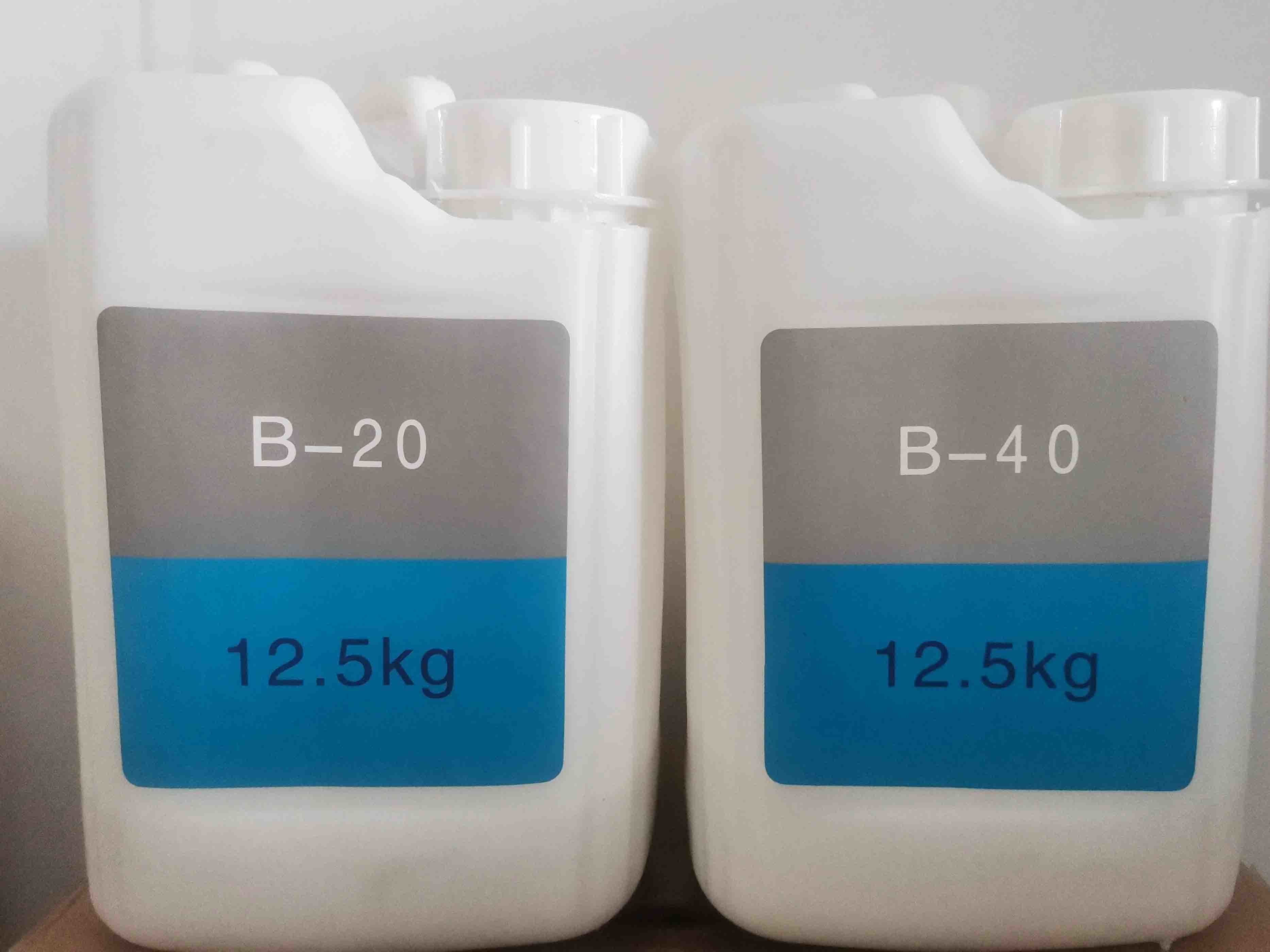

Packaging Details : 25kg barrel+ Pallet or 2*12.5kg barrel+Carton+Pallet Delivery Time : 3-5 days after order confirmed
Payment Terms : L/C, , D/P, T/T, Western Union, MoneyGram,Paypal Supply Ability : 3000 mts per year
Place of Origin: Shanxi Brand Name: Zirnano
Certification: ISO9001,IS014001,ROHS,SGS Model Number: B20-B505

Detail Information

Commodity: Ceramic Bead Blasting Product Name: Ceramic Beads,Zirconia Sand,Ceramic Blasting Media
Shape: Spherical Color: White
Material: ZrO2 60-66%,SiO2 25-30%,Al2O3 7-13% Hardness: 700HV Min
Bulk Density: 2.3g/cm3 True Gravity: 3.85g/cm3
Size: B20-B505 Loading Port: Xingang,China Or Any China Main Port
High Light:

Zirconia Ceramic Bead Blasting Media


B20 Ceramic Bead Blasting Media


B30 Ceramic Bead Blasting Media

Product Description

60HRC Zirconia Ceramic Bead Blasting Media B20 B30 B40 B60 for Uniform Surface Finish


1. Product Description of Ceramic Beads

Ceramic beads is also called as zirconia sand,it selects the high quality imported zircon sand as main

material,then fused in arc furnace under high temperature over 2000 degrees,then made into different

microbeads by special technology.


Ceramic beads has wide particle size from the coarsest B20(0.600-0.850mm)to the  fine size  B505

(0.010-0.030mm),it can match all blasting machines.


Compared with glass beads,ceramic beads is one clean blasting media,which will generate little dust in

whole blasting process,its service life also will be prolonged 20-30 times.


2. Main Technical Data of Ceramic Beads Blasting Media

Commodity Chemical name CAS No. Content (%)

Ceramic Bead

Blasting Media

Zirconium Dioxide (ZrO 2 ) 1314-23-4 60-66%
Silica glass (SiO2 ) 7631-86-9 25-30%
Alumina (Al 2 O 3 ) 1344-28-1 7-13%


Physical Index Vickers Hardness ≥700HV
Rockwell Hardness ≥60HRC
Bulk Density ≥2.3g/cm3
True Gravity ≥3.85g/cm3
Specification B20: 0.600-0.850mm B120:0.063-0.125mm
B30:0.425-0.600mm B150:0.000-0.125mm
B40:0.250-0.425mm B170:0.045-0.090mm
B60:0.150-0.300mm B205:0.000-0.063mm
B80:0.125-0.212mm B400:0.030-0.063mm
B100:0.106-0.180mm B505:0.010-0.030mm
Remark:Specifical Specification can be customized


3. Main Application of Ceramic Beads

Metal Surface Finish for 3C products,its built-in parts as well as its accessories;

Surface finish for mould of glass-bottles,tire moulds,die casting...

Surface preparation before Electroplating &anodizing...

Deburring for electronic products...

Surface strengthen for metal products...


4. Applicable Sandblasting Equipments

Compressed air (dry and wet) Blasting Machine

Airless Blasting Machine

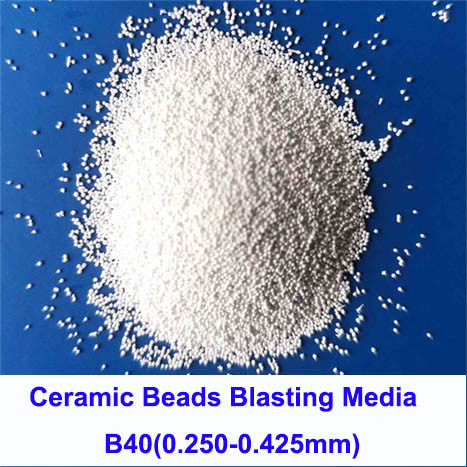

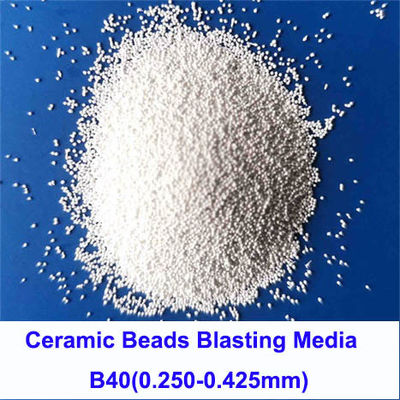

5. Blasting Effect by Ceramic Beads Blasting Media B40

60HRC Zirconia Ceramic Bead Blasting Media B20 B30 B40 B60 Uniform Surface Finish 0


6. Why Choose us?

Professional manufacturer of ceramic beads,annual output over 3000mts;


Strict quality control system from the very beginning of raw material to the final finished product;


All the beads will be sampled again before delivery even for one small sample;


Stable supplier of Foxconn,Samsung Electronics...


Products has been exported to South Korea,Japan,Vietnam,USA,Canada,Italy,Poland,UK,Ireland,

Australia,Signapore,Malaysia, Philippines, Indonesia...


Prompt reply,quick delivery and flexible cooperation method...
