Zirconium Oxide Ceramic Bead Blasting Media JZB60 For Aluminium Parts

Zirconium Oxide Ceramic Bead Blasting Media JZB60 For Aluminium Parts

Product Details:

Place of Origin: CHINA
Brand Name: Zirnano
Certification: ISO9001,ISO14001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100kgs
Price: Negotiable
Delivery Time: 3-7 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000mts per year
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Blasting Media Product Name: Ceramic Beads,Ceramic Micro-beads
Color: White Shape: Round
Main Chemical: ZrO2 60-66%,Al2O3 7-13%,SiO2 25-30% Usage: Blasting Media
Hardness: ≥700HV Bulk Density: 2.3g/cm3
High Light:

Zirconium Oxide Ceramic Bead Blasting


Aluminium Parts Ceramic Bead Blasting


Shot Peening Ceramic Bead Blasting

Product Description

Zirconium Oxide Ceramic Bead Blasting Media B60 B120 B170 B205 B400 for Aluminium Parts


1. Product Description of Ceramic Bead Blasting

Ceramic bead is one clean and high efficient blasting media,It selects the high quality zircon sand as main

raw material,then fused in high temperture over 2000 degrees,finally made into different

Mircobeads through special technology,it has wide particle size distribution,which can match most blasting



Compared with glass beads,ceramic beads has higher density,lower break-down rate,it will provide one

clean and bright blasting working condition,save the refuel time,then finally improve the blasting efficiency

and blasting cost.


It can replace glass beads where one clean working condition is required.


2. Main Technical Data

Commodity Main Chemical Index Main Physical Index

Ceramic Bead Blasting
ZrO2 60-66% Bulk Density: 2.3g/cm3
SiO2 25-30% True Specific Gravity: 3.85 g/cm3
Particle Size Most Popular Size B40: 0.250-0.425mm

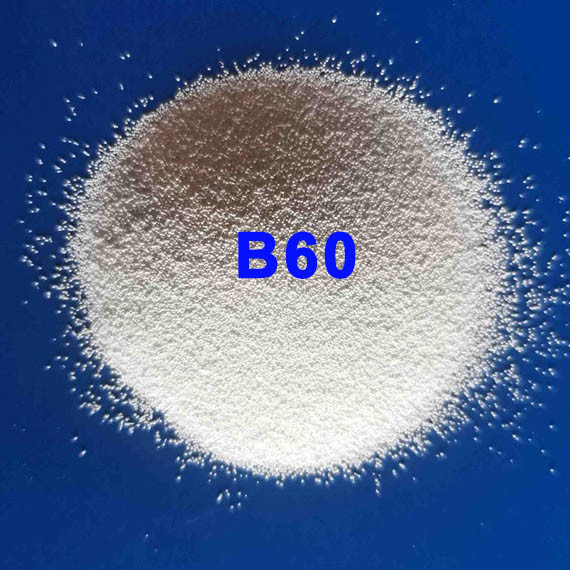

B60: 0.150-0.300mm
B120: 0.063-0.125mm
B170: 0.045-0.090mm
B205: 0.000-0.063mm
B400: 0.030-0.063mm
Common Size B20: 0.600-0.850mm
B30: 0.425-0.600mm
B80: 0.125-0.212mm
B100: 0.106-0.180mm
B505: 0.010-0.030mm
Remark: Special specification can be customized


3. Main Applications

B20, B30:Metal Surfce Shot Peening

B40:Mold cleaning for glass bottle etc.

B60: Sandblasting for inner and outer wall of precision steel pipes, stainless steel outdoor fitness equipments...

B100:Metal Finish for Titanium bicycle frame etc.

B120: Metal Finish for Golf and artifical joint,rubber products,computer plastic cladding...

B170: Surface finish for 3C products,its built-in parts as well as accessories...

B205:Metal finish for Finishing gear...

Zirconium Oxide Ceramic Bead Blasting Media JZB60 For Aluminium Parts 0

4. How to choose the right specification of ceramic beads?

Ceramic beads can replace glass beads in blasting process for plastic parts and most metal parts,when you

are going to use ceramic beads as blasting media,suggest to choose one more coarse size compared with

glass beads,for example,if you use glass beads 80#,then you can choose ceramic beads B60 since ceramic

beads has higher density and hardness,it can achieve the same blasting effect


5. Why Ceramic Beads is one high efficiency blasting media?

Ceramic beads has tiny ZrO2 microstructure,whose diameter is generally 1-2 Mircon,in tile shape and distributed

on the substrate of SiO,then it has very good wear-resistance and high-impact resistance,also ensures its hardness

and strength,that is why ceramic beads has good wear-resistance and high efficiency compared with other blasting


6. Precautions for using Ceramic Beads:

When using ceramic beads for the first time, please kindly open 1/3 to 1/2 vest of dust collector,since ceramic beads

need the wind to be recycled in the blasting process.Please kindly note that it can be multiple recycled. The service

life of ceramic beads is about 20-30 times than the one of glass beads.

Ceramic beads should be stored in a dry and ventilated room, also please wear one mask when using it.

Waste ceramic sand should be disposed correctly in accordance with local solid waste disposal regulations.

7. How to place a order?

Please send us one email and kindly advise the quantity,specification of ceramic beads you need,then we will reply

you within 1 hours in working time with detail quotation,delivery time for your review. Order quantity less than 2000kgs

will be ready for delivery within 3 days after order confirmed,please contact us now!
