Automotive Parts B60 size 0.150-0.300 mm Ceramic Polishing Media

Minimum Order Quantity : 100KGS Price : Negotiable
Packaging Details : 25kg barrel+pallet or 2*12.5kg barrel+ paper carton box + pallet Delivery Time : 3-5 days after order confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 200mts per month
Place of Origin: China Brand Name: ZIRNANO
Certification: ISO9001,ISO14001 Model Number: B20-B505

Detail Information

Main Material: 60-66% ZrO2 Usage: Open Sandblasting Machine
Commodity: Ceramic Beads Product Name: Ceramic Blasting Media
Bulk Density: 2.3 G/cm3 True Gravity: 3.85 G/cm3
Vicker Hardness: 700HV Shape: Solid Round Ball
High Light:

700HV Ceramic Polishing Media


B60 Ceramic Polishing Media


Sandblasting Ceramic Beads

Product Description

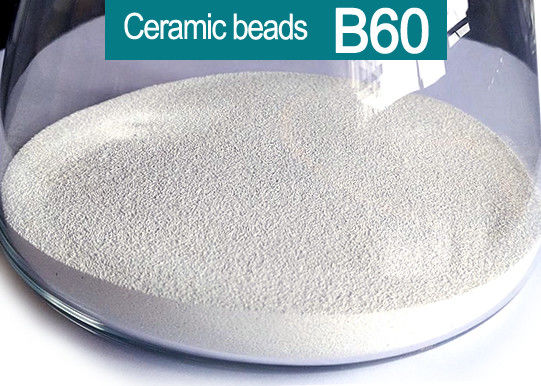

Size B60 Ceramic Bead blasting media for automotive parts surface treatment




Ceramic beads is a zirconia based material and with ZrO2 about 60-62%, SiO2 25-30%. The ZrO2 microstructure is very fine

and distributed on the SiO2 substrate in a tile shape, so it has good wear resistance and impact resistance, not easy to be broken to dusts.


It is new environment friendly sandblasting material replace of glass beads because of no dust pollution and excellent performance in matte sandblasting finish.


Widely used as a sandblasting media and perform efficiently in dry or wet blasting systems as well as in wheel turbine blasting equipment.




Chemical & Physical Index


Chemical Index Production Process True Density Bulk Density Hardness
Vickers Mohs Rockwell

ZrO2 : 60-66%

SiO2: 25-30%

Al2O3: 7-13%

Smelting 3.85 2.3 700HV 7 60HRC




B20: 0.600-0.850mm B80: 0.125-0.212mm B170: 0.045-0.090mm
B30: 0.425-0.600mm B100: 0.106-0.180mm B205:0.000-0.063mm
B40: 0.250-0.425mm B120: 0.063-0.125mm B400: 0.030-0.063mm
B60: 0.150-0.300mm B150: 0.053-0.106mm B505: 0.010-0.063mm


Features of Ceramic beads


  • 1. Consistency of spherical shape and sizes provides smooth sating surface finish and consistent results from the first part to the last.
  • 2.Outstanding elasticity provides a high impact force.
  • 3. High wear resistance, high impact resistance, and low dust.
  • 4. Cost-effective compared to glass beads, media consumption reduced up to 90% Vs glass Beads.


Parameters- (Comparing with glass beads and steel shot)


Parameters Ceramic Beads Glass Beads Steel Shot
Chemical index ZrO2+SiO2+Al2O3 SiO2+NaO2 C+Si+Mn+S+P
Vickers Hardness ≈700HV ≈560HV ≈700HV
Rockwell Hardness ≈60HRC ≈46HRC ≈60HRC
True Density 3.85g/cm3 2.6 g/cm3 7.8 g/cm3
Size range 0.04-0.85mm 0.045-0.85mm 0.05-0.60mm
Shape spherical spherical fillet
Dust Pollution Very little big medium
Metal Pollution no no spherical
Recycling times Multi-time 1-2 times Multi-time
Work life Long Low 1/25 of ceramic beads Long
Power consumption Low Low High
Equipment wear loss Low Low High
Sandblasting effect High finish, no discoloration High finish, whitish Low finish, darken


Applicable Equipment


Manual sandblasting machine, automatic sandblasting machine, open sandblasting machine & sandblasting room





25kgs /Barrel+Pallet or 12.5kgs/Barrel, 2 barrels / Paper carton+Pallet






Ceramic beads is widely used for sandblasting of automotive parts.


For example: Sandblasting of the surface of the steering knuckle of auto parts before anodized nickel plating.


Automotive Parts B60 size 0.150-0.300 mm Ceramic Polishing Media 0



Sandblasting plays a very important role in the surface treatment of auto parts. It can cut the roots of all the dirt on the surface of auto parts, to achieve the required roughness, and greatly improve the quality of auto parts, coatings and plating materials. The connection force may make the bonding of the bonding parts more stable and better.


To get more information about the ceramic beads blasting media, please contact us, to send message, chat on line, inquiry by email or call us...

All inquiries will be taken great attention and fast response within 0-12 hours.
