Product Details:

Place of Origin: Henan, China
Brand Name: ZHENGTONG
Certification: ISO9001, ISO14001
Model Number: F12#-F220#

Payment & Shipping Terms:

Minimum Order Quantity: 1 MT
Price: Negotiation
Packaging Details: 25kgs bags+Ton bag or pallet, 25mt/20'GP usually
Delivery Time: 8-30 days
Payment Terms: L/C, T/T
Supply Ability: 10000mt per year
Get Best Price Contact Now

Detail Information

Material: Aluminium Oxide Al2O3 Product Name: Brown Fused Alumina
Crystal Form: Trigonal Crystal Sytem Color: Brown
Hardness: Vickers Harness: 2100 HV Mohs: 9 Bulk Density: F12#-F220# 1.98-1.68g/cm3
True Specific: 3.97g/cm3 Package: 25kgs Bags +Ton Bag Or Pallet
Chemical Index: Al2O3 95%min. SiO2 1%max. Fe2O3 0.3%max. TiO2 2.0-2.8% Cao 0.45% Max. Usage: For Bonded Abrasives Like Cutting Discm Grinding Wheels, Etc.
Port Of Loading: Tianjin, China Sample: 1 Kg For Free
High Light:

Fused Aluminum Oxide Blast Media

,

AF120# Aluminum Oxide Blast Media

,

Galvanizing Aluminum Oxide Sand

Product Description

Brown aluminium oxide blasting media F12#-F220# for hot dip galvanizing pretreatment

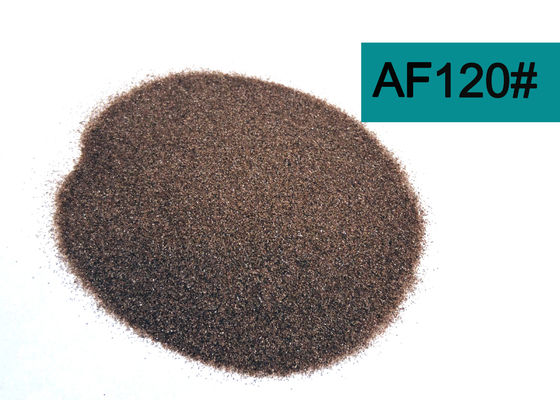

Galvanizing AF120# Fused Aluminum Oxide Blast Media 0

Brown aluminium oxide abrasive are usually used for sandblasting because of its angular shape, good hardness and good toughness. Its purpose is to make the workpiece have a certain bonding surface through brown aluminium oxide sandblasting.

Brown aluminium oxide sandblasting pretreatment is usually a very important step in the preparation of the coating. The surface quality of the processed workpiece will directly affect the bonding strength of the surface and the coating, thereby affecting its service life.

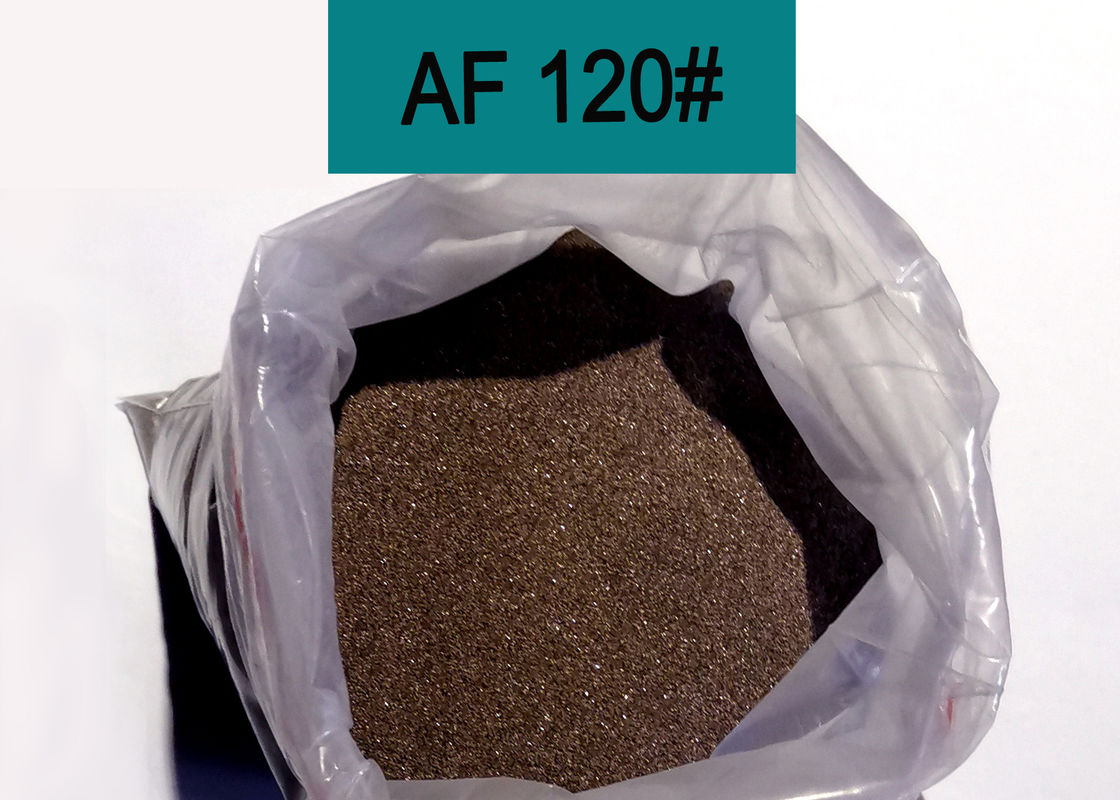

Galvanizing AF120# Fused Aluminum Oxide Blast Media 1

Application



Specification Chemical Index % Magnetic material%
Al2O3 Fe2O3 SiO2 TiO2
Bonded abrasives &sandblasting F 4#—80# ≥95.5 ≤0.2 ≤1.2 ≤3.0 ≤0.05
90#—150# ≥94.5       ≤0.03
180#—220# ≥93.5 ≤0.3 ≤1.5 ≤3.5 ≤0.02



Physical Index
Color Crystal Form True Specific Gravity Bulk Density Vickers Hardness Mohs Hardness
Brown Trigonal Crystal 3.97g/cm3 1.64-1.99g/cm3 2100kg /mm2 9



Galvanizing AF120# Fused Aluminum Oxide Blast Media 2

Galvanizing AF120# Fused Aluminum Oxide Blast Media 3



Galvanizing AF120# Fused Aluminum Oxide Blast Media 4

  • Hot dip galvanizing process pretreatment

The pretreatment of hot-dip galvanizing process adopts pickling and phosphating processes. There will be acid and alkali residues on the surface of the workpiece, making the hot-dip galvanizing layer easy to fall off. In the Zinc spray, aluminum spray process, the pretreatment adopts the sandblasting process with brown aluminium oxide abrasive media.

The Brown aluminium oxide grits are of angular shape, good hardness and good toughness.

After sandblasting, the surface of the workpiece is very clean and rough, with sa≥2.5, good coating adhesion, and tensile strength≥0.6kg/mm2.

After the surface is sprayed with zinc and aluminum, there will be no corrosion from the inside to the outside, so that the zinc layer will not fall off.





Galvanizing AF120# Fused Aluminum Oxide Blast Media 5







Galvanizing AF120# Fused Aluminum Oxide Blast Media 6



As sandblasting abrasive media



1. Less dust

Due to brown aluminum oxide’s relatively high specific gravity, it produces less dust during the sandblasting process. This ensures operator health and safety and improves operator visibility.



2. High efficiency

The brown aluminum oxide abrasive grits can quickly hit the surface of the object with sharp edges and corners, it is regarded as a very fast way of sandblasting.



3. High surface treatment quality

During the blasting process, brown aluminum oxide can penetrate deep into the caves and pits of the surface to reach the bare surface of the metal, so it can completely remove all rust, water-soluble salts and other pollutants.





Galvanizing AF120# Fused Aluminum Oxide Blast Media 7
