700HV Matte Effect Ceramic Bead Blasting Media B205 B400 B505
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||100KGS|
|Packaging Details:||25 kg barrel + Pallet|
|Delivery Time:||3-5 days after order confirmed|
|Payment Terms:||L/C, T/T|
|Supply Ability:||200mts per month|
|Commodity:||Ceramic Beads Blasting Media||Product Name:||Ceramic Beads|
|Usage:||Blasting Media||True Gravity:||3.85g/cm3|
|Vicker Hardness:||700HV Min||Buck Density:||2.2±0.1 G/cm3|
|Sphericity:||85%||Shape:||Solid Round Beads|
abrasive media blasting,
low dust blasting media
700HV Matte Effect Ceramic Bead Blasting Media B205 B400 B505 Surface Finish for Stainless Steel
1. Products Description of Ceramic Bead Blasting Media
Ceramic Beads is one clean and high efficient blasting media,it contains 60-66% ZrO2,25-30% SiO2 ,
7-13% Al2O3,having the characteristics of high hardness,high strength,good toughness,low break-down
rate,which is widely used for metal surface finish especially for inox(stainless steel) products.
2. Main Technical Data of Ceramic Beads
|Commodity||Chemical Index||Physical Index|
|ZrO2 60-66%||Bulk density:2.3g/cm3|
|SiO2 25-30%||True Gravity ≥3.85 g/cm3|
|Al2O3 7-13%||Vicker Hardness≥700 HV|

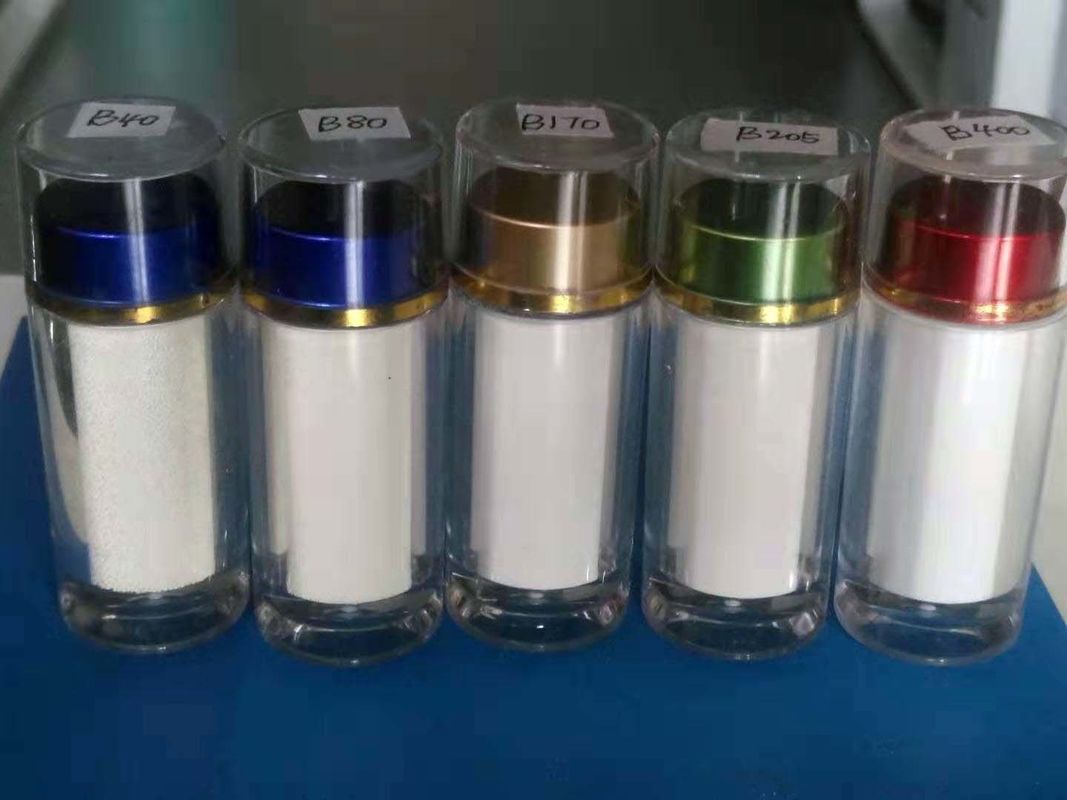

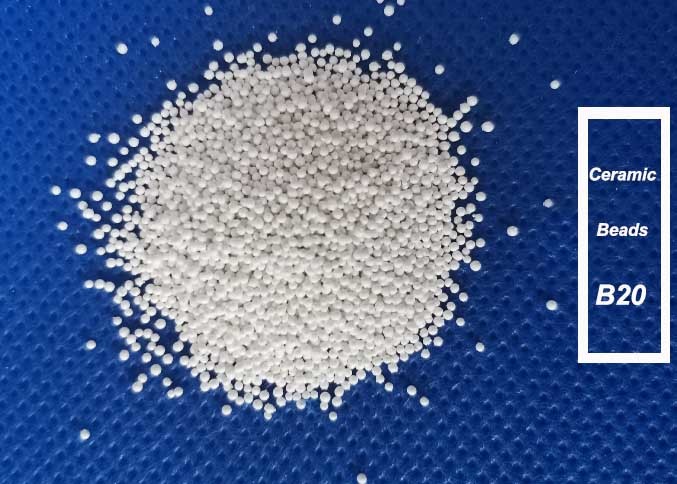

|Particle Size||B20:0.600-0.850mm||B120: 0.063-0.125mm|
|B30: 0.425-0.600mm||B150: 0.045-0.090mm|
|B40: 0.250-0.425mm||B170: 0.045-0.090mm|
|B60: 0.150-0.300mm||B205: 0.000-0.063mm|

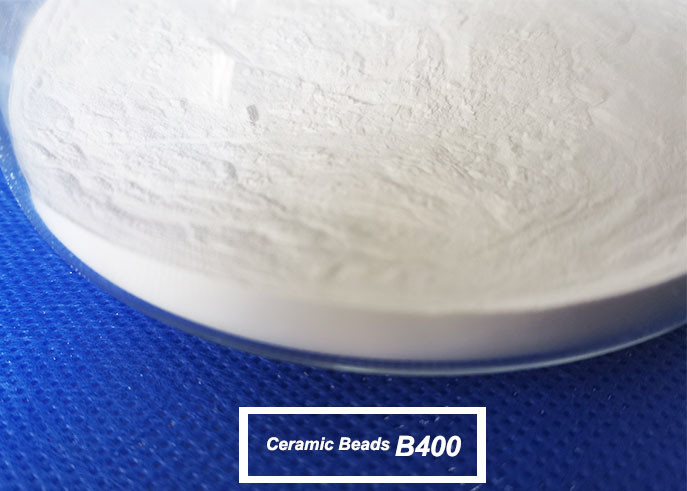

|B80: 0.125-0.212mm||B400: 0.030-0.063mm|
|B100: 0.106-0.180mm||B505: 0.010-0.030mm|
|Special specification can be customized|
3. Main Applications of Ceramic Bead Blasting Media
Metal surface finish for 3C products such as computer,mobile phone,camera as well as its accessories such
as power bank,USB,Bluetooth earphone etc.;
Surface pretreatment before electroplating or anodizing;
Surface cleaning for glass bottle molds,rubber molds.plastic molds etc.;
Deburring for Electronic Components such as circuit board etc.;
Descaling or rust removal for mechnical parts such as die casting,heat treated workpieces etc.;
Surface finish for light alloy products such as medical instruments,sport equipments etc..
4. How to choose the high quality ceramic beads?
Firstly,good ceramic beads has uniform shape and good sphericity of 85% ;
Secondly,good ceramic beads has higher whiteness and cleanliness;
Thirdly, good ceramic beads also has lower breakdown rate.
5. Standard packages:
25KG(12L) Barrel + Pallet
2*12.5KG Barrel+ Carton + Pallet
25KG (12L) Barrel+ Wooden box or 2*12.5KG Barrel+ Carton+Pallet.
6. Why Choose us?
Professional manufacturer of ceramic beads,annual output over 2000mts;
Advanced production line and stricter quality assurance system, all step is traceable in the raw material to
the final products;
Immediately reply,Fast delivery,flexible cooperation method;
Stable supplier of Foxconn,Samsung Electronics, Ujiden etc..
