95 Yttrium Stabilized Zirconia Bead Zirconium Oxide Milling Media 1.4-1.6mm For Ultra Fine Materials
Product Details:
| Place of Origin: | China |
| Brand Name: | Zirnano |
| Certification: | ISO9001,ISO14001 |
| Model Number: | 0.2-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg barrel + Pallet |
| Delivery Time: | Within 1-3 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200mt |
|
Detail Information |
|||
| Commodity: | 95 Yttrium Stabilized Zirconia Bead | Product Name: | 95 Zirconia Beads |
|---|---|---|---|
| Application: | Milling Media | Process: | Sintering |
| Shape: | Round Solid Ball | Bulk Density: | 3.7g/cm3 |
| True Gravity: | ≥6.0g/cm3 | Vicker Hardness: | ≥1100 HV |
| High Light: | zirconium oxide beads,zirconia ceramic balls |
||
Product Description

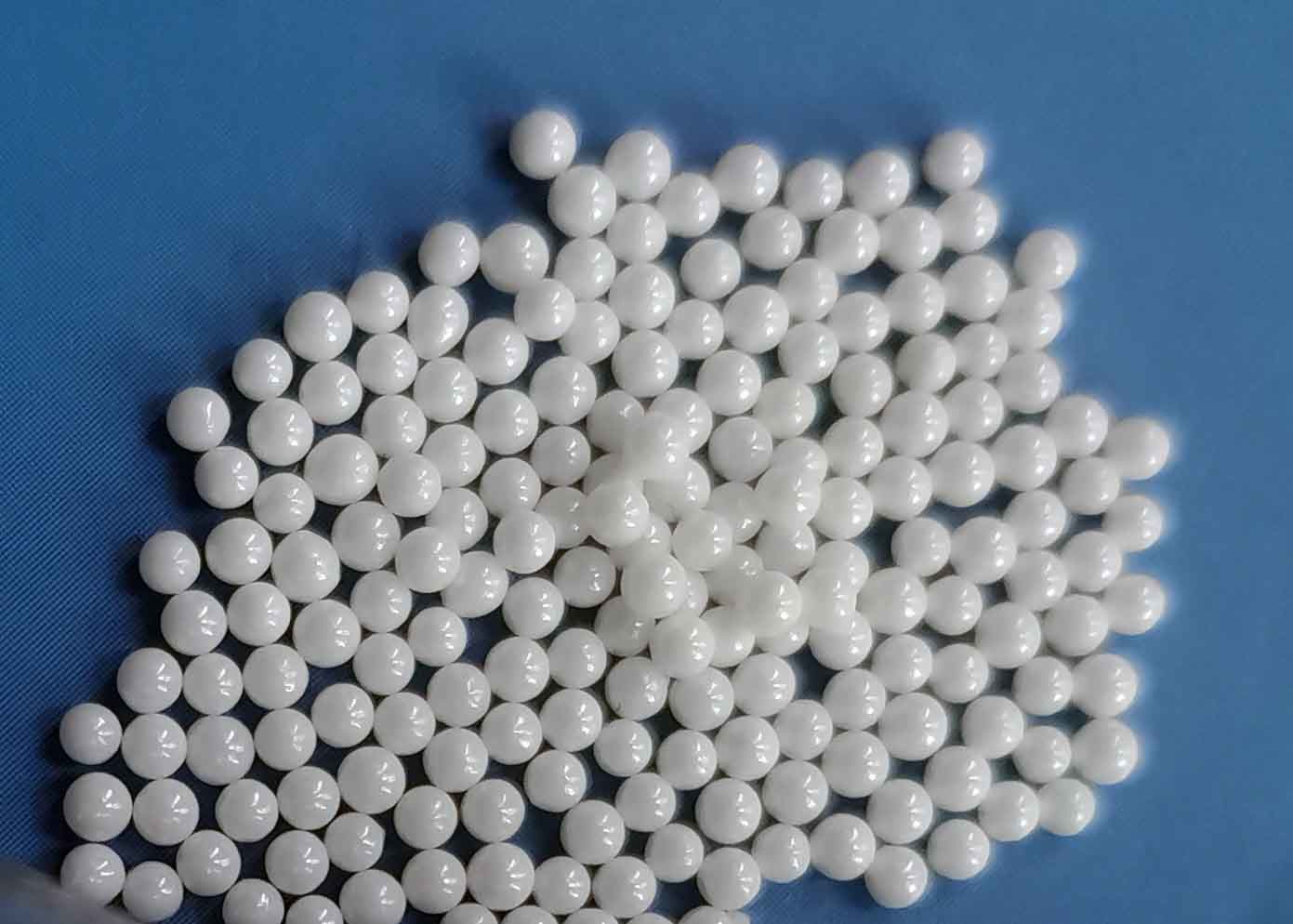

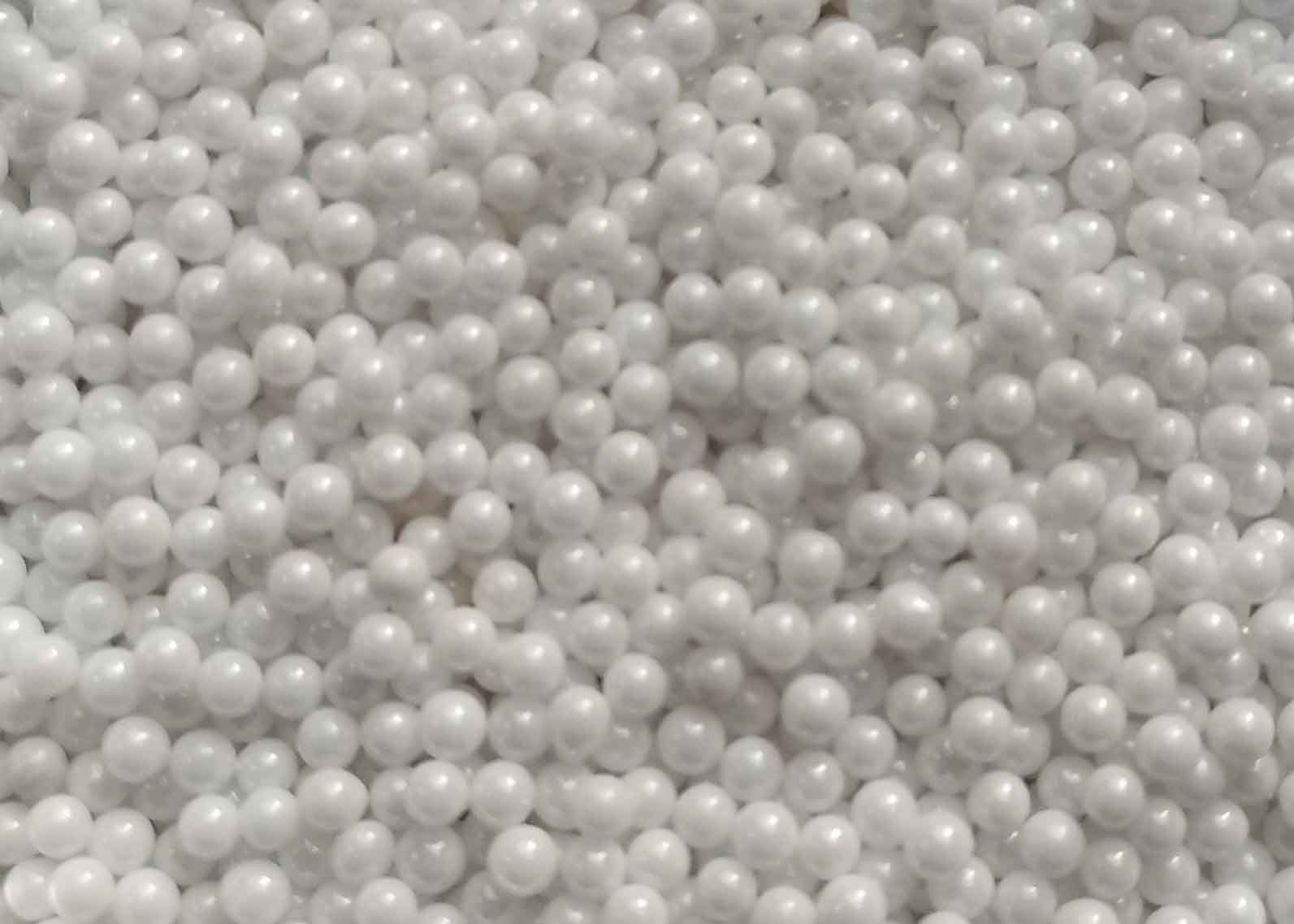

95 Yttrium Stabilized Zirconia Beads Zirconium Oxide Milling Media 1.4-1.6mm For Ultra-fine Materials
1. Product Description of 95 Yttrium Stabilized Zirconia Beads Zirconium Oxide
95 Yttrium Stabilized Zirconia Bead selects the micro and sub-nanometer as main material,yttrium oxide
as the stabilizer, used for ultra-fine grinding high hardness and high viscosity materials.
2. Main Technical Data of 65 Zirconia Beads:
| Commodity | Main Technical Index |
|
95 Yttrium Stabilized Zirconia Beads (sintering process) |
ZrO2 ≥95% Y2O3≥4.5% Others ≤0.5% True Gravity ≥6.0g/cm3 Bulk Density ≥3.7g/cm3 Vicker Hardness ≥1100 HV compressive strength ≥2.0KN (Φ2mm) |
| Particle Size |
| Φ0.1-0.2mm,Φ0.2-0.3mm, Φ0.3-0.4mm, Φ0.4-0.6mm,Φ0.6-0.8mm,Φ0.8-1.0mm,Φ1.0-1.2mm, |
| Φ1.2-1.4mm,Φ1.4-1.6mm,Φ1.6-1.8mm,Φ1.8-2.0mm,Φ2.0-2.2mm ,Φ2.2-2.4mm,Φ2.4-2.6mm |
| Φ2.6-2.8mm,Φ2.8-3.0mm,4mm,5mm,6mm,7mm,8mm,10mm etc. |
| Special products can be customized |
3. Main Applications of 95 Zirconia Beads:
Ultra-fine grinding and disperation for the following applications where requires zero pollution and
high-speed grinding,such as nano materials, pharmaceutical, food, chemical, battery, ink, paint,
pigment, printing ink, dye,cosmetics, solar cell, semiconductor, etc.
4. Main Features of 95 Yttrium Stalized Zirconia Beads:
High density, High hardness,high mechanical strength
Low breakdown rate,no ferrous and color contamination to the treated materials
Good sphericity,smooth surface,little damage to grinding equipment
Wide particle size to meet different grinding demands
5. Applicable equipment:
Horizontal sand mill;
Vertical sand mill;
Basket mill;
Ball Mill;
Vibration Mill.
