Zirconia Sand Ceramic Bead Blasting B170 B100 For Satin Metallic Surface Finish

Minimum Order Quantity : 100KGS Price : Negotiable
Packaging Details : 25kg barrel+pallet or 2*12.5kg barrel + Pallet Delivery Time : Within 3-5 days after order Confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 3000 MTS Per Year
Place of Origin: China Brand Name: Zirnano
Certification: ISO9001,ISO14001,ROHS,SGS Model Number: B20-B505

Detail Information

Commodity: Ceramic Beads Blasting Meida Product Name: Ceramic Beads
Bulk Density: 2.3 G/cm3 True Gravity: 3.85 G/cm3
Particle Range: 0-850 μm Specification: B20-B505
Vicker Hardness: 700HV Sphericity: ≥ 80%
High Light:

abrasive media blasting


ceramic cleaning media

Product Description

60-66% ZrO2 Zirconia Sand Ceramic Bead Blasting B170 B205 B400 B505 for Satin Metallic Surface Finish

1. Product Description of Ceramic Bead Blasting

Ceramic beads contains 60-66% ZrO2 ,its fine micro-structure provides its characteristics of high hardness and

good elasticity and impact resistance,which is one iedal blasting media in military and civilian fields.


2. The Main Technical Data of  Ceramic Bead Blasting


Main Index of Ceramic Bead Blasting
ZrO2 SiO2 Al2O3
60-66% 25-30% 7-13%
Vicker Hardness True Specific Gravity Bulk Density
≥700 HV ≥3.85 g/cm3 2.3g/cm3


Particle Size
B20 B30 B40
600-850μm 425-600μm 250-425μm
B60 B80 B100
150-300μm 125-212μm 106-180μm
B120 B170 B205
63-125μm 45-90μm 0-63μm
B400 B505 /
30-63μm 0-30μm /

3. The comparation between Ceramic Sandblasting and Ceramic Shot Peening

Ceramic Beads blasting media and ceramic shot peening has the same chemical composition and

Properties,while they have different requirements in particle size distribution and spherity.

Ceramic beads blasting is widely used to all kinds of steel, aluminum ,light alloy,plastic products. While ceramic

shot peening is widely used in hard steel, titanium and aluminum alloy to enhance the fatigue resistance.


4. Main Applications  of Ceramic Bead Blasting Media

B20&B30:Surface finish for metal Surface;

B40:Mold cleaning for glass bottles;

B60: surface cleaning for inner or outter wall of precision steel pipes & stainless steel ;

B120: Surface finish for Golf head and artifical joint etc.

B170&B205: Surface finish for the metal surface of 3C Products,built-in parts,as well as its accessories.

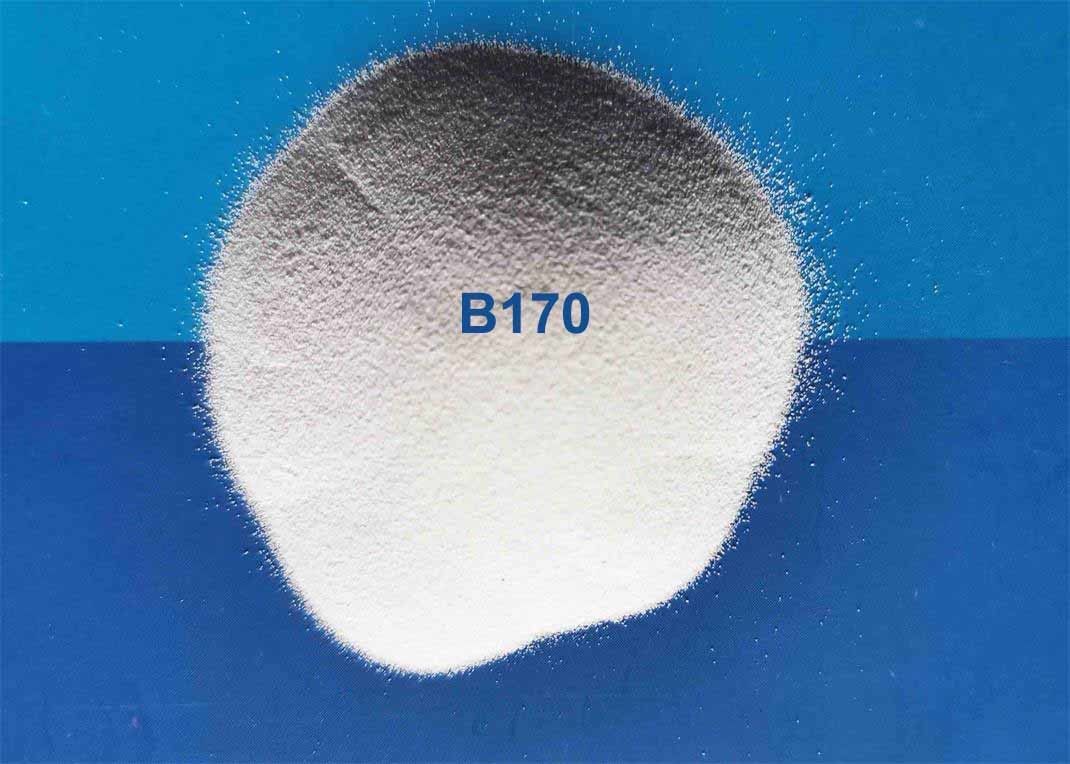

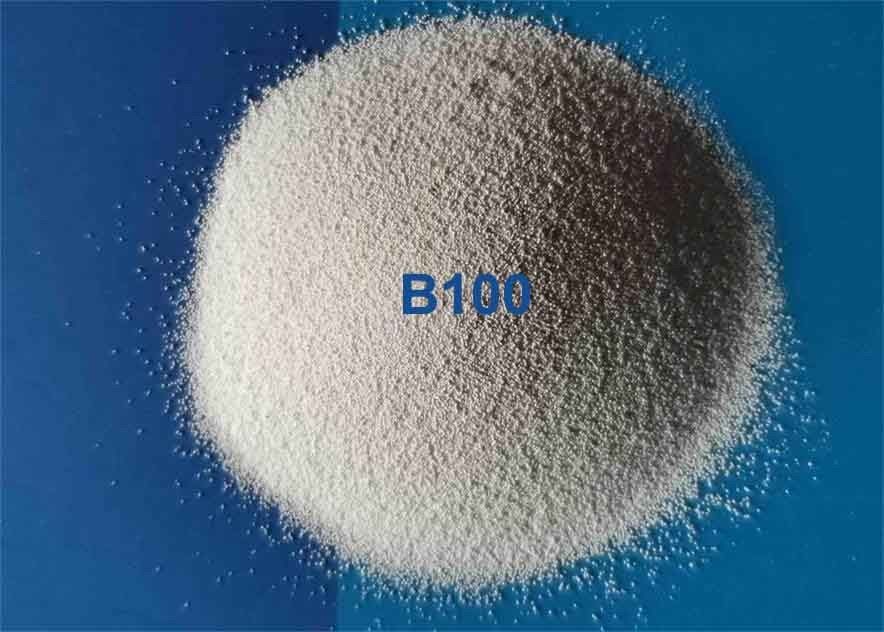

Zirconia Sand Ceramic Bead Blasting B170 B100 For Satin Metallic Surface Finish 0


5. Why choose Zirnano Ceramic Beads?

Higher clearliness

Our ceramic bead are screened more than six times and blow-cleaning under high temperature,

which provides higher clearliness and ensures it to be work normally in humid weather;


More Competitive price/performance Ratio

Our ceramic beads plant is located in mountain area,there is lower labor cost & environmental cost,then the

product cost is lower and more competitive than the one of others’ plants.


More stable quality

Our ceramic beads is made by high quality zircon sand according to stricter formula ratio,all the shipment will

be sampled and tested before loading.


6. Precautions When Using Ceramic Beads for the first time

Please kindly open 1/3 to 1/2 vest of dust collector when using ceramic bead for the first time,because ceramic beads

need the wind to be recycled. This is different from glass beads, when using galss beads,the vest of dust collector is

sealed completely.
