95% ZrO2 Min Zirconia Grinding Media High Density For High Viscosity Mill Bases

Minimum Order Quantity : 1KG Price : Negotiable
Packaging Details : 25 kg barrel + Pallet Delivery Time : 3-5 days after order confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 200mts per month
Place of Origin: China Brand Name: Zirnano
Certification: ISO9001,ISO14001 Model Number: 0.1-50mm

Detail Information

Commodity: 95 Yttrium Stablized Zirconia Beads Product Name: Zirconia Grinding Media
Uasge: Grinding Media Main Chemical: 95% ZrO2 Min
Bulk Density: ≥3.7g/cm3 True Gravity: ≥6.0g/cm3
Wear Rate Per Ton: 0.01kg/h Mohs Hardness: 9
High Light:

zirconium oxide beads


zirconium oxide balls


zirconia ceramic balls

Product Description

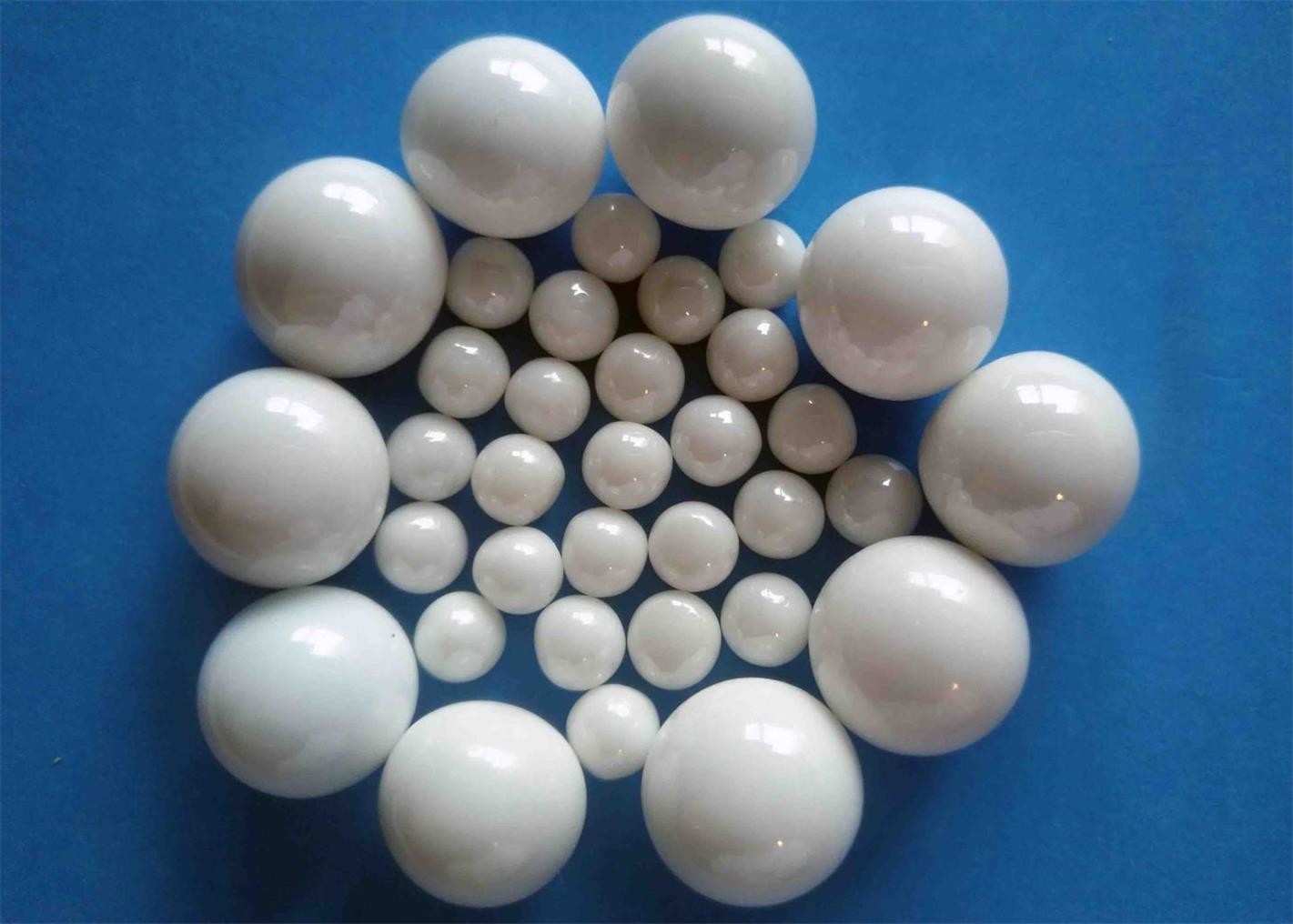

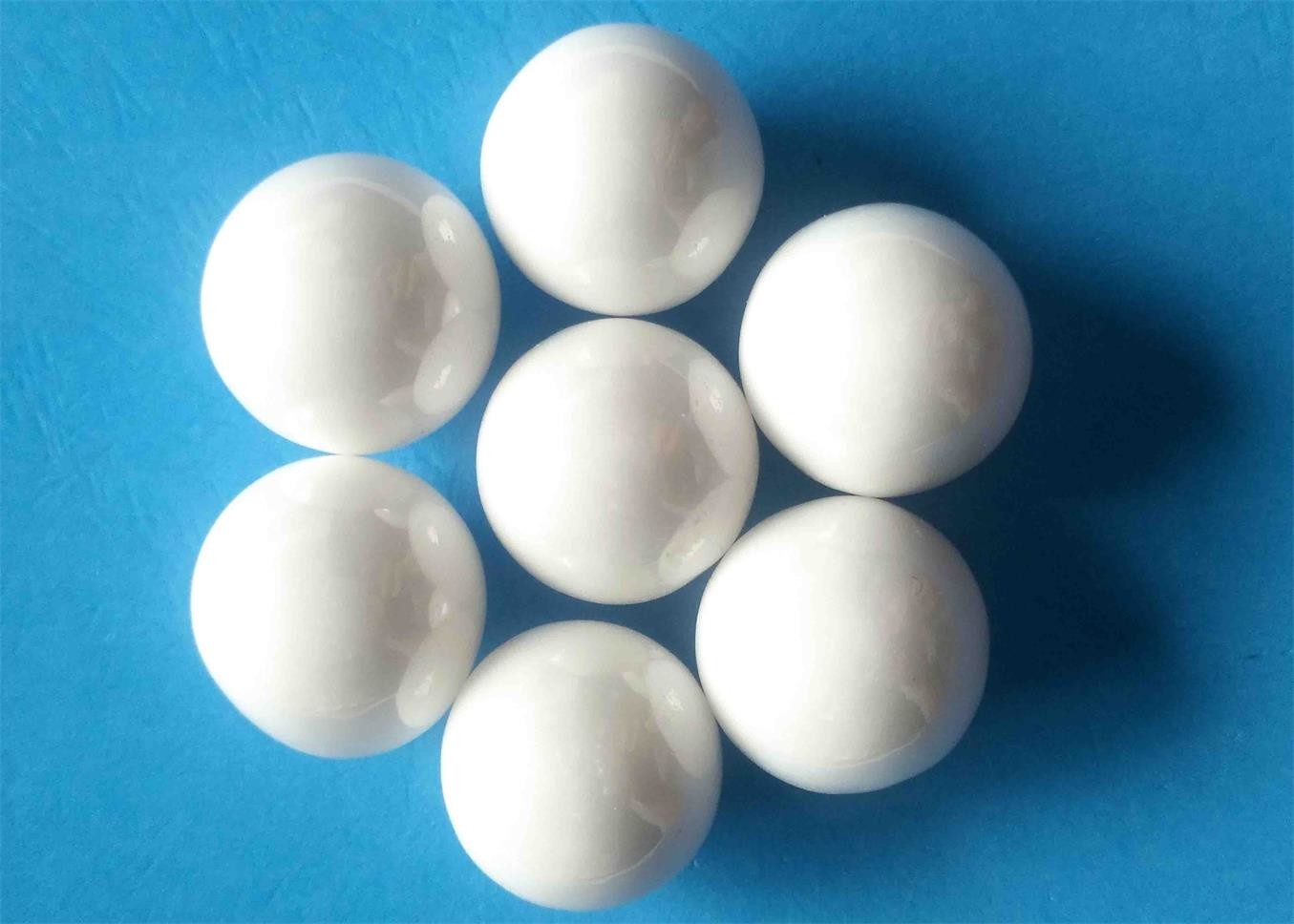

95 Yttrium Stablized Zirconia Beads Zirconia Grinding Media for High Viscosity Mill Bases


1. Product Description of 95 Yttrium Stablized Zirconia Beads

95 Yttrium Stablized Zirconia Beads is a high density,high spherical grinding media, it selects the micro or

sub-nanometer zirconia powder as raw material,sintered by medium-high temperature,its high density makes

it one ideal grinding media for high viscosity mill bases.


2. The Main Technical Data of 95 Zirconia Grinding Media


Commodity Typical Chemical Index Main Physical Index

95 Yttrium Stablized

Zirconia Beads

ZrO2 ≥95% True Gravity ≥6.0g/cm3
Y2O3 ≥4.5% Bulk Density ≥3.7g/cm3
Others ≤0.5% Vicker Hardness ≥1100 HV
sintering process compressive strength ≥2.0KN Φ2mm


Zirconia Beads Specification
Φ0.1-0.2mm Φ0.2-0.3mm Φ0.3-0.4mm Φ0.4-0.6mm
Φ0.6-0.8mm Φ0.8-1.0mm Φ1.0-1.2mm Φ1.2-1.4mm
Φ1.4-1.6mm Φ1.6-1.8mm Φ1.8-2.0mm Φ2.0-2.2mm
Φ2.2-2.4mm Φ2.4-2.6mm Φ2.6-2.8mm Φ2.8-3.0mm
Φ4mm Φ5mm Φ6mm Φ7mm
Φ8mm Φ9mm Φ10mm Φ12mm
Φ15mm Φ17mm Φ20mm Φ25mm
Φ30mm Φ40mm Φ45mm Φ50mm
Special Specification can be customized


3. Main Features of 95 Yttrium Stablized Zirconia Beads:

Good sphericity and smooth surface

Good stability, acid and alkali resistance

Good toughness, high compressive strength

Low wear rate, minimal damage to the equipment


4. Main Applications of 95 Zirconia Beads:

Grinding Media  for low wear rate & anti-corrossion products such as ink,pigments, paints,coatings;


Grinding Beads  for high strength&toughness products such as magnetic materials, electronic components,

electronic materials;


Grinding Meida for products requires zero pollution such as medicine, food, food additives, cosmetics etc;


Grinding Beads for ceramic products such as electronic ceramics,refractory ceramics,structural ceramics;


New energy lithium battery industry such as lithium iron phosphate, lithium titanate, graphite, silicon

carbon, graphene, carbon nanotubes, alumina ceramic diaphragm, etc.


95% ZrO2 Min Zirconia Grinding Media High Density For High Viscosity Mill Bases 0

5. Applicable Equipment:

Rod pin horizontal sand mill;

Turbine horizontal sand mill;

Profiled disc sand mill;

Ring - sand mill;

Centrifugal sand mill;

Basket sand mill;

Nano sand mill etc.

6. Why Choose Us?

Professional Manufacturer of zirconia Beads

Equipped the most advanced production line,testing equipment, as well as professional technical staffs;

Strict quality control and quality assurance, products will be inspected by each

Shipment,even for the free sample in small quantity;

Multiple Authentication,Certificated by ISO9001 ISO14001

Products has already exported to South Korea,Japan,Vietnam,USA...

Products in good quality & stable performance,competitive price,flexible payment terms.
