Dust Free Ceramic Bead Blasting Media B30 Sand Blasting Surface Finishing

Minimum Order Quantity : 100KGS Price : Negotiation
Packaging Details : 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet Delivery Time : 5-10 days
Supply Ability : 1500mt per year
Place of Origin: Shanxi, China Brand Name: Zhengtong
Certification: ISO9001, ISO14001 Model Number: B20-B505

Detail Information

Commodity Name: Ceramic Beads Blasting Media Chemical Index: ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 25kgs Paper Cartons Or 25kgs Barrels +pallet
High Light:

abrasive media blasting

,

ceramic cleaning media

Product Description

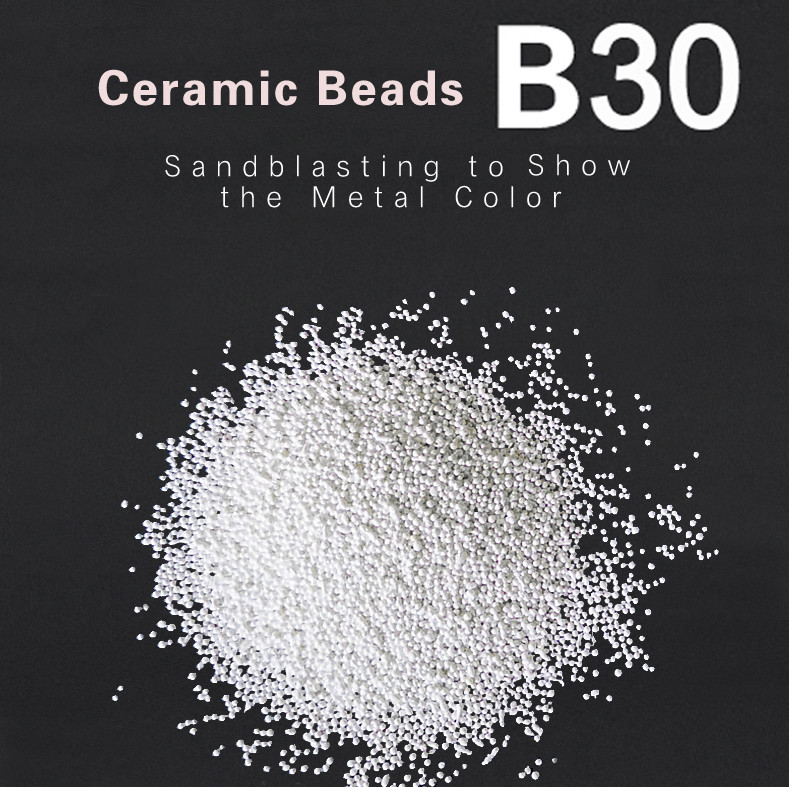

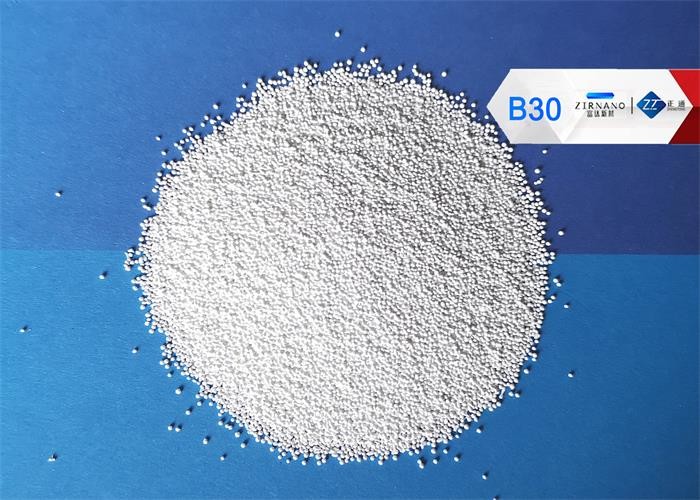

Dust free Ceramic Beads B30 Blasting Media sand blasting Surface Finishing

DESCRIPTION OF CERAMIC BEADS

Ceramic bead blasting is zirconia-based blasting media, obtained in special production process and unique formula. ZrO2 62-65%, HS code 69141000. The beads are no dust, durable and efficient, offering consistent surface finishing, are new eco-friendly blasting material, widely used for blast cleaning and surface preparation.

Mainly used in sandblasting machine, including Manual & Automatic sandblasting machine, Open type sandblasting machine and Sandblasting machine room, and shot peening equipment, etc.
Ceramic blasting beads is mostly used for debluring and blast finishing in mobile phone middle frames and other 3C products, also in glass bottles molds cleaning, golf clubs surface finishing, painting surface pretreatment and shot peening in aerospace industry, automotive industry and medical instrument.


SPECIFICATION OF CERAMIC BEADS

Manufacturing process: Melting method


ZrO2SiO2Al2O3Other
60-66%,25-30% max.7-13% max.5-8%



ColorBulk DensityTrue Specific DensityVickers Hardness
White2.3g/cm33.85g/cm3700 HV




Grit sizeB20B30B40B60B80B100B120
Microns μm600-850425-600250-425125-250180-250125-18063-125
Grit sizeB125B170B205B400B505

Special sizes
can be customized

Microns μm0-12545-900-6330-630-63
Grit sizeZ850Z600Z425Z300Z210Z150Z100
Microns850-1180600-850425-600300-425210-300150-210100-150



PRODUCTION PROCESS OF CERAMIC BEADS

Dust Free Ceramic Bead Blasting Media B30 Sand Blasting Surface Finishing 0


FEATURES OF CERAMIC BEADS


1. High hardness and good impact resistance to enable Efficient and durable blasting

2. Consistent Surface Finishing

3. No contaminating to the treated material

4. Very low dust emission, safe and healthy for workers

5. High toughness to ensure media stability over numbers of blasting cycles

6. Not break down, extremely cost effective

APPLICATION OF CERAMIC BEADS

  • In Sandblasting


1) Aerospace industry-Shot Peening
Suitable for aerospace engine components, aircraft landing gear, gear transmissions, aero-engine blades, aircraft wing-shot peening
2) Automotive industry-Sandblasting reinforcement/ Shot Peening
Suitable for gearbox gears, automotive aluminum hubs, piston components/shock absorbers, engine crankshaft sandblasting reinforcement/shot peening
3) Machinery, Medical Instrument - Sandblast finishing/shot peening
The overall sandblasting and polishing, finishing, restore the natural color of the metal, enhance the visual effect and texture, and also shot peening reinforcement to improve its worklife.
1) 3C products - Sandblasting Finishing
Alloy shell, middle frame and built-in parts of computers, mobile phones, cameras, etc. - sandblasting finishing
Clean burrs to form film-light decorative or fine reflective surface, on alloy workpiece such as mobile phone to achieve different reflection or matte.
2) Kitchen Industry-Sandblasting finishing
Stainless steel cutlery and kitchen utensils sandblasting finishing
3) Golf club - Sandblasting finishing
Golf club & ball head alloy surface treatment Sandblasting finishing
4) Casting and forging parts, welded parts, heat-treated parts - Sandblast Cleaning
Clean all the dirt on the surface of the alloy workpiece, micro burrs, improve the flatness and smoothness of the workpiece, and expose to uniform metallic color, achieving smooth and non-reflective requirements on surface.
5) Pipeline - Sandblast Cleaning
Metal pipes such as copper pipes and steel pipes are cleaned and polished on the inner and outer walls.
6) Molds - Sandblast cleaning
Cleaning of molds of glass bottles, tires, etc., rust, dirt and impurities.
7) Electroplating, painting, anode-Surface Pretreatment
Electroplating, painting, anode, Teflon, rubber, plastic, traversing, metal, spray welding, gold plating, titanium plating, etc., to remove dirt and increase product surface adhesion.
8) Hardware parts - Sandblasting to improve lubrication conditions
It can produce uniform and fine uneven surface on the surface of the part, so that the lubricating oil can be stored, improve the lubrication condition and reduce the noise.


  • In shot peening


1) Aerospace industry-Shot Peening
Suitable for aerospace engine components, aircraft landing gear, gear transmissions, aero-engine blades, aircraft wing-shot peening
2) Automotive industry-Sandblasting reinforcement/ Shot Peening
Suitable for gearbox gears, automotive aluminum hubs, piston components/shock absorbers, engine crankshaft sandblasting reinforcement/shot peening
3) Machinery, Medical Instrument - Sandblast finishing/shot peening
The overall sandblasting and polishing, finishing, restore the natural color of the metal, enhance the visual effect and texture, and also shot peening reinforcement to improve its worklife.


Dust Free Ceramic Bead Blasting Media B30 Sand Blasting Surface Finishing 1


APPLICABLE EQUIPMENT

  • In sandblasting


Manual sandblasting machine
Automatic sandblasting machine
Open type sandblasting machine
Sandblasting machine room


  • In shot peening /shot blasting


Pneumatic shot blasting machine
Centrifugal shot blasting machine
CNC shot peening equipment
Wet shot blasting equipment


No matter you’re the end users, blasting service suppliers, sandblasting equipment dealers or ceramic beads and other blasting abrasive distributors, welcome to contact us. More details of ceramic bead blasting, updated prices and samples will be available.
