Golf Club Ball Head Surface Finish Ceramic Bead Blasting Media B80 700HV Hardness

Product Details:
Place of Origin: Shanxi, China
Brand Name: Zhengtong
Certification: ISO9001, ISO14001
Model Number: B20, B30,B40, B60, B80,B100, B120, B170, B205, B400
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: Negotiation

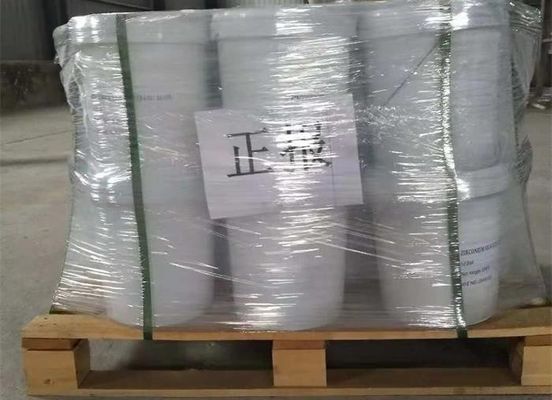

Packaging Details: 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet
Delivery Time: 5-10 days
Supply Ability: 1500mt per year

Detail Information

Commodity Name: Ceramic Microbeads Blasting Media Chemical Index: ZrO2 60-68%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 2*12.5kgs Barrels In Paper Cartons Or 25kgs Barrels +pallet
High Light:

abrasive media blasting

,

ceramic cleaning media

Product Description

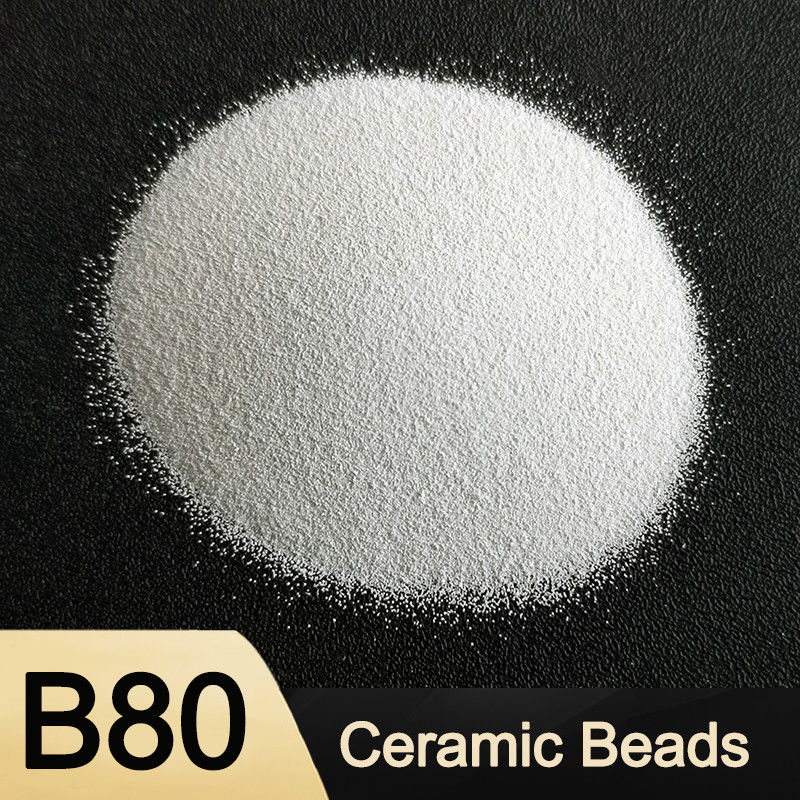

Golf club ball head surface finish Ceramic Bead Blasting media B80


DESCRIPTION OF CERAMIC MEDIA



The ceramic bead blasting also called bead blasting, ceramic blasting, ceramic blasting media, is a kind of Zirconia ceramic blasting media, with ZrO2 60-66%, size from B20 t0 B505, same as ZIRBLAST and MICROBLAST.



Blasting gives stainless steel a satin grey touch and other alloy to expose uniform metallic color, achieving smooth and non-reflective requirements on surface. This can be done with ceramic bead blasting.



Ceramic blasting beads mainly used for debluring and blast finishing in mobile phone middle frames and other 3C products, also in glass bottles molds cleaning, golf clubs surface finishing, painting surface pretreatment and shot peening in aerospace industry, automotive industry and medical instrument.




SPECIFICATION OF CERAMIC MEDIA



Chemical Index ZrO2 SiO2 Al2O3
60-65% 25-30% 7-13%
Typical Value 62.20% 26.10% 9.05%
Bulk Density 2.3g/cm3
Specific Density 3.85g/cm3
Vickers Hardness 700HV





Grit size B20 B30 B40 B60 B80 B100 B120
Microns μm 600-850 425-600 250-425 125-250 180-250 125-180 63-125
Grit size B125 B170 B205 B400 B505

Special sizes

can be customized

Microns μm 0-125 45-90 0-63 30-63 0-63
Grit size Z850 Z600 Z425 Z300 Z210 Z150 Z100
Microns 850-1180 600-850 425-600 300-425 210-300 150-210 100-150



FEATURES OF CERAMIC MEDIA


Surface finish consistency

01 Low breakdown
With features of less abrasive breakdown and almost no dust generation which in turn results in a cleaner working environment and better operator visibility
Comparing with glass beads, ceramic bears is of low breakdown rates up to 15:1 , thus enables it repeatable and consistent result to be achieved.

02 Narrow particle size distribution
The more centralized granularity can make the objects surface more uniform, and softer view in blasting process.

Contrast of Ceramic bead, glass beads and steel shot




Parameter Ceramic beads Glass beads Steel shot
Main ingredient ZrO2+SiO2 SiO2+NaO2 C+Si+Mn+S+P
Vickers hardness ≈700HV ≈560HV ≈700HV
Rockwell hardness ≈60HRC ≈46HRC ≈60HRC
True density 3.85g/cm3 2.6 g/cm3 7.8 g/cm3
Particle size interval 0.04-0.85mm 0.045-0.85mm 0.05-0.60mm
Particle shape spherical spherical Fillet
Dust pollution Very small Big small
Metal pollution no no yes
Cycles repeatedly
70-90 times
Coking gas glass beads 1-2 times; Natural gas glass beads 3-4 times Under low pressure in blasting cabinet 9-12 times repeatedly
80-100 times
Breakage rate
under dry blasting
1.20% 10% 1%
Service life 8 times longther than glass beads under dry blasting;  25 times longer than glass beads under wet blasting About ceramic sand 1/25 high
power consumption low low high
Equipment wear low low high
Sandblasting effect High finish and no discoloration of workpiece High finish and white
workpiece
Low finish and
blackened workpiece





APPLICABLE EQUIPMENT


Suitable sand blasting machine:
Manual type series:
Manual closed type blasting machine, manual cart rotary blasting machine, double gun double station manual blasting machine, manual (automatic) roller dual-purpose blasting machine, manual closed pressure
Automatic series of sand blasting machine:
Automatic closed pressure blasting machine, automatic conveying type blasting machine, crawler type blasting machine, automatic turntable blasting machine, automatic turntable continuous pressure blasting machine, automatic conveying
Open type series of sand blasting machine:
Crankshaft inner wall automatic sand blasting machine
Blasting room series:
Pneumatic conveying type blasting room, mechanical conveying type blasting room, etc.

OUR SERVICE

Free Samples -1kgs
Different blasting workpieces, Different requirements for ceramic beads.
Our factory can provide consult solution, suggest the ceramic beads sizes according to the workpiece you handle and provide 1kgs ceramic beads samples for free.

OEM customize same ceramic beads with your samples or requirements.
Our factory has our own test lab., with high precision chemical and particle size detection instruments. You can send ceramic beads samples, then we will test and analysis it and customize same ceramic beads with your samples or according to your customer requirements.

Quality Guarantee
Guarantee our ceramic beads has no quality problems, and in case any problems are found,
We accept return and/or exchange.





APPLICATION OF CERAMIC MEDIA



l  In Sandblasting

1) 3C products - Sandblasting Finishing

2) Kitchen Industry-Sandblasting finishing

3) Golf club - Sandblasting finishing

4) Casting and forging parts, welded parts, heat-treated parts - Sandblast Cleaning

5) Pipeline - Sandblast Cleaning

6) Molds - Sandblast cleaning

7) Electroplating, painting, anode-Surface Pretreatment

8) Hardware parts - Sandblasting to improve lubrication conditions

l  In shot peening

1) Aerospace industry-Shot Peening

2) Automotive industry-Sandblasting reinforcement/ Shot Peening



3) Machinery, Medical Instrument - Sandblast finishing/shot peening
