ZrO2 60% Ceramic Bead Blasting B30 For 3C Products Sandblasting Deblur

Minimum Order Quantity : 100KGS Price : Negotiation

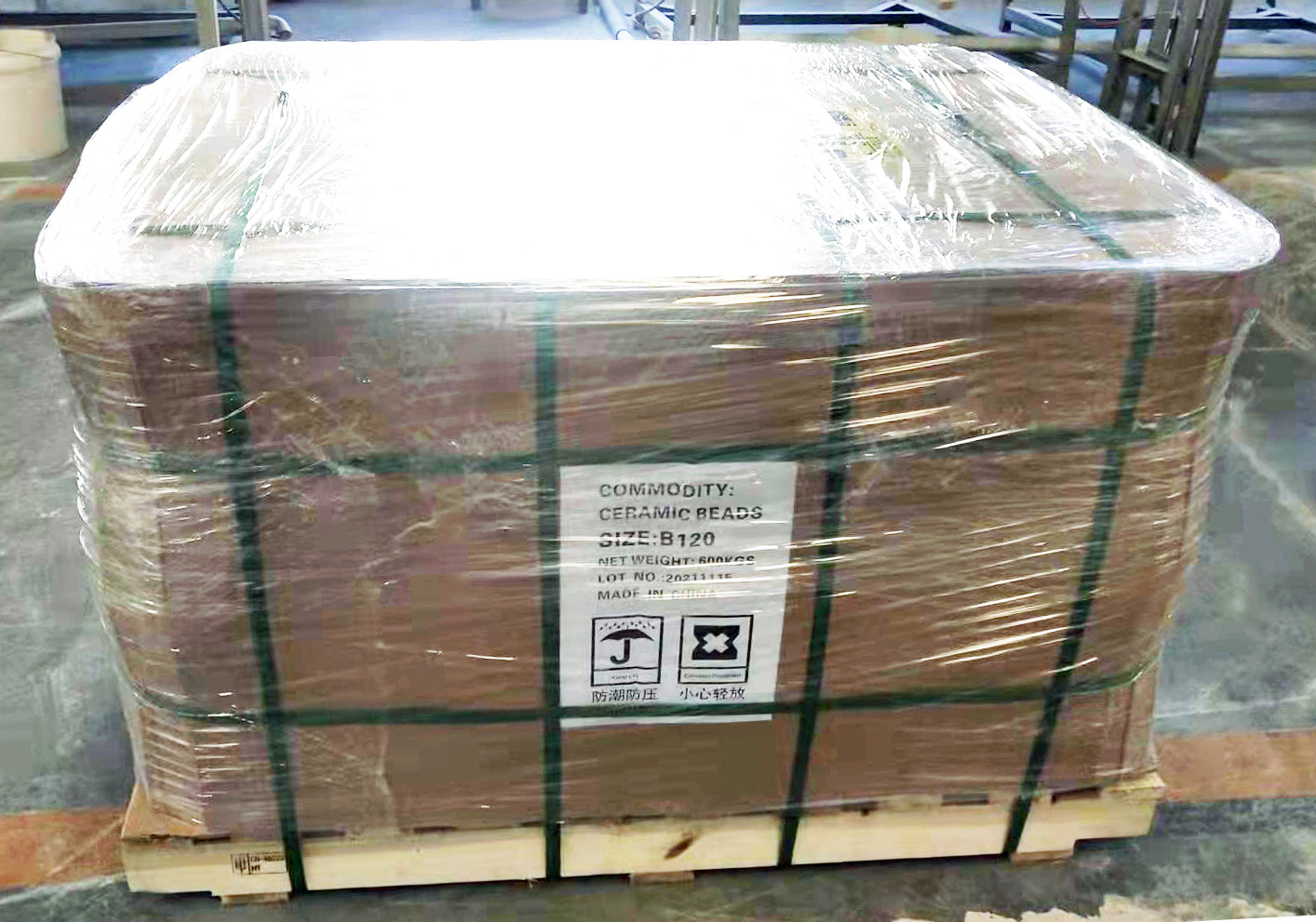

Packaging Details : 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet Delivery Time : 5-10 days
Supply Ability : 1500mt per year
Place of Origin: Shanxi, China Brand Name: Zhengtong
Certification: ISO9001, ISO14001 Model Number: B20-B505

Detail Information

Commodity Name: Ceramic Beads Blasting Media Chemical Index: ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 25kgs Paper Cartons Or 25kgs Barrels +pallet
High Light:

low dust blasting media

,

ceramic cleaning media

Product Description

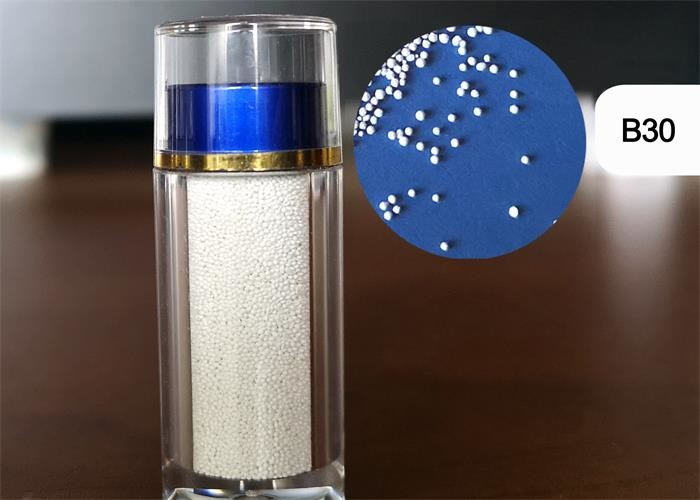

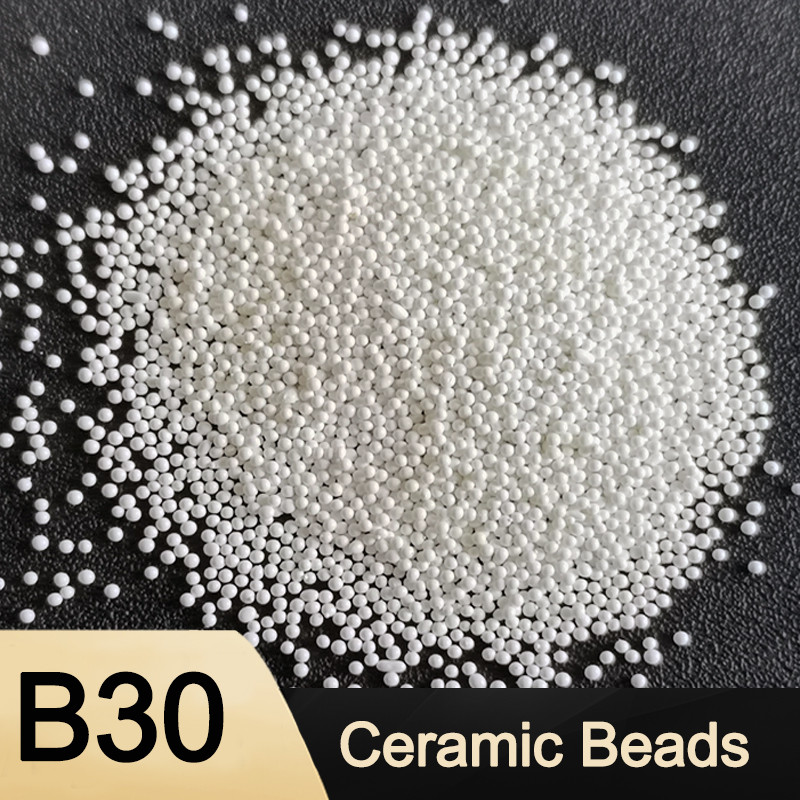

ZrO2 60% Ceramic Bead Blasting B30 for 3C products sandblasting deblur



Description of ceramic beads sandblasting media

The ceramic bead blasting also called ceramic beads, ceramic blasting beads, or Zirconia ceramic blasting media, is made from zirconium sand, melting and blending in the high temperature mine heat furnace, then made to micro beads by special technology, its features are high hardness, good elasticity, high gloss and high impact strength. Ceramic blasting beads mainly used for debluring in mobile phone middle frames and other 3C products, also in molds cleaning, surface pretreatment and shot peening in aerospace industry, automotive industry and medical instrument.





Specification of ceramic beads sandblasting media


Manufacturing process: Melting method

ZrO2 SiO2 Al2O3 Other
60-66%, 25-30% max. 7-13% max. 5-8%



Color Bulk Density True Specific Density Vickers Hardness
White 2.3g/cm3 3.85g/cm3 700 HV

Sizes

B20 B30 B40 B60
600-850µm 425-6000µm 0250-425µm 125-250µm
B80 B120 B170 B205
180-250µm 63-125µm 45-90µm 0-63µm

Special sizes available against clients’ requirement.


 Features of ceramic beads sandblasting media


High efficiency
With high hardness, long life and good elasticity, suitable for the complicated structure,without damage to the surface of the workpiece, eliminate the stress and improve the fatigue life of the workpiece.

High cost performance
Compared to glass beads, it has higher cleanliness, can prolong the service life 30-50 times. Compared to steel beads, it has superior smoothness, can prolong life 3-5 times. It ‘s also recyclable,and can reduce the refueling times, improve working efficiency.

Environmental protection
Not easy to break during sandblasting process, no dust, clean, and no hidden danger of silicosis, it is harmless to the human body.

Application of ceramic beads sandblasting media


SANDBLASTING

1) 3C products - Sandblasting Finishing
Alloy shell, middle frame and built-in parts of computers, mobile phones, cameras, etc. - sandblasting finishing
Clean burrs to form film-light decorative or fine reflective surface, on alloy workpiece such as mobile phone to achieve different reflection or matte.
2) Golf club - Sandblasting finishing
Golf club, ball head alloy surface sandblasting finish
3) Kitchen Industry-Sandblasting finishing
Stainless steel cutlery and kitchen utensils sandblasting finishing
4) Machinery, Medical Instrument - Sandblast finishing/shot peening
The overall sandblasting and polishing, finishing, restore the natural color of the metal, enhance the visual effect and texture, and also shot peening reinforcement to improve its worklife.
5) Casting and forging parts, welded parts, heat-treated parts - Sandblast Cleaning
Clean all the dirt on the surface of the alloy workpiece, micro burrs, improve the flatness and smoothness of the workpiece, and expose to uniform metallic color, achieving smooth and non-reflective requirements on surface.
6) Pipeline - Sandblast Cleaning
Metal pipes such as copper pipes and steel pipes are cleaned and polished on the inner and outer walls.
7) Molds - Sandblast cleaning
Cleaning of molds of glass bottles, tires, etc., rust, dirt and impurities.
8) Electroplating, painting, anode-Surface Pretreatment
Electroplating, painting, anode, Teflon, rubber, plastic, traversing, metal, spray welding, gold plating, titanium plating, etc., to remove dirt and increase product surface adhesion.
10) Hardware parts - Sandblasting to improve lubrication conditions
It can produce uniform and fine uneven surface on the surface of the part, so that the lubricating oil can be stored, improve the lubrication condition and reduce the noise.
 ZrO2 60% Ceramic Bead Blasting B30 For 3C Products Sandblasting Deblur 0


SHOT PEENING

1) Aerospace industry-Shot Peening
Suitable for aerospace engine components, aircraft landing gear, gear transmissions, aero-engine blades, aircraft wing-shot peening
2) Automotive industry-Sandblasting reinforcement/ Shot Peening
Suitable for gearbox gears, automotive aluminum hubs, piston components/shock absorbers, engine crankshaft sandblasting reinforcement/shot peening

3) Machinery, Medical Instrument - Sandblast finishing/shot peening
The overall sandblasting and polishing, finishing, restore the natural color of the metal, enhance the visual effect and texture, and also shot peening reinforcement to improve its worklife.


Applicable equipments

  • In sandblasting


Manual sandblasting machine
Automatic sandblasting machine
Open type sandblasting machine
Sandblasting machine room


  • In shot peening /shot blasting


Pneumatic shot blasting machine
Centrifugal shot blasting machine
CNC shot peening equipment
Wet shot blasting equipment
