Zirconia Ceramic Blasting Media B505 , Metal Surface Satin Finish Ceramic Polishing Media
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001, ISO14001 |
| Model Number: | B20, B30,B40, B60, B80,B100, B120, B170, B205, B400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Microbeads Blasting Media | Chemical Index: | ZrO2 60-68%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 2*12.5kgs Barrels In Paper Cartons Or 25kgs Barrels +pallet | ||
| High Light: | abrasive media blasting,ceramic cleaning media |
||
Product Description

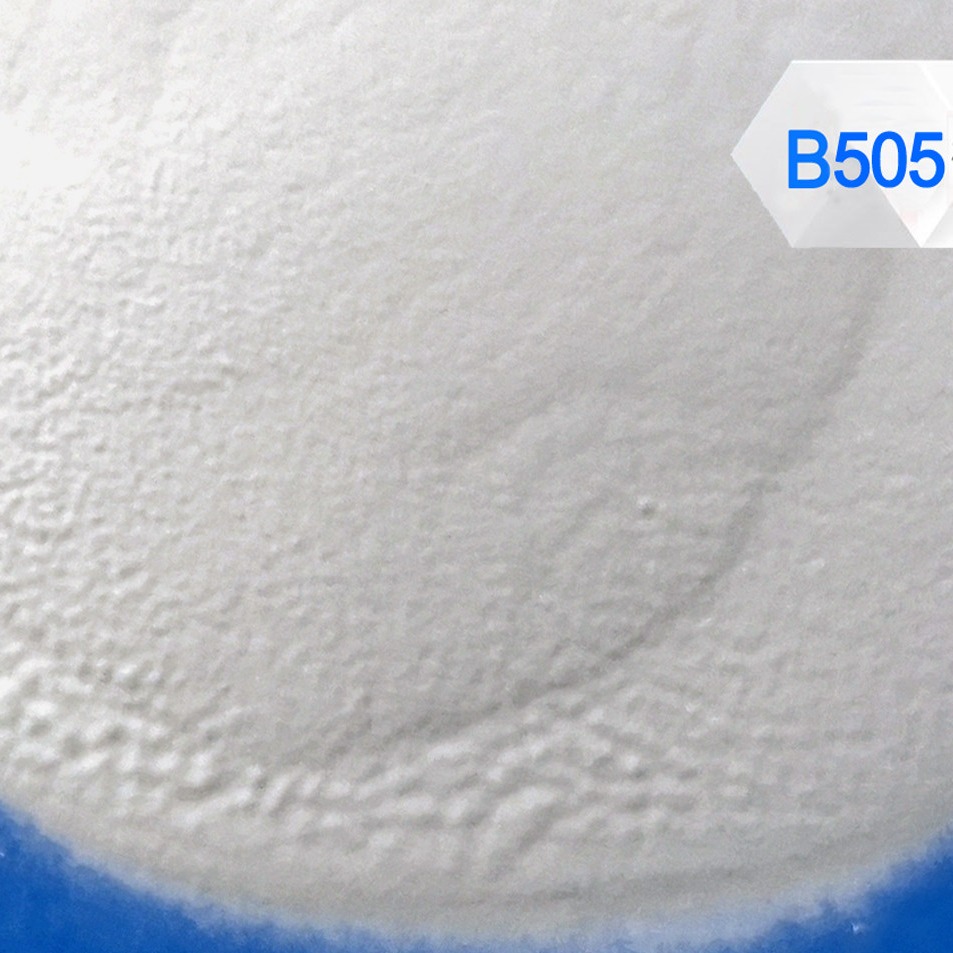

Zirconia Ceramic microbeads B505 for metal surface satin finish
DESCRIPTION OF CERAMIC BLASTING MICRO BEADS
Ceramic blasting micro beads, with ZrO2 60-68%, also calls zirconia microbeads, are generally used
as blasting media for surface satin finish like debluring, matte effect surface, and molds cleaning like rubber
and plastic moulds etc..
SPECIFICATION OF CERAMIC BLASTING MICRO BEADS
| Chemical Index | ZrO2 | SiO2 | Al2O3 |
| 60-65% | 25-30% | 7-13% | |
| Typical Value | 62.20% | 26.10% | 9.05% |
| Bulk Density | 2.3g/cm3 | ||
| Specific Density | 3.85g/cm3 | ||
| Vickers Hardness | 700HV | ||
Sizes
B505:0.0.063MM
OTHER SIZES AVAILABLE
| B20 | B30 | B40 | B60 |
| 600-850µm | 425-6000µm | 0250-425µm | 125-250µm |
| B80 | B120 | B170 | B205 |
| 180-250µm | 63-125µm | 45-90µm | 0-63µm |
Special sizes available against clients’ requirement.
FEATURES OF CERAMIC BLASTING MICRO BEADS
Surface finish consistency
01 Low breakdown
With features of less abrasive breakdown and almost no dust generation which in turn results in a cleaner working environment and better operator visibility
Comparing with glass beads, ceramic bears is of low breakdown rates up to 15:1 , thus enables it repeatable and consistent result to be achieved.
02 Narrow particle size distribution
The more centralized granularity can make the objects surface more uniform, and softer view in blasting process.
Contrast of Ceramic bead, glass beads and steel shot
| Index | Ceramic beads | Glass beads | Steel shot |
| Main components | ZrO2+SiO2 | SiO2+NaO2 | C+Si+Mn+S+P |
| Vickers hardness | ≈700HV | ≈560HV | ≈700HV |
| True density | 3.85g/cm³ | 2.6 g/cm³ | 7.8 g/cm³ |
| Particle size interval | 0.04-0.85mm | 0.045-0.85mm | 0.05-0.60mm |
| Particle shape | spherical | spherical | rounded corner |
| Dust pollution | very little | much | little |
| Metal pollution | no | no | yes |
| Number of cycles | multiple times | 1-2times | multiple times |
| service life | long | Low,1/20 of ceramic bead | long |
| power consumption | Low | Low | High |
| Equipment wear | Low | Low | High |
| Sandblasting effect | High finish, non-discoloration of workpiece | high finish, white glaze, | low finish, |
APPLICATION OF CERAMIC BLASTING MICRO BEADS
1) 3C products - Sandblasting Finishing
2) Aerospace industry-Blasting finishing
3) Automotive industry-sandblasting reinforcement
4) Kitchen Industry-Sandblasting finishing
5) Machinery, Medical Instrument - Sandblast finishing
6) Casting and forging parts, welded parts, heat-treated parts - Sandblast Cleaning
7) Pipeline - Sandblast Cleaning
8) Molds - Sandblast cleaning
9) Electroplating, painting, anode-Surface Pretreatment
10) Hardware parts - Sandblasting to improve lubrication conditions
APPLICABLE EQUIPMENT
Suitable sand blasting machine:
Manual type series:
Manual closed type blasting machine, manual cart rotary blasting machine, double gun double station manual blasting machine, manual (automatic) roller dual-purpose blasting machine, manual closed pressure
Automatic series of sand blasting machine:
Automatic closed pressure blasting machine, automatic conveying type blasting machine, crawler type blasting machine, automatic turntable blasting machine, automatic turntable continuous pressure blasting machine, automatic conveying
Open type series of sand blasting machine:
Crankshaft inner wall automatic sand blasting machine
Blasting room series:
Pneumatic conveying type blasting room, mechanical conveying type blasting room, etc.
Our Service
Free Samples -1kgs
Different blasting workpieces, Different requirements for ceramic beads.
Our factory can provide consult solution, suggest the ceramic beads sizes according to the workpiece you handle and provide 1kgs ceramic beads samples for free.
OEM customize same ceramic beads with your samples or requirements.
Our factory has our own test lab., with high precision chemical and particle size detection instruments. You can send ceramic beads samples, then we will test and analysis it and customize same ceramic beads with your samples or according to your customer requirements.
Quality Guarantee
Guarantee our ceramic beads has no quality problems, and in case any problems are found,
We accept return and/or exchange.
