ZrO2 60-65% Ceramic Bead Blasting Density 3.85 G / Cm3 High Toughness Consistent Surface Finishes
Product Details:
Place of Origin: | Shanxi, China |
Brand Name: | Zhengtong |
Certification: | ISO9001, ISO14001 |
Model Number: | B20-B505 |
Payment & Shipping Terms:
Minimum Order Quantity: | 100KGS |
---|---|
Price: | Negotiation |

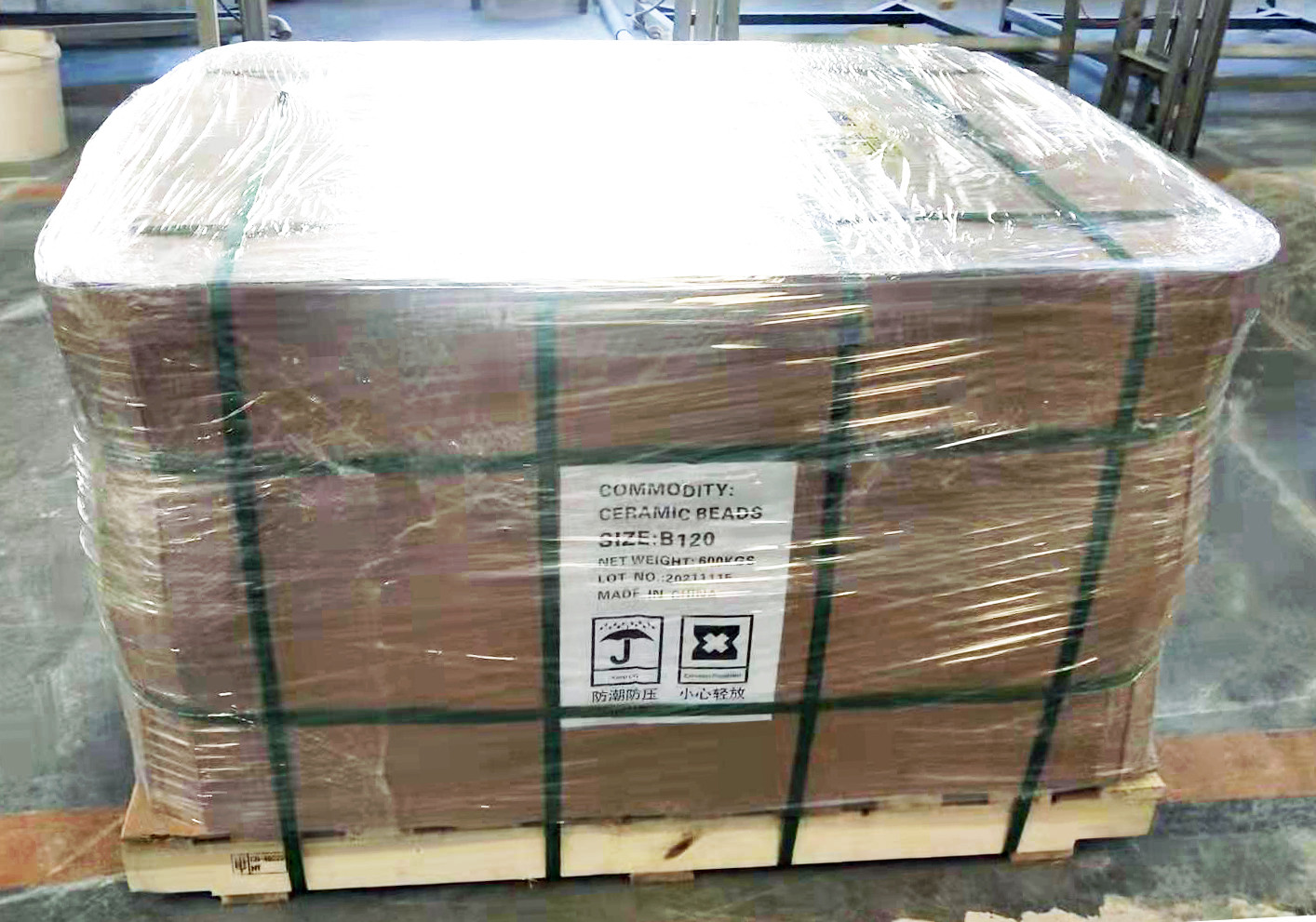

Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
Delivery Time: | 5-10 days |
Supply Ability: | 1500mt per year |
Detail Information |
|||
Commodity Name: | Zirconia Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66% |
---|---|---|---|
Manufacturing Process: | Melting Method | Bulk Density: | 2.30g/cm3 |
True Density: | 3.85g/cm3 | Hardness: | 700HV |
Package: | 2*12.5kgs/Barrel In Paper Cartons Or 25kgs Barrels +pallet | ||
High Light: | abrasive media blasting,ceramic cleaning media |
Product Description
Ceramic beads of ZrO2 60-65% high toughness consistent surface finishes
DESCRIPTION OF CERAMIC BEADS
FOR METAL SURFACE SANDBLASTING FINISH
Ceramic beads is one of the most cost effective blasting media, has been taken place of glass beads in many blasting fields.
It is made of mineral oxides of zirconia sand through electro fusion in ore furnace.
Both ceramic beads and glass beads are available in two types; as blasting beads, and as peening beads.
It has fine internal structure, leading high density and high toughness and fracture resistant, ensuring consistent surface finishes.
SPECIFICATION OF CERAMIC BEADS
FOR METAL SURFACE SANDBLASTING FINISH
Manufacturing process: Melting method
ZrO2 | SiO2 | Al2O3 | Other |
60-66%, | 25-30% max. | 7-13% max. | 5-8% |
Color | Bulk Density | True Specific Density | Vickers Hardness |
White | 2.3g/cm3 | 3.85g/cm3 | 700 HV |

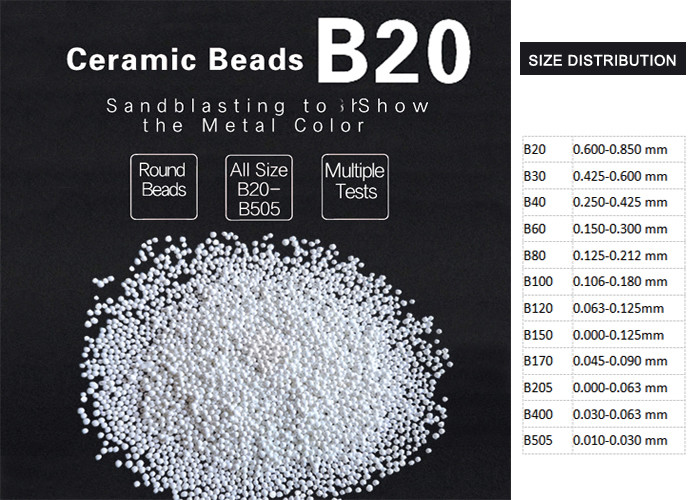

Sizes
B20 | B30 | B40 | B60 |
600-850µm | 425-6000µm | 0250-425µm | 125-250µm |
B80 | B120 | B170 | B205 |
180-250µm | 63-125µm | 45-90µm | 0-63µm |
Special sizes available against clients’ requirement.
APPLICATION OF CERAMIC BEADS
FOR METAL SURFACE SANDBLASTING FINISH
- Surface finishing
Cleaning, sanitizing and surface finishing of fabricated stainless steel items for food and pharmaceutical industries. Blasting gives stainless steel a satin grey touch
Medical implant and instrument surface finishing.
Work pieces blasted with ceramic beads are a lot less prone to fingerprints and other handling stains than those blasted with glass beads and stay looking good a lot longer.
APPLICABLE EQUIPMENT
Suitable sand blasting machine:
Manual type series:
Manual closed type blasting machine, manual cart rotary blasting machine, double gun double station manual blasting machine, manual (automatic) roller dual-purpose blasting machine, manual closed pressure
Automatic series of sand blasting machine:
Automatic closed pressure blasting machine, automatic conveying type blasting machine, crawler type blasting machine, automatic turntable blasting machine, automatic turntable continuous pressure blasting machine, automatic conveying
Open type series of sand blasting machine:
Crankshaft inner wall automatic sand blasting machine
Blasting room series:
Pneumatic conveying type blasting room, mechanical conveying type blasting room, etc.
