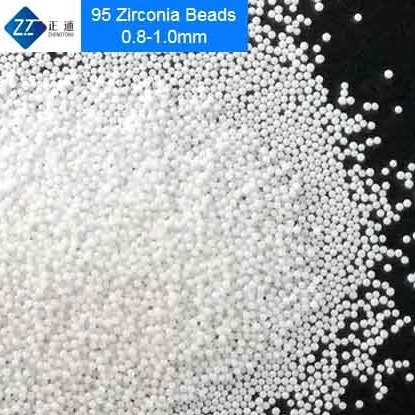

95 Yttria Stabilized Zirconia Grinding Media 0.8 - 1.0mm Size For Dye Dispersion

Minimum Order Quantity : 25kg Price : Negotiation
Packaging Details : 25kg drum+Pallet Delivery Time : 3-14days depending on the order quantity
Payment Terms : T/T, L/C Supply Ability : 1000MT per Year
Place of Origin: Shanxi,China Brand Name: FUDA
Certification: ISO9001,ISO14001 Model Number: 0.1-50mm

Detail Information

Product Name: Zirconia Grinding Beads Usage: Grinding And Dispersion
Vicker Hardness: ≥1100 HV Mohs Hardness: >9 Mohs
Compressive Strength: ≥2.0KN (Φ2mm) Process Method: Sintering Process
ZrO2: ≥95% Y2O3: ≥4.5%
High Light:

zirconium oxide balls

,

zirconia ceramic balls

Product Description

High Hardness 95 Yittrium Stabilized Zirconia Grinding Beads 0.8-1.0mm for Dye Dispersion

1. Description of 95 Yittrium Stabilized Zirconia Grinding Beads

Zirconia Grinding Beads is also named as 95% zirconia beads,Yttrium stablized beads.

It selects the mircon or sub-nanometer zirconia powder as raw material,sintered by medium-high temperture.

Zirconia Grinding Beads has the characteristics of high hardness, low wear rate,high grinding efficiency,

overall low cost after long time working.It is the most durable grinding media at present.



2. Main Technical Index of 95 Yittrium Stabilized Zirconia Grinding Beads



Commodity Typical Chemical Index Main Physical Index
Zirconia Grinding Beads ZrO2 ≥95% True Gravity ≥6.0g/cm3
Y2O3 ≥4.5% Bulk Density ≥3.7g/cm3
Others ≤0.5% Vicker Hardness ≥1100 HV
sintering process compressive strength ≥2.0KN Φ2mm



Particle Size
Φ0.1-0.2 mm,Φ0.2-0.3 mm,Φ0.3-0.4 mm,Φ0.4-0.6 mm,Φ0.6-0.8 mm,Φ0.8-1.0 mm,Φ1.0-1.2 mm,
Φ1.2-1.4 mm,Φ1.4-1.6 mm,Φ1.6-1.8 mm,Φ1.8-2.0 mm,Φ2.0-2.2 mm,Φ2.2-2.4 mm,Φ2.4-2.6 mm,
Φ2.6-2.8 mm,Φ4mm,Φ5mm,Φ6mm,Φ7mm,Φ8mm,Φ9mm,Φ10mm,Φ12mm,Φ15mm,Φ17mm,
Φ20mm,Φ25mm,Φ30mm,Φ40mm,Φ45mm,Φ50mm etc.
Special products can be customized.

3. Main Features of 95 Yittrium Stabilized Zirconia Grinding Beads

  • Good spherical and smooth surface
  • Low Abrasion Rate,High grinding efficiency
  • High Strength,High Hardness
  • Good fluidity,non contamination to the treatment
  • Good stability, Anti-Acid & alkali corrosion

4. Main Application of Yittrium Stabilized Zirconia Grinding Beads

  • Grinding or dispersing the slurry of coatings, pigments, printing and dyeing etc.
  • Grinding or dispersing the slurry of magnetic materials, piezoelectric ceramics and dielectric ceramics
  • Grinding or dispersing the non-metallic mineral& ground calcium carbonate
  • Grinding or dispersing for metallic minerals such as copper, silver, nickel, gold, Zinc etc.
  • Grinding or dispersing for medicine, food, cosmetics etc.
  • Make Ceramics products such as electronic ceramics, refractory ceramics and structural ceramics etc

5. Applicable Equipment:

Bar Pin Horizontal Grinding Mill

Turbine Horizontal Grinding Mill

Ring Type Grinder

Centrifugal Grinding Mill

Nano Grinder



6. Products Package

25kg drum+pallet,special packages can be customized.

95 Yttria Stabilized Zirconia Grinding Media 0.8 - 1.0mm Size For Dye Dispersion 0
