• Yittrium stabilized Zirconia Grinding Media beads Size 1.8-2.0 mm
  • Yittrium stabilized Zirconia Grinding Media beads Size 1.8-2.0 mm
Yittrium stabilized Zirconia Grinding Media beads Size 1.8-2.0 mm

Yittrium stabilized Zirconia Grinding Media beads Size 1.8-2.0 mm

Product Details:

Place of Origin: Shanxi, China
Brand Name: Zirnano
Certification: ISO9001, IS014001
Model Number: 0.1mm-50mm

Payment & Shipping Terms:

Minimum Order Quantity: 25kgs
Price: Negotiation
Packaging Details: 25kgs barrels+Pallet
Delivery Time: 5-20 days
Supply Ability: 500mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Zirconia Milling Beads Color: Shiny White
Shape: Sphere Bulk Density: 3.7g/cm3
True Density: 6.0g/cm3 Harness: 1100HV
Impact Strength: 2.0KN Abrasion Loss: 0.5ppm/h
Chemical Index: ZrO2 95%Min., Y2O3 4.5%Min. Port Of Loading: Tianjin/Qingdao, China
Package: 25kgs Barrels+Pallet Application: Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc
High Light:

zirconium oxide beads

,

zirconium oxide balls

Product Description

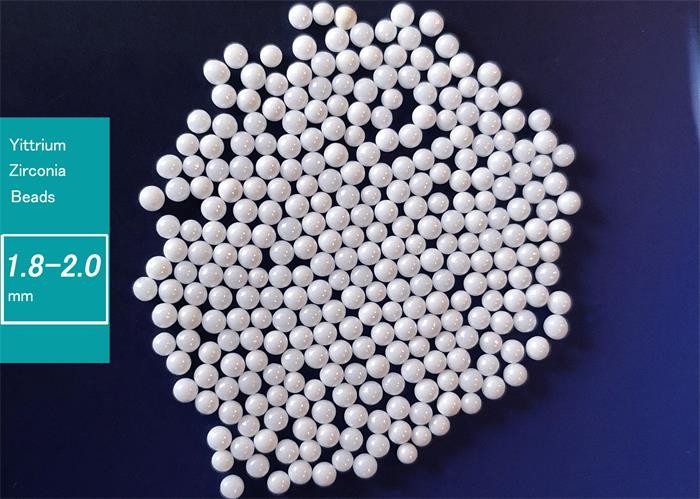

95 Yttria stabilized zirconia grinding media beads size 1.8-2.0mm

Yittrium stabilized Zirconia Grinding Media beads Size 1.8-2.0 mm 0

Zirconia balls grinding media is made of high-grade and nanometre Yttria stabilized zirconia powder in sintering method. This advanced precursor material guarantees excellent mechanical properties, outstanding wear resistance and good corrosion resistance. This high density bead is used to achieve maximum milling results at minimum product contamination rates.

High density media ideal for high energy mills, maximizing the productivity

Excellent wear resistance minimizes the beads/balls contamination during high speed milling

Yittrium stabilized Zirconia Grinding Media beads Size 1.8-2.0 mm 1

Manufacturing process: Sintering Method



Chemical composition ZrO2 95% Min. Y2O3 4.5% Min
Density 6.0g/cm³ Min.
Specific density 3.7g/cm³ Min.
Moh's hardness 9
Impact Strength 2.0KN (2mm)
Compressive Strength 5500MPa
Modulus of Elasticity 200Gpa
Thermal Expansion Coefficient 9.6 (20-400℃ )
Compressive strength 2300KN (Φ2.0mm)

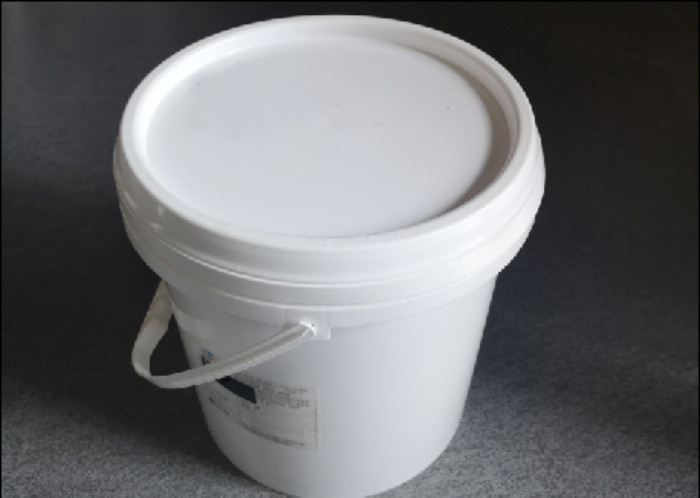

Package 25kg/barrel





SIZES Φ MM
0.1-0.2 0.2-0.3 0.3-0.4 0.4-0.6 0.6-0.8
0.8-1.0 1.0-1.2 1.2-1.4 1.4-1.6 1.6-1.8
1.8-2.0 2.0-2.2 2.2-2.4 2.4-2.6 2.6-2.8
2.8-3.0 4,5,6,7,8,9,10,12,15,17,20,25,30,40,50





Yttria stabilized ZIRCONIA GRINDING MEDIA price





Beads Diameter Quantity and Price

4, 5,6,7,8,9,10,12,15,

17,20,30,40,50 mm



25-100 kgs $27-30/ kgs FOB
101-500 kgs $24-27/ kgs FOB
Above 500 kgs

Contact us for a quote



Other Sizes

Contact us for a quote







Yittrium stabilized Zirconia Grinding Media beads Size 1.8-2.0 mm 2

  • Pigments and dyes: dispersing and grinding of titanium pigment, carbon black, inorganic pigment like iron oxide red; organic pigments like Phthalocyanine blue, permanent violet.

  • Paints and coatings materials: Anti-corrosion industrial paint, plastic paint, emulsion paint, printing ink, ink-jet ink, paper coating material, tape and disk coating.

  • Pesticide: pesticides, herbicides, antiseptic, seed coating agent.

Yittrium stabilized Zirconia Grinding Media beads Size 1.8-2.0 mm 3

  • Vertical sand mill
  • Horizontal sand mill
  • Basket mill
  • Ball mill
  • Vibration mill, etc.





Our Services



1. One of TOP 10 Zirconia milling media manufacturers in China, ISO 14001, ISO9001 Certificated factory.

2. Treat all clients with sincerity, no imaginary higher price.

Even if you’re the first time to buy and know little about the Zirconia grinding beads, you can get the same price as the experienced clients.

3. Full range of Zirconia beads products: all sizes and all kinds of ceramic grinding beads, adapted to various working conditions.

4. Strict Quality Control: Quality inspection is carried out in every step of our production, before entering warehouse and before loading. SGS third party inspection is available.

5. Free Sample Service: In order to help clients know more about our Zirconia milling media before placing orders, 200g free sample is available for clients to test.

6. Customized/OEM available, size, shape, Packages could be made against customer’s requirements.



If you're looking for zirconia grinding beads, contact us to get more details and updated price.



Beside the Yittrium Zirconia beads, we also supply:

  • Cerium stabilized zirconia grinding beads
  • Zirconium silcate grinding beads
