0.1mm - 50mm Zirconia Milling Media , Zirconia Ceramic Balls 2.0KN Impact Strength
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, IS014001 |
| Model Number: | 0.1mm-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kgs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kgs barrels+Pallet |
| Delivery Time: | 5-20 days |
| Supply Ability: | 500mt per year |
|
Detail Information |
|||
| Commodity Name: | Zirconia Milling Beads | Color: | Shiny White |
|---|---|---|---|
| Shape: | Sphere | Bulk Density: | 3.7g/cm3 |
| True Density: | 6.0g/cm3 | Harness: | 1100HV |
| Impact Strength: | 2.0KN | Abrasion Loss: | 0.5ppm/h |
| Chemical Index: | ZrO2 95%Min., Y2O3 4.5%Min. | Port Of Loading: | Tianjin/Qingdao, China |
| Package: | 25kgs Barrels+Pallet | Application: | Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc |
| High Light: | zirconia grinding media,zirconia ceramic balls |
||
Product Description

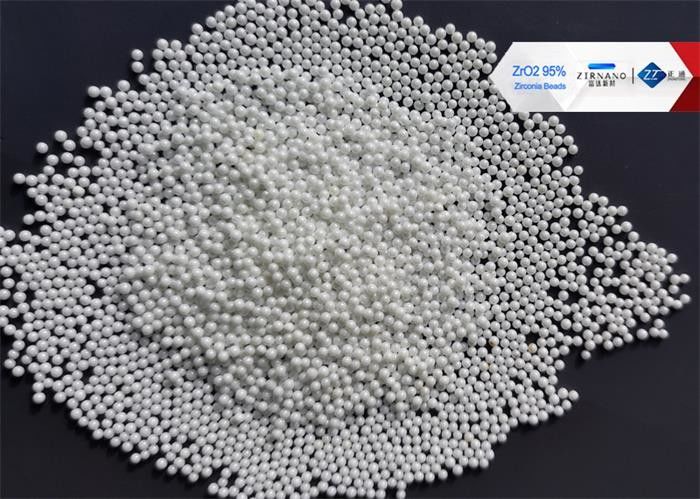

Zirconia beads milling media is produced by sintering method, with ZrO2 95% Min., It is of high strength, high toughness, wear-resistant, high hardness, corrosion resistance, ultra-smooth surface and very low wear abrasion features etc. Widely used in various grinding and dispersion conditions, is high quality milling media
Manufacturing process: Sintering Method
| Chemical composition | ZrO2 95%Min. Y2O3 4.5%Min |
| Density | 6.0g/cm³ |
| Specific density | 3.7g/cm³ |
| Wear rate per ton | 0.03kg/h |
| Moh's hardness | 9 |
| Color | Shiny white |
| Shape | Sphere/ Bead / Ball |
| Package | 25kg/barrel |
| SIZES Φ MM | ||||
| 0.1-0.2 | 0.2-0.3 | 0.3-0.4 | 0.4-0.6 | 0.6-0.8 |
| 0.8-1.0 | 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 |
| 1.8-2.0 | 2.0-2.2 | 2.2-2.4 | 2.4-2.6 | 2.6-2.8 |
| 2.8-3.0 | 4,5,6,7,8,9,10,12,15,17,20,25,30,40,50 | |||
Features
-
High density and high grinding efficiency
-
High strength and hardness, long working life
-
High Wear-resisting property, zero pollution
-
Smooth surface, easy to clean, reduce the internal friction between beads and improve the material flow efficiency
- Electronic material (Such as BaTiO3,BaCO3), Magnetic bands, Lithium Battery superfine grinding,
- Paint,pigment,Coatings, Ink dispesing and superfine grinding,
- Ceramic glaze(zirconia sand) superfine grinding,
- Food, Medication, Pesticides, Cosmetic dispersing and superfine grinding.
- Bar pin horizonal grinding mill
- Turbine horizonal grinding mill
- Ring-type grinding mill
- Centrifugal grinding mill
- Nano Grinder
Our Services
1. One of TOP 10 Zirconia milling media manufacturers in China
2. Treat all clients with sincerity, no imaginary higher price.
Even if you’re the first time to buy the Zirconia beads milling media, you can get the same price as the experienced clients.
3. Full range of Zirconia beads products: all sizes and all kinds of ceramic grinding beads, adapted to various working conditions.
4. Fast response within 24 Hours
5. Free Sample Service: In order to help clients know more about our Zirconia milling media before placing orders, 200g free sample is available for clients to test.
