• ZrO2 80 % Zirconia Ceramic Balls IS014001 Certificated 3.9g / Cm3 Bulk Density
ZrO2 80 % Zirconia Ceramic Balls IS014001 Certificated 3.9g / Cm3 Bulk Density

ZrO2 80 % Zirconia Ceramic Balls IS014001 Certificated 3.9g / Cm3 Bulk Density

Product Details:

Place of Origin: Shanxi, China
Brand Name: Zirnano
Certification: ISO9001, IS014001
Model Number: 0.1mm-50mm

Payment & Shipping Terms:

Minimum Order Quantity: 25kgs
Price: Negotiation
Packaging Details: 25kgs barrels+Pallet
Delivery Time: 5-20 days
Supply Ability: 500mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Cerium Stabilized Zirconia Ceramic Beads Color: Brown
Shape: Sphere Bulk Density: 3.9g/cm3
True Density: 6.1g/cm3 Harness: 1100HV
Impact Strength: 10.0KN 7mm Elastic Modulus: 200 Gpa
Chemical Index: ZrO2 80%Min., CeO2 20%Max. Port Of Loading: Tianjin/Qingdao, China
Package: 25kgs Barrels+Pallet Application: Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc
High Light:

zirconia grinding beads

,

zirconia ceramic balls

Product Description

ZIRCONIA MILLING MEDIA CeO2 RARE EARTH STABILIZED 80% ZrO2

ZrO2 80 % Zirconia Ceramic Balls IS014001 Certificated 3.9g / Cm3 Bulk Density 0

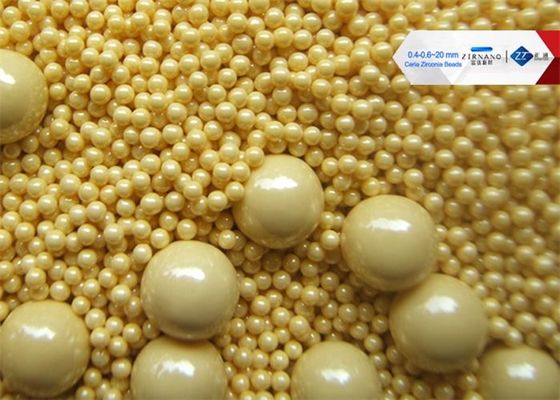

Zirconia milling media Ceria stabilized zirconia beads (rare earth) is brown, shiny milling media, also a cheaper zirconium oxide alternative for metal-free applications.

The 20% cerium oxide rare earth contributes to the highest density of zirconium oxide series beads.

Ceria stabilized zirconia milling media is widely used to mill the high hardness and viscosity slurry in high energy density bead mills.

ZrO2 80 % Zirconia Ceramic Balls IS014001 Certificated 3.9g / Cm3 Bulk Density 1

Chemical Composition ZrO2 CeO2
Wt% 80%Min. 20%Max.





Color Brown
Specific Gravity >6.2 kg/dm3
Bulk Density 3.9-4.2 kg/L
Micro hardness 1250 kg/mm2
Compressive Strength 190 kgf(2mm)
Wear Rate <7 g/T



Sizes (mm) Available
0.4-0.6 0.6-0.8 0.8-1.0 1.0-1.2 1.2-1.4 1.4-1.6
1.6-1.8 1.8-2.0 2.0-2.2 2.2-2.4 2.4-2.6 2.6-2.8
2.8-3.0 Special sized can be customized

ZrO2 80 % Zirconia Ceramic Balls IS014001 Certificated 3.9g / Cm3 Bulk Density 2

ZrO2 80 % Zirconia Ceramic Balls IS014001 Certificated 3.9g / Cm3 Bulk Density 3



ZrO2 80 % Zirconia Ceramic Balls IS014001 Certificated 3.9g / Cm3 Bulk Density 4

  • Long service life: 30 times of glass beads and 5 times of composite zirconium;

  • High grinding efficiency: 6 times of glass beads and 2 times of zirconium silicate beads;

  • The viscosity of the grindable slurry is high: viscosity up to 50,000 cps

ZrO2 80 % Zirconia Ceramic Balls IS014001 Certificated 3.9g / Cm3 Bulk Density 5

  • Pigments: metallic pigment, dark color organic pigments;
  • High viscous pastes: offset printing ink, adhesive and ceramic slurries;
  • White filler and coatings: titanium dioxide, Ground Calcium Carbonate (GCC) and Kaolin;
  • Metal minerails: gold, platinum, silver and lead/zinc.

Particularly suitable for the grinding of screen printing inks, offset inks, metallic pigments, heavy calcium, non-ferrous metals, medicine and food.

ZrO2 80 % Zirconia Ceramic Balls IS014001 Certificated 3.9g / Cm3 Bulk Density 6

Match for modern sander mills with high energy input and high shear.

ZrO2 80 % Zirconia Ceramic Balls IS014001 Certificated 3.9g / Cm3 Bulk Density 7
