95 Yttria Zirconia Beads Grinding Media 50mm Balls High Strength For Electronic

Minimum Order Quantity : Negotiable Price : Negotiable

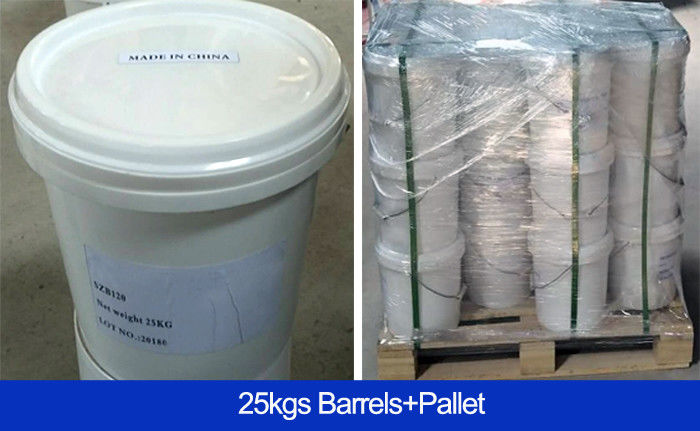

Packaging Details : 25kgs Barrels+Pallet Delivery Time : 3-10 days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 500mt per Year
Place of Origin: Shandong,China Brand Name: Zhengtong
Certification: ISO9001, IS014001 Model Number: 0.1-50mm

Detail Information

Product Name: Yttrium Stabilized Zirconium Grinding Balls Color: Milk White
Chemicals: ZrO2 95%Min., Y2O3 4.5%Min True Density: 6.0g/cm3
Bulk Density: 3.7g/cm3 Impact Strength: 2.0KN
Moh's Hardness: 8-9 Usage: Grinding &Dispersion
High Light:

95 Yttria Zirconia Beads Grinding Media

,

50mm Zirconia Beads Media

,

High Strength Zirconia Beads Media

Product Description

1. Product Description

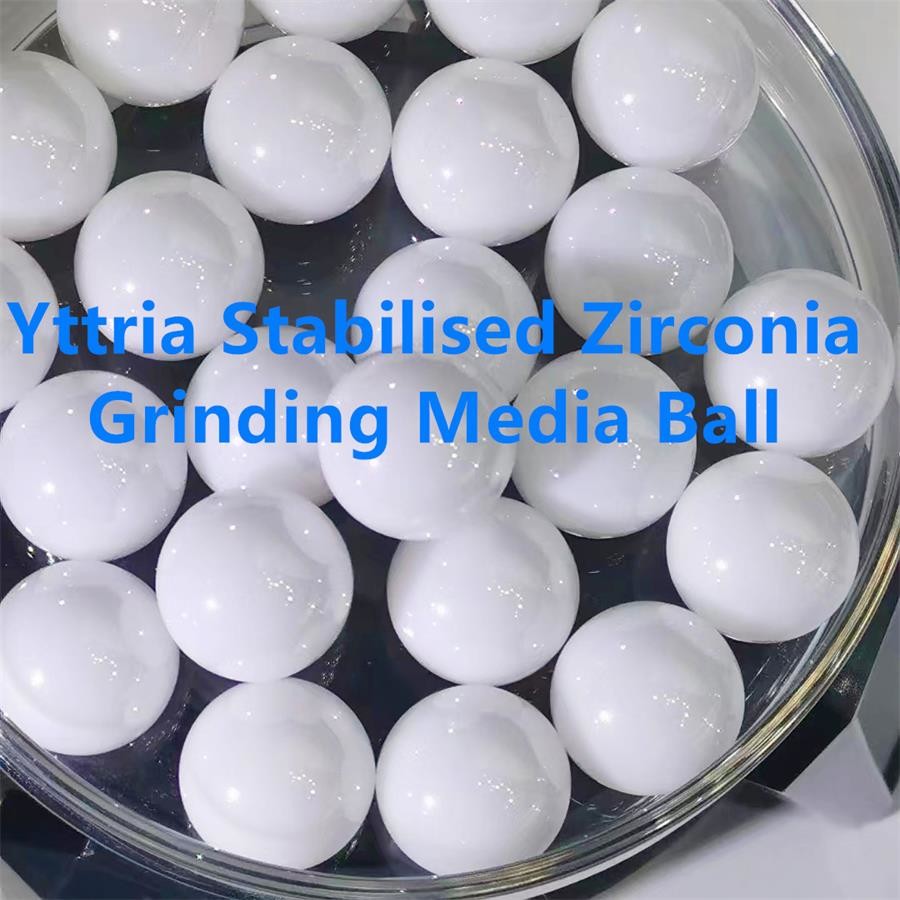

95 Yttria stabilized zirconia grinding ball is made of high purity fine zirconia powder as raw material, using yttrium oxide as stabilizer, and produced by spray granulation, isostatic pressing and high temperature sintering.
It has high strength, high toughness, high density, high wear resistance, high temperature resistance, corrosion resistance, non magnetic, electrical insulation, thermal expansion coefficient is close to steel, chemical stability and high grinding efficiency.

2. Main technical Data of 95 Zirconia Ceramic Beads

Item
Data

Composition
ZrO2 95 Min
Y2O3 4.5 Min
Hardness
1100HV

Mohs

9
True density
6.00g/cm3
Bulk density
3.7g/cm3

Compressive Strength

5500MPa
Roundness
98
Color
White/ivory



SIZES Φ MM

0.1-0.2

0.2-0.3

0.3-0.4

0.4-0.6

0.6-0.8

0.8-1.0

1.0-1.2

1.2-1.4

1.4-1.6

1.6-1.8

1.8-2.0

2.0-2.2

2.2-2.4

2.4-2.6

2.6-2.8

2.8-3.0

4,5,6,7,8,9,10,12,15,17,20,25,30,40,50



3. Advantages of 95 Zirconia Ceramic Grinding Media
1)High spherical degree, smooth spherical surface and milky white.
2)Excellent toughness, impact resistance, no break under high speed impact.
3)High wear resistance, extreme low wear rate, to prevent material contamination.
4)High grinding efficiency, extremely long service life and low comprehensive operating cost.
5)Suitable for high viscosity, wet grinding and dispersion operations.


4. Application of 95 Zirconia Oxide Ceramic Grinding Media
We recommend it to applications as follows: paint, pigment, coating, inks, dye, textile, printing and dyeing, magnetic materials, electronic materials, nano-materials, ceramic glaze, cosmetic, silicon oxide, food, medical and other special chemical industry.
