95 Yttria Ceramic Grinding Media 2.2mm Stabilized Zirconia For Paint

Minimum Order Quantity : Negotiable Price : Negotiable

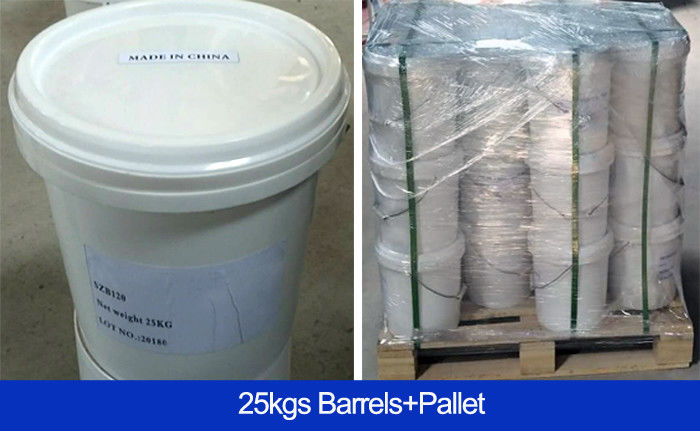

Packaging Details : 25kgs Barrels+Pallet Delivery Time : 3-10 days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1500mt per year
Place of Origin: Shandong,China Brand Name: Zhengtong
Certification: ISO9001, IS014001 Model Number: 2.0-2.2mm

Detail Information

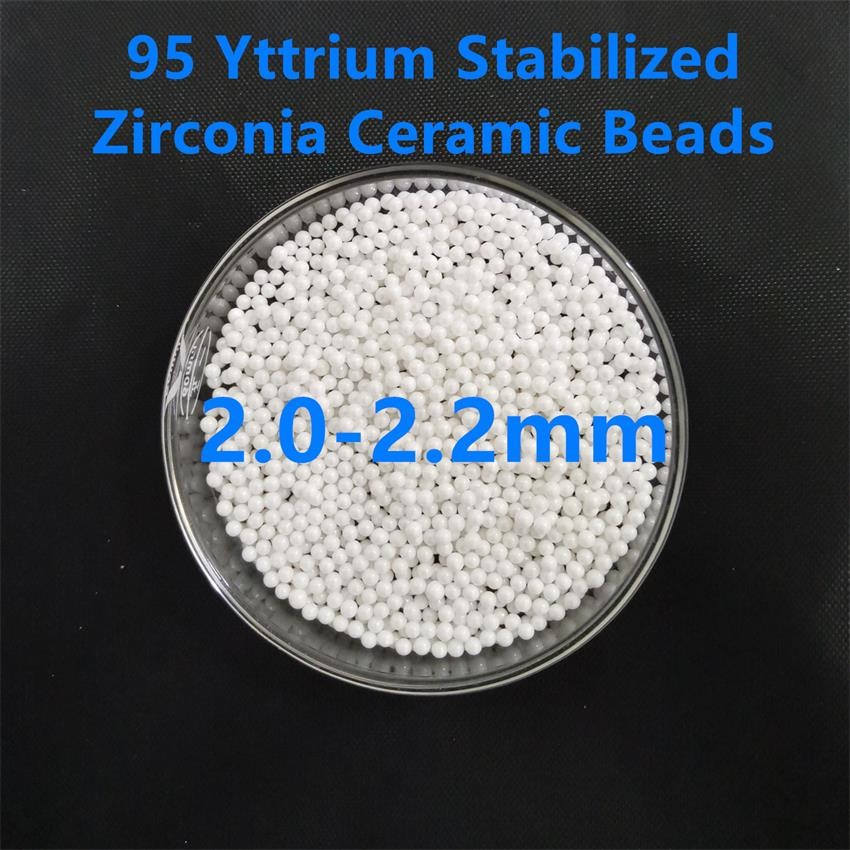

Product Name: Yttrium Stabilized Zirconium Grinding Balls Materials: Zirconia Ceramic
Color: Milk White Shape: Sphere
Bulk Density: 3.7g/cm3 True Gravity: 6.0g/cm3
Usage: Grinding &Dispersion Product Process: Sintering
High Light:

Yttrium Stabilized Zirconium Grinding Balls

,

2.2mm Ceramic Grinding Media

,

95 Yttria Ceramic Grinding Media

Product Description

1. Product Description

The content of zirconia beads is approximately 95%, so it is usually called "95 Zirconium Beads". With the rare earth yttrium oxide as stabilizer and the raw material of high whiteness and fineness, there will be no pollution to the grinding material.

With very low wear and high fracture toughness, TZP grinding media is widely applicable to various grinding and dispersion conditions, and to ensure the product's purity and life.

2. Main Technical Data of 95 Zirconia Beads

Commodity Typical Chemical Index Main Physical Index
Zirconia Grinding Beads ZrO2 ≥95% True Gravity ≥6.0g/cm3
Y2O3 ≥4.5% Bulk Density ≥3.7g/cm3
Others ≤0.5% Vicker Hardness ≥1100 HV
sintering process compressive strength ≥2.0KN Φ2mm





Particle Size
Φ0.1-0.2mm,Φ0.2-0.3mm,Φ0.3-0.4mm,Φ0.4-0.6mm,Φ0.6-0.8mm,Φ0.8-1.0mm,Φ1.0-1.2mm,
Φ1.2-1.4mm,Φ1.4-1.6mm,Φ1.6-1.8mm,Φ1.8-2.0mm,Φ2.0-2.2mm,Φ2.2-2.4mm,Φ2.4-2.6mm,
Φ2.6-2.8mm,Φ4mm,Φ5mmΦ,6mm,Φ7mm,Φ8mm,Φ9mm,Φ10mm,Φ12mm,Φ15mm,Φ17mm,
Φ20mm,Φ25mm,Φ30mm,Φ40mm,Φ45mm,Φ50mmetc.
Special products can be customized



3. Main Features of Zirconia Grinding Beads Ceramic Ball

1) High strength, HIGH density and high hardness
2) Good spherical degree and smooth surface;
3) High Wear-resisting property.
4) Easy clean,reduce the internal friction between beads and improve the material flow efficiency.





4. Main Applications of 95 Yttrium Stabilized Zirconia Ceramic Grinding Media

1) Paint,Coating,Ink and Dye;
2) Ceramic Inks & Electronic Paste;

3) Refractory materials,Magnetic materials;

4) Pigment,Textile and Printing;

5) Cosmetics & Medicine and Agrochemical industries;

6) Mine industry (Gold, Silver, Nickel, Zinc and Lead,etc.)

95 Yttria Ceramic Grinding Media 2.2mm Stabilized Zirconia For Paint 0

5. Application Equipment of 95 Zirconia Beads

1)Vertical sand mills,
2)Horizontal sand mills,
3)Mixers,
4)Ball mills and
5)Basket sand mills.
