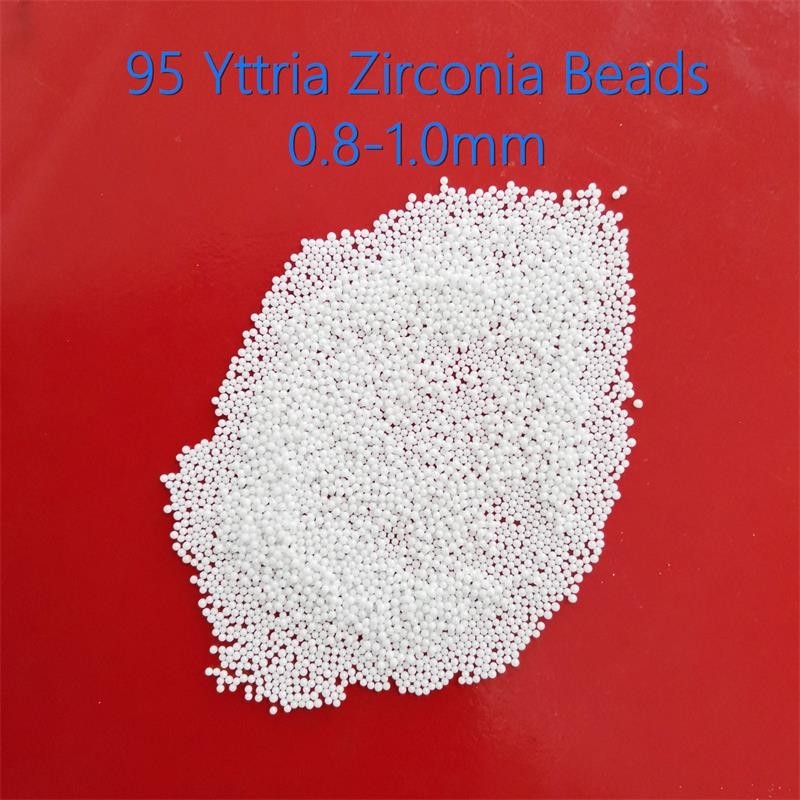

95% Yttrium Stabilized Zirconia Ceramic Bead for Grinding/Dispersing

Product Details:
Place of Origin: Henan,China
Brand Name: Zhengtong
Certification: ISO9001, IS014001
Model Number: 0.8-1.0mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

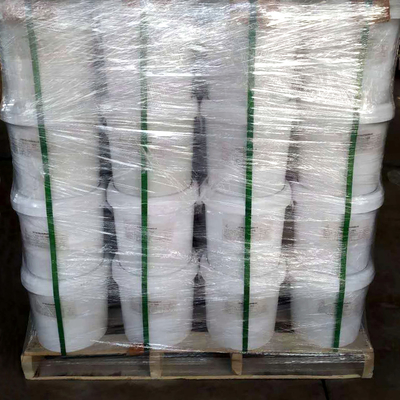

Packaging Details: 25kgs Barrels+Pallet
Delivery Time: 2-20 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500mt per Year

Detail Information

Commodity Name: Yttrium Stabilized Zirconia Ceramic Bead Color: Milk White
Shape: Sphere Bulk Density: 3.7g/cm3
True Density:: 6.0g/cm3 Vickers Hardness: 1100HV
Package: 25kgs Barrels+Pallet Port Of Loading: Tianjin/Qingdao, China

Product Description

1. Product Description

Zirconia Ceramic beads grinding media is produced from good quality Yttria stabilized zirconia powder, smooth sphere surface, high density, is an ideal grinding media in grinding and dispersing applications.



2. Main Technical Data of 95 Ziconia Ceramic Beads Grinding Media

Commodity

Process

Physical Index

95 Zirconia
Beads
Sintering Process

ZrO2 ≥94.5%
Y2O3 ≥5%
Others ≤0.5%

True Gravity≥6.0g/cm3
Bulk Density≥3.7g/cm3
Hardness :9 Mohs
Compressive Strength≥2.0KN Φ2mm

size

Φ0.1-0.2mm,Φ0.2-0.3mm,Φ0.3-0.4mm,Φ0.4-0.6mm,

Φ0.6-0.8mm,Φ0.8-1.0mm,Φ1.0-1.2mm,Φ1.2-1.4mm,

Φ1.4-1.6mm,Φ1.6-1.8mm,Φ1.6-1.8mm,Φ2.0-2.2mm,

Φ2.2-2.4mm,Φ2.4-2.6mm,Φ2.6-2.8mm ,Φ4mm,Φ5mm,

Φ6mm,Φ7mm,Φ8mm,Φ9mm,Φ10mm,Φ12mm,Φ15mm

Φ17mm,Φ20mm,Φ25mm,Φ30mm,Φ40mm,Φ45mm,Φ50m...

Special products can be customized



3. Main Characteristic of of Zirconium Ceramic Grinding Media

a. Good roundness, smooth surface

b. High strength and hardness

c. High density

d. High Wear-resisting property.

e. Easy cleaning,Reduce the internal friction between beads and improve the material flow efficiency.



4.Applications of Zirconium Ceramic Grinding Media



It is especially suitable for ultra-fine grinding process where requires “zero pollution”.

  • Dye Grinding Field

  • Grinding and dispersion of coatings and paints

  • Inks and pigments

  • Textile dyes

  • Battery Material/Lithium Battery

  • Medcine/Pesticides

95% Yttrium Stabilized Zirconia Ceramic Bead for Grinding/Dispersing 0

5. Applicable Equipment of Zirconia Ceramic Grinding Media

  • Nano grinder.

  • Horizonal Grinding Mill

  • Vertical Grinding Mill

  • Basket-type Grinding Mill
