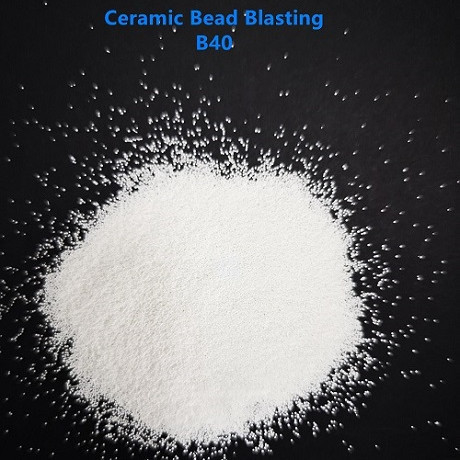

Ceramic Bead Blasting B40 For Open Sandblasting Machine 3C Product 60-66% ZrO2

Product Details:
Place of Origin: Shanxi,China
Brand Name: Zirnano
Certification: ISO9001, IS014001
Model Number: B20-B505
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: Negotiable

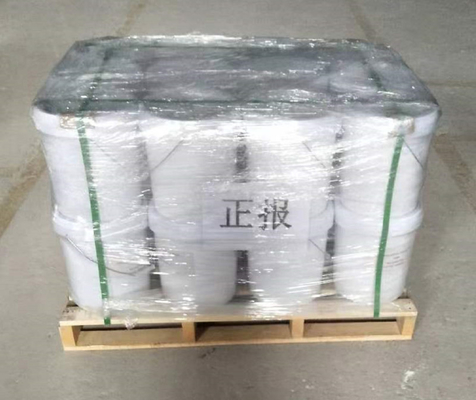

Packaging Details: 25kgs Barrels+Pallet
Delivery Time: 3-5 days after order confirmed
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 200mts per month

Detail Information

Product Name: Metal Surface Treatment Ceramic Bead Blasting Media Shape: Solid Round Ball
Main Material: 60-66% ZrO2 Bulk Density: 2.3 G/cm3
Vicker Hardness: 700HV True Gravity: 3.85 G/cm3
Usage: Open Sandblasting Machine

Product Description

1. Product Description

The ceramic beads is made from imported zirconium sand, melting and blending in the high temperature mine heat furnace, then made to micro beads by blowing technology with high hardness, good elasticity, high gloss and high impact strength. It is sand- blasting media for metal surface treatment and shot peening media for the aerospace industry and the automotive industry.

It including B series sandblasting media and Z series shot peening media.It including B series sandblasting media and Z series shot peening media.



2. Technical Parameters

Chemical & Physical Index



Chemical Index Production Process True Density Bulk Density Hardness
Vickers Mohs Rockwell

ZrO2 : 60-66%

SiO2: 25-30%

Al2O3: 7-13%

Smelting 3.85 2.3 700HV 7 60HRC



Sizes



B20: 0.600-0.850mm B80: 0.125-0.212mm B170: 0.045-0.090mm
B30: 0.425-0.600mm B100: 0.106-0.180mm B205:0.000-0.063mm
B40: 0.250-0.425mm B120: 0.063-0.125mm B400: 0.030-0.063mm
B60: 0.150-0.300mm B150: 0.053-0.106mm B505: 0.010-0.063mm



Features of Ceramic beads



1. Consistency of spherical shape and sizes provides smooth sating surface finish and consistent results from the first part to the last.
2.Outstanding elasticity provides a high impact force.
3. High wear resistance, high impact resistance, and low dust.
4. Cost-effective compared to glass beads, media consumption reduced up to 90% Vs glass Beads.



Parameters- (Comparing with glass beads and steel shot)



Parameters Ceramic Beads Glass Beads Steel Shot
Chemical index ZrO2+SiO2+Al2O3 SiO2+NaO2 C+Si+Mn+S+P
Vickers Hardness ≈700HV ≈560HV ≈700HV
Rockwell Hardness ≈60HRC ≈46HRC ≈60HRC
True Density 3.85g/cm3 2.6 g/cm3 7.8 g/cm3
Size range 0.04-0.85mm 0.045-0.85mm 0.05-0.60mm
Shape spherical spherical fillet
Dust Pollution Very little big medium
Metal Pollution no no spherical
Recycling times Multi-time 1-2 times Multi-time
Work life Long Low 1/25 of ceramic beads Long
Power consumption Low Low High
Equipment wear loss Low Low High
Sandblasting effect High finish, no discoloration High finish, whitish Low finish, darken



3. Applications

1) 3C products - Sandblasting Finishing

2) Aerospace industry-Blasting finishing

3) Automotive industry-sandblasting reinforcement

4) Kitchen Industry-Sandblasting finishing

5) Machinery, Medical Instrument - Sandblast finishing

6) Casting, forging , welded, heat-treated parts - Sandblast Cleaning

7) Pipeline - Sandblast Cleaning

8) Molds - Sandblast cleaning

9) Electroplating, painting, anode-Surface Pre-treatment.

10) Hardware parts - Sandblast to improve lubrication conditions.

Ceramic Bead Blasting B40 For Open Sandblasting Machine 3C Product 60-66% ZrO2 0





4. Our Service
1)Free Samples -within 1kgs
Different blasting workpieces, Different requirements for ceramic beads.
Our factory can provide consult solution, suggest the ceramic beads sizes according to the workpiece you handle and provide 1kgs ceramic beads samples for free.
2)OEM customize same ceramic beads with your samples or requirements.
Our factory has our own test lab., with high precision chemical and particle size detection instruments. You can send ceramic beads samples, then we will test and analysis it and customize same ceramic beads with your samples or according to your customer requirements.
