Product Details:
|
|
Place of Origin: | Shanxi, China |
---|---|
Brand Name: | Zirnano |
Certification: | ISO9001, IS014001 |
Model Number: | 0.1mm-50mm |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 25kgs |
Price: | Negotiation |
Packaging Details: | 25kgs barrels+Pallet |
Delivery Time: | 5-20 days |
Supply Ability: | 500mt per year |
Detail Information |
|||
Commodity Name: | Zirconia Milling Beads | Color: | Shiny White |
---|---|---|---|
Shape: | Sphere | Bulk Density: | 3.7g/cm3 |
True Density: | 6.0g/cm3 | Harness: | 1100HV |
Impact Strength: | 2.0KN | Abrasion Loss: | 0.5ppm/h |
Chemical Index: | ZrO2 95%Min., Y2O3 4.5%Min. | Port Of Loading: | Tianjin/Qingdao, China |
Package: | 25kgs Barrels+Pallet | Application: | Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc |
High Light: | Yttrium Stabilized Zirconia Grinding Media,95 Zirconia Grinding Media,6.0g/Cm3 zirconia media |
Product Description

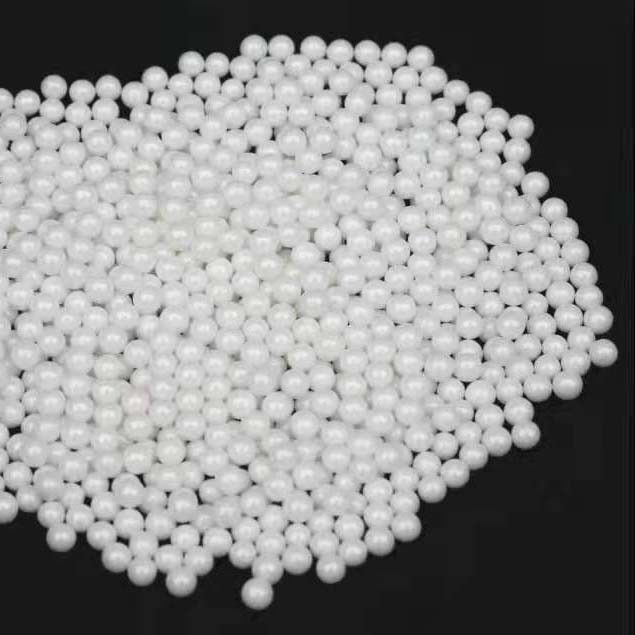

95 Ceramic beads Yttrium Stabilized Zirconia media Density 6.0g/Cm3 for minerals and ores
Yttrium Stabilized Zirconia media also called Ceramic beads , it is made of ultra-fine, high activity zirconia powder by sintering process, with Yttrium oxide as stabilizer and ZrO2 95% Min.
The beads is of low wear, and no pollution. Widely used in some minerals and ores, especially for non-metallic minerals.
Manufacturing process: Sintering Method
Chemical composition | ZrO2 95% Min. Y2O3 4.5% Min |
Color | Shiny white |
Shape | Sphere/ Bead / Ball |
Density | 6.0g/cm³ Min. |
Specific density | 3.7g/cm³ Min. |
Moh's hardness | 9 |
Impact Strength | 2.9KN (2mm) |
Compressive Strength | 5500MPa |
Modulus of Elasticity | 200Gpa |
Package | 25kg/barrel |
SIZES Φ MM | ||||
0.1-0.2 | 0.2-0.3 | 0.3-0.4 | 0.4-0.6 | 0.6-0.8 |
0.8-1.0 | 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 |
1.8-2.0 | 2.0-2.2 | 2.2-2.4 | 2.4-2.6 | 2.6-2.8 |
2.8-3.0 | 4,5,6,7,8,9,10,12,15,17,20,25,30,40,50 |
95 Yttrium stabilied zirconia beads grinding media is waidely used for
Non-metallic minerals grinding.
Like Graphite ore, phosphate rock, kaolin, illite, magnesium hydroxide, quartz, mica
The 95 ceramic beads grinding media can make the ore grade purer and the particle size finer.
