Low Breakdown Rate Shot Blasting Abrasive

Product Details:
Place of Origin: Shanxi,China
Brand Name: FUDA
Certification: ISO9001,ISO14001
Model Number: B20,B30,B40,B60,B80,B100,B120,B150,B170,B205,B400
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet
Delivery Time: 3-10 days depending on the order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200mt per month

Detail Information

Product Name: Ceramic Shot Peening Shape: Spherial
True Specific Gravity: 3.85g/cm3 Vicker Hardness: 700HV
Usage: Shot Peening Loading Port: Tianjin Or Qingdao,China
High Light:

shot blasting abrasive


abrasive shot blasting

Product Description

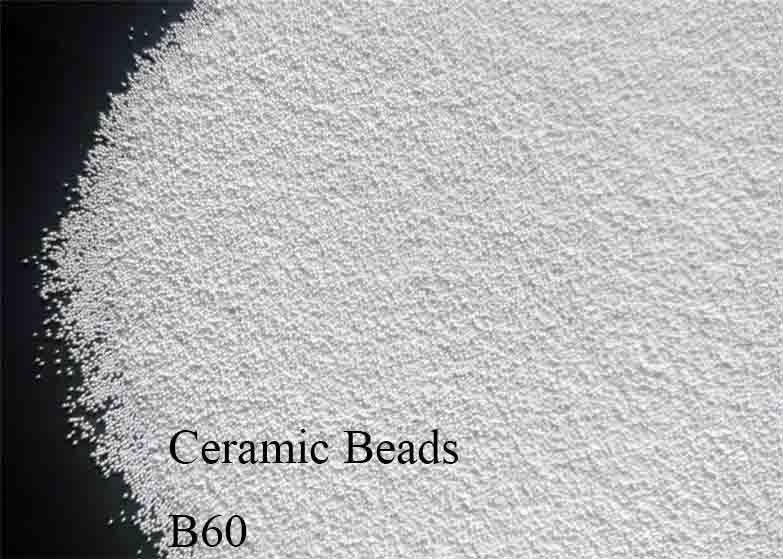

Low Breakdown Rate 62% ZrO2 Zirconium Silicate Ceramic Beads B60 for shot peening


1. Description of Zirconium Solicate Ceramic Beads

Zirconium Silicate Ceramic Beads are spherical and white,it has wide particle size,its

outstanding toughness,hardness,good elasticity ensures it to keep its initial shape after long

time operation.

It is widely used in shot peening application. Compared with the glass beads,its lower breakdown

rate could offer consistent peening effect.

2. Main Technical Index of Zirconium Silicate Ceramic Beads


Commodity Main Chemical Index Main Physical Index

Zirconium Silicate

Ceramic Beads

(Melting Method)

ZrO2 60-66% Bulk Density: 2.3g/cm3
SiO2 25-30% True Specific Gravity: 3.85 g/cm3
Al2O3 7-13%

Vickers Hardness: 700 kg /mm2


Particle Size
B20: 0.600-0.850mm B100: 0.125-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.125-0.250mm B205: 0.000-0.063mm
B80: 0.180-0.250mm B400: 0.030-0.063mm
Remark: Special specification can be customized


3. Product Features of Zirconium Silicate Ceramic Beads


High Hardness and Good Elasticity

Ceramic beads has smooth surface and good elasticity,which ensures it is able to be rebounded in

multi-angles during the peening process,especially suitable for the Light Metal such as aluminium,

aluminium alloy,titanium alloy etc.;


High Efficiency &High Price/Performance ratio

The greater density of ceramic beads makes it higher modulus of elasticity and greater impact energy,

it will reduce shot peening pressure and energy consumption to get the same shot peening effect.

Compared to glass beads, the service life of ceramic beads could be prolonged at least 20- 30 times.

The workpiece treated by ceramic beads will achieve better visual effect and texture as well as lower

toughness compared with the one treated by glass beads.


No Ferrous Contamination

Ceramic Beads contains 60-66% ZrO2,there is no ferrous contamination to the surface of treatment,

its good spherical will also not damage the peening equipment;

No Hidden Silicosis danger

Its lower breakdown rate offers clean working condition to the operator, people will not concern about

the dust and hidden silicosis danger.


4. Main Application of Zirconium Silicate Ceramic Beads


Shot peening in aviation and automotive industries such as automotive aluminium hubs;

Low Breakdown Rate Shot Blasting Abrasive  0

Surface finishing for light metal and plastic parts such as 3C products and medical instruments etc.;


Removal the oilstains,oxide scale,and other impurities from various glass- making moulds, rubber tire moulds;

Low Breakdown Rate Shot Blasting Abrasive  1

Surface Cleaning for various pipes such as steel pipes,copper pipes etc.,

Low Breakdown Rate Shot Blasting Abrasive  2

5. Applicable Equipment:

Manual Sandblasting machine;

Automatic Blasting Machine;

Open Blasting Machine;

Sandblasting Room


6. Product Package:
 2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
Low Breakdown Rate Shot Blasting Abrasive  3

7. Why Choose Us?

Professional manufacturer,Providing good products with stable quality & favorable price;


Equipped with the most advanced production line and testing equipments,certificatd by



Being the stable supplier of Foxconn,Samsung,products has exported to USA,Vietnam,

South Korea,Japan etc.
