No Ferrous Contamination Ceramic Blasting Media B20 B40 B60 B205 For Medical Instruments
Product Details:
| Place of Origin: | China |
| Brand Name: | ZHENGTONG |
| Certification: | SGS,ROHS |
| Model Number: | B60,B120,B170,B205 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100kgs |
|---|---|
| Price: | By negotable |
| Packaging Details: | 25kgs Barrel+ Pallet or Woodencase |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000mts Annualy |
|
Detail Information |
|||
| Product Name: | Ceramic Beads Blasting | Commodity: | Ceramic Blasting Media |
|---|---|---|---|
| Color: | White | Applications: | Surface Finish |
| Mohs Hardness: | 7-8 Mohs | Vicker Hardness: | 700HV |
| Bulk Density: | 2.3g/cm3 | True Gravity: | 3.85 G/cm3 |
| Shape: | Round Solid Beads | Sample: | Free |
| High Light: | No Ferrous Contamination Ceramic Blasting Media,Ceramic Blasting Media B20 B40,B205 Ceramic Bead Blasting |
||
Product Description

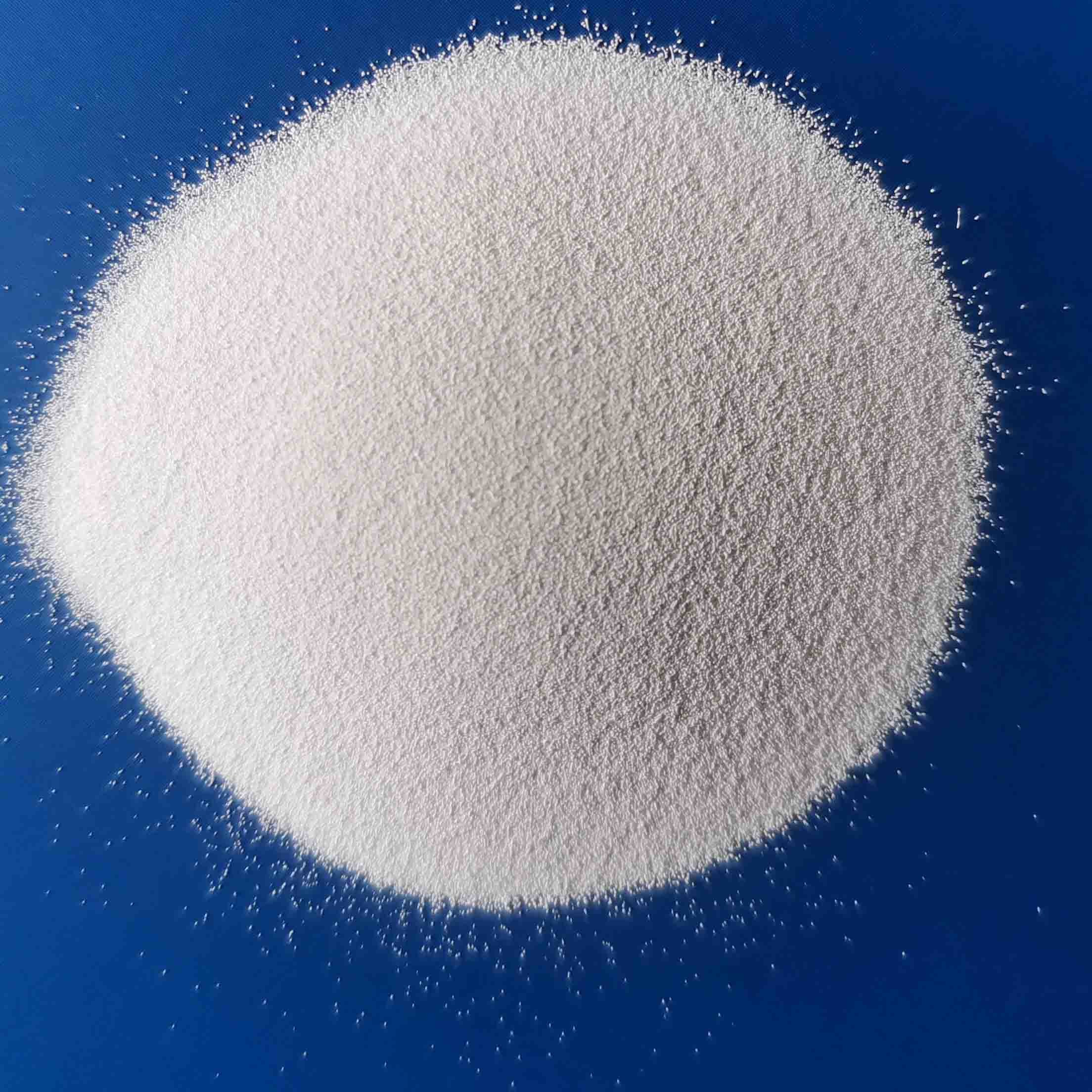

No Ferrous Contamination B20 B40 B60 B120 B205 Ceramic Blasting Media for Medical Instruments
1. Product Description of Ceramic Blasting Media
Ceramic Blasting Media is a highly efficient and cost-effective product in blasting industry.
It selects the high quality zircon sand as main raw material,then fused in an arc furnace under high
temperature over 2000 degrees. It has the outstanding features of high hardness,high strength,high
elasticity,which is most suitable for metal surface finish.
Ceramic beads can be used for a variety of blasting applications, providing a superior surface finish
and a clean working environment,which ensures the worker escaping from the hidden danger of
silicosis,it is one clean and green blasting media and also the ideal substitute for glass beads.
2. Main Technical Data of Ceramic Blasting Media
| Particle Size | ||||
| B20 | B80 | B150 | Z100 | Z425 |
| 600-850μm | 180-250μm | 63-106μm | 100-150μm | 425-600μm |
| B30 | B80 | B170 | Z150 | Z600 |
| 425-600μm | 180-250μm | 45-90μm | 150-210μm | 600-850μm |
| B40 | B100 | B205 | Z210 | Z850 |
| 250-425μm | 125-180μm | 0-63μm | 210-300μm | 850-1180μm |
| B60 | B120 | B400 | Z300 | / |
| 125-250μm | 63-125μm | 30-63μm | 300-425μm | / |
| Remark: Special specification can be customized | ||||
3. Main Applications
Surface treatment for medical instruments and implants
Surface shot peening for Automotive such as automotive engines,springs etc.
Surface cleaning for glass-bottle molds,tire molds,stamping molds...
Surface finish for 3C products,golf-head,Outdoor fitness equipment...
4. Main Features of Ceramic Blasting Media
High strength and wear resistance
high hardness and high elasticity
acid and alkali resistance
Little dust generation in the whole blasting process,brighter working condition
No-ferrous contamination and little damage to the blasting equipment
5. How to select the high quality Ceramic Blasting Media?
Seen from the appearance,good quality ceramic beads has higher sphericity and uniform color,which can be
judged by naked eye or microscope;
Seen from the cleanliness: ceramic beads with high cleanliness will sink to the bottom after being poured into
the water, and the water is still clear; Otherwise, the water will be turbid.
