60-66% ZrO2 Ceramic Beads Blasting B120 B170 B205 B400 B505 For Matte Surface Finish
Product Details:
| Place of Origin: | China |
| Brand Name: | ZHENGTONG |
| Certification: | SGS,ROHS |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100kgs |
|---|---|
| Price: | By negotiable |

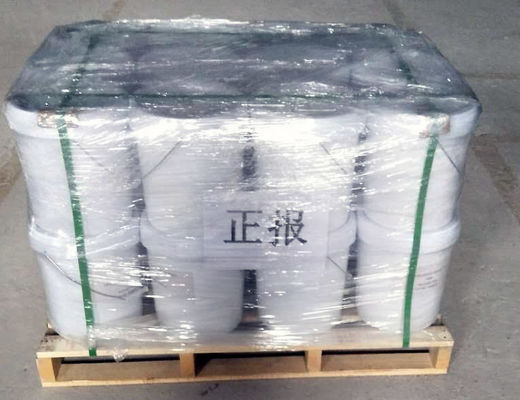

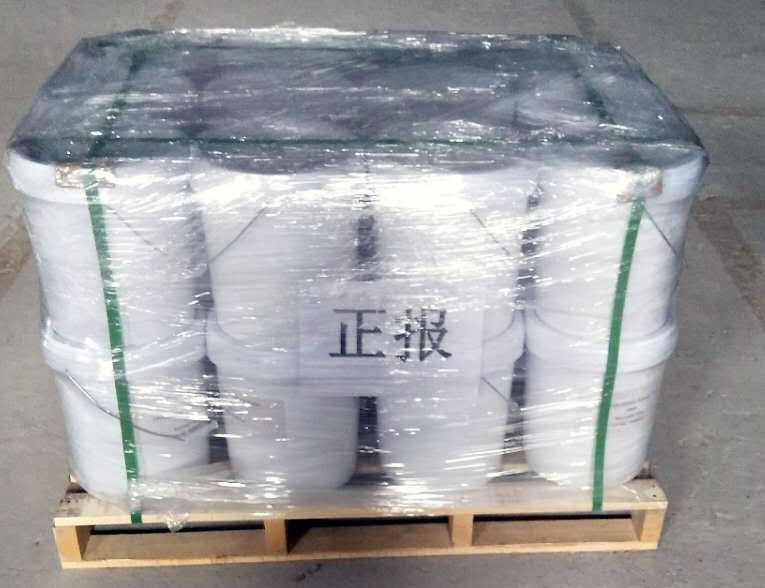

| Packaging Details: | 25kgs barrel+ Pallet or woodencase |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000mts annualy |
|
Detail Information |
|||
| Commodity: | Ceramic Blasting Media | Applications: | Surface Finish |
|---|---|---|---|
| Specification: | B20,B30,B40,B60,B80,B100,B120,B150.B170,B205,B400,B505 | Vicker Hardness: | 700HV Min |
| Mohs Hardness: | 7-8 Mohs | Chemical Index: | 60-66% ZrO2, 25-30% SiO2, 7-13%Al2O3 |
| Bulk Density: | 2.3 G/cm3 | True Gravity: | 3.85 G/cm3 |
| High Light: | ZrO2 Ceramic Beads Blasting,Ceramic Beads Blasting B120,B505 Ceramic Blasting Media |
||
Product Description
60-66% ZrO2 Ceramic Beads Blasting B120 B170 B205 B400 B505 for Matte Surface Finish

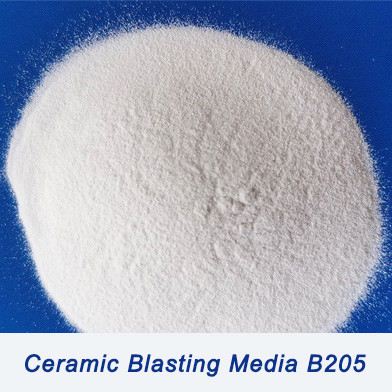

1. Product Description of Ceramic Beads Blasting Media
Ceramic Blasting Media is one clean and efficient blasting media,with hardness 7-8 Mohs.
It is fused by high quality zircon sand as main materials,then fused in high temperature over 2000 degrees,
and finally made into different size by special technology.
Ceramic beads is the ideal substitute for glass beads,its service life can be prolonged 25 times compared
with glass beads. It also has the outstanding characteristics of high hardness,high strength,high elasticity,
which is mostly suitable for the metal surface finishing.
2. Main Technical Data of Ceramic Blasting Media
| Commodity | Chemical Index | Physical Index |
Ceramic Blasting Media |
ZrO2 60-66% | Bulk Density: 2.3 g/cm3 |
| SiO2 25-30% | True Gravity: 3.85 g/cm3 | |
| Al2O3 7-13% | Vicker Hardness≥ 700HV | |
| Specification | B20: 0.600-0.850mm | B120: 0.063-0.125mm |
| B30: 0.425-0.600mm | B150:0.053-0.106mm | |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm | |
| B60: 0.150-0.300mm | B205: 0.000-0.063mm | |
| B80: 0.125-0.212mm | B400: 0.030-0.063mm | |
| B100: 0.106-0.180mm | B505: 0.010-0.030mm | |
| Special size can be customized accordingly. | ||
3. Main Applications
B40 for Surface Cleaning: glass-bottle molds cleaning,tire molds cleaning
B60 B80 B100 B120 B205 for Surface Finishing:3C products and its accessories, watch case,Titanium
alloy Bicycle frame...
B170 for Surface Pretreatment: pretreatment before anodizing,electroplating
Z300,Z210 for Surface Shot Peening in automotive and aerospace industry...
4. How to choose high-quality ceramic beads?
Testing the service-life of ceramic beads: tested by traditional owen testing machines as well as
pneumatic sandblasting and crushing tests, which can intuitively measure the beads’ service life ;
Or directly evaluate its normal consumption in a certain period on the customer's production equipment;
Testing the chemical composition: Zirconium oxide is the main carrier during the impact process,
its outstanding features of good toughness and impact resistance ensures the integrity of the morphology.
Particle Size Distribution: The particle size of ceramic beads directly affects the roughness of sandblasting,
and both too high and too low can have adverse effects. Meanwhile, the width of particle size distribution affects
the stability of blasting’s roughness. The narrower the particle size distribution is, the more uniform the particles
are, and the more conducive to stabilizing the sand blasting quality.
Morphology testing: The morphology of the ceramic beads has a significant impact on the surface glossiness
of sandblasting. The better the sphericity, the higher the glossiness of the sandblasted surface will be achieved.
