High Hardness B80 Zirconia Ceramic Bead Blasting For 3C Products Sandblasting for Sandblasting Machine

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 25kgs Barrels+Pallet Delivery Time : 3-7 days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 3000mts per year
Place of Origin: China Brand Name: Zhengtong
Certification: ISO9001, IS014001 Model Number: B20-B505

Detail Information

Product Name: Ceramic Bead Blasting Media Model: B20/B40/B60/B80/B100/B120/B150/B170/B205/B400/B505
Color: White Main Chemicals: 60-66% ZrO2
True Density: 3.85g/cm3 Bulk Density: 2.3 G/cm3
Vicker Hardness: 700HV Usage: Sand Blasting,cleaning, Polishing

Product Description

1. Product Description of Ceramic Beads Blasting Media

Ceramic beads blasting media was made by zirconium silicate powder through a unique formula, special production process and pretreatment, then  made by over 2000°C high temperature phase method. Especially it suitable for the shot blasting during the process of metal parts production and maintenance and peen forming of light alloy components.



2. Specification of Ceramic Beads Blasting Media

Product

Process

Specific Density

Bulk Density

Ceramic beads

Electro-fusing

3.85 (g/cm³)

2.3 (g/cm³)

Chemical Components

ZrO2 62-68%,SiO2 25-30%,Al2O3 7-13%,Other 1% Max.

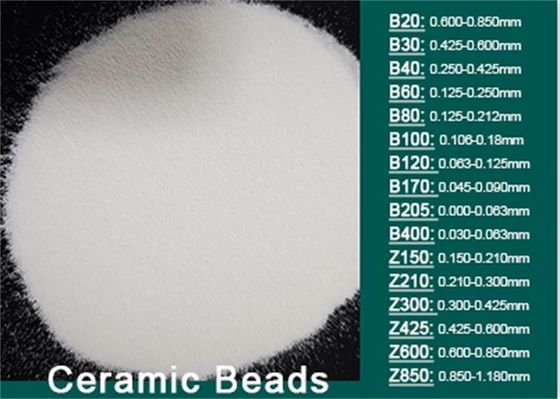

Size Available(mm)

Blasting-clean/Surface finish

Shot peening

B20: 0.600-0.850mm

Z150: 0.150-0.210mm,

B30: 0.425-0.600mm

Z210: 0.210-0.300mm

B40: 0.250-0.425mm

Z300: 0.300-0.425mm,

B60: 0.125-0.250mm

Z425: 0.425-0.600mm,

B80: 0.180-0.250mm

Z600: 0.600-0.850mm

B100: 0.128-0.18mm

Z850:0.850-1.180mm

B120: 0.063-0.125mm

Size can be customized

B170: 0.045-0.090mm

B205 : 0.000-0.063mm

B400: 0.000-0.063mm



3. Main Features of Ceramic Beads Blasting Media

1)  White color, high sphericity and smooth surface beads.

2)High hardness and toughness, strong mechanical resistance, but gentle with equipment and tools preserving work parts.

3)  Less operating pressure and reduced abrasive velocity needed. So it has far less abrasive breakdown and dust generation for cleaner working environment.
4)  Chemically inert, no metallic contamination for treated parts.



4. Application of Ceramic Beads Blasting Media

Ceramic beads blasting media can be used in these applications (just name a few):

1)Cleaning and surface preparation (deburring, etching, paint removal and cosmetic finishing ) of moulds, castings and delicate items.

2)Effectively used in air or wet pressure blasting process and in wheel turbine machines.

High Hardness B80 Zirconia Ceramic Bead Blasting For 3C Products Sandblasting for Sandblasting Machine 0

5. Storage, Package and Usage of Ceramic Beads

Ceramic beads should be stored in a dry, clean and ventilated indoor environment;

Masks and protective suit should be worn when using ceramic beads;

Normal package:25kg round barrel+pallet;

When using ceramic beads at the first time, open 1/3 to 1/2 vest of dust collector,because ceramic beads need the wind to be recycled in the blasting process.
