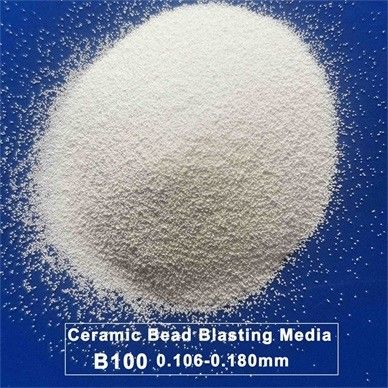

B100 Zirconia Ceramic Blasting Media For Stainless Steel Parts

Minimum Order Quantity : 100kgs Price : Negotiable
Packaging Details : 25KG BARREL+PALLET,2*12.5KG BARREL+CARTON+PALLET Delivery Time : 3-7 days after order confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 3000mts per year
Place of Origin: CHINA Brand Name: Zirnano
Certification: ISO9001,ISO14001 Model Number: B20-B505

Detail Information

Commodity: Ceramic Blasting Media Product Name: Ceramic Beads,Zirconia Beads
Shape: Spherical Main Chemical: ZrO2 60-66%,Al2O3 7-13%,SiO2 25-30%
Hardness: ≥700HV Bulk Density: 2.3g/cm3
True Gravity: 3.85g/cm3 Specification: B20-B505
High Light:

B100 Zirconia Ceramic Blasting Media


SS Parts Ceramic Blasting Media


3C Products Ceramic Blasting Media

Product Description

Zirconia Beads Ceramic Blasting Media B100 B120 B170 B205 B400 B505 for Stainless Steel Parts

1. Product Description

Ceramic Beads is also called as ceramic blasting media,it is one round and solid blasting media,compared

with steel shot and glass beads,ceramic beads has the medium density,which can make up the upper

and lower blind area in blasting process. It can replace glass beads where one clean working condition

is required,also can replace steel shot where ferrous contamination is required.


It is one clean and high efficient blasting media,which has popular blasting applications.


2. Main Technical Data

Commodity Name Chemical Index Physical Index
Ceramic Blasting Beads ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
Vickers Hardness ≥700 HV
True Specific Gravity ≥3.85 g/cm3
Bulk Density≥2.3g/cm3
Particle Size
B20: 0.600-0.850mm B30:0.425-0.600mm B40:0.250-0.425mm
B60:0.150-0.300mm B80:0.125-0.212mm B100:0.106-0.180mm
B120:0.063-0.125mm B150:0.000-0.125mm B170:0.045-0.090mm
B205:0.000-0.063mm B400:0.030-0.063mm B505:0.010-0.030mm
Special specification can be customized


3. Main Applications:

Metal surface finish for 3C products,its built-in parts,as well as its accessories...

Surface preparation before electroplating,anodizing...

Surface cleaning for glass bottle molding,tire molding,die casting...

Surface finish for electronic product,circuit board...

Surface finish for titanium bicycle frame,stainless steel outdoor equipment,golf head,medical instruments....

B100 Zirconia Ceramic Blasting Media For Stainless Steel Parts 0


4. Applicable Equipments:

Manual Sandblasting machine;


Automatic Blasting Machine;


Open Blasting Machine;


Sandblasting room;


5. Why ceramic beads is one clean and high efficient blasting media?

Compared with glass beads,ceramic beads’ service life could be prolonged at least 20- 30 times. The

workpiece treated by ceramic beads will achieve better visual effect and texture as well as lower toughness

compared with the one treated by glass beads.


The greater density of ceramic beads makes it higher modulus of elasticity and greater

impact energy,it will reduce shot blasting pressure and energy consumption to get the same blasting effect.

Only few ceramic beads will be broken in the process of usage,the non-broken ones will maintain the original

features in shape,particle size,hardness as well as smoothness,then it is recyclable,and can reduce the refueling

times, improve working efficiency,then finally save the production cost.


Meanwhile,there is little dust generated in whole blasting process,which will provide one clean and bright working

conditon,also keep the worker escaping from the hidden danger of silicosis.


Therefore ceramic beads is one clean and high efficient blasting media.
