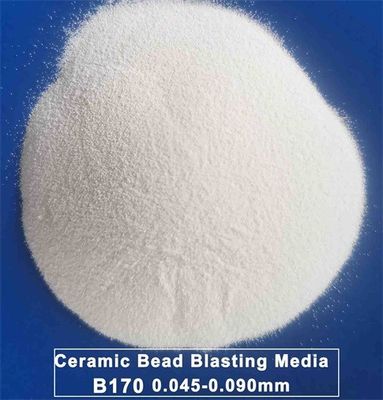

Spherical 700HV Micro Ceramic Blasting Media JZB170
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Zirnano |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25KG BARREL+PALLET,2*12.5KG BARREL+CARTON+PALLET |
| Delivery Time: | 3-7 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000mts per year |
|
Detail Information |
|||
| Commodity: | Ceramic Blasting Media | Product Name: | Ceramic Beads |
|---|---|---|---|
| Shape: | Spherical | Main Chemical: | ZrO2 60-66%,Al2O3 7-13%,SiO2 25-30% |
| Hardness: | ≥700HV | Bulk Density: | 2.3g/cm3 |
| True Gravity: | 3.85g/cm3 | Specification: | B20-B505 |
| High Light: | 700HV Micro Ceramic Blasting Media,JZB170 Ceramic Blasting Media,ZrO2 Spherical Ceramic Blasting Media |
||
Product Description
700HV Mirco-beads Ceramic Blasting Media JZB120 JZB150 JZB170 JZB205 for Metal Surface Finish
1. Product Description of Ceramic Blasting Media
Ceramic beads is also called as ceramic blasting media,it selects the high quality zircon sand as main
material,then fused in arc furnace,finally made into different micro-beads by special technology.
Ceramic beads has wide particle size from B20 to B505,it can match most blasting machines in dry and
wet blasting.
Compared with glass beads,the service life of ceramic beads can be prolonged 20-30 times,it is not easy
to be brokendown in the blasting process,the non-borken beads will maintain its original shape and property
people don't need to refuel it frequently,then it will finally improve the working efficiency and reduce the
overall production cost seen from the long term.
2. Main Technical Data
| Commodity Name | Chemical Index | Physical Index |
| Ceramic Blasting Beads |
ZrO2 60-66% Al2O3 7-13% |
Vickers Hardness ≥700 HV |
| True Specific Gravity ≥3.85 g/cm3 | ||
| Bulk Density≥2.3g/cm3 | ||
| Particle Size | B20: 0.600-0.850mm | B120: 0.063-0.125mm |
| B30: 0.425-0.600mm | B150: 0.053-0.106mm | |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm | |
| B60: 0.150-0.300mm | B205: 0.000-0.063mm | |
| B80: 0.125-0.212mm | B400: 0.030-0.063mm | |
| B100: 0.106-0.180mm | B505: 0.000-0.030mm | |
| Remark: Special specification can be customized | ||
3. Main Applications of Ceramic Beads:
Surface finish for 3C metal back shell,frame,its built-in parts ...
Surface finish for 3C accessories such as power bank,USB interface,power plug...
Mold-cleaning for glass-bottle,tires,die castings....
Metal finish for aluminum parts,stainless steel parts,light alloys...
Surface preparation before anodizing,electroplating...
4. Main Package:
25kg round barrel+Pallet;
2*12.5kg square barrel+Pallet;
25kg barrel+ wooden case;
Special package can be customized.
5. The Consumption Contrast of Ceramic Beads and Glass beads
One of our clients monthly used up 7000kgs glass beads for aluminium parts sandblasting;while after using
ceramic beads as blasting media,then monthly consumption reduced to be only 100kgs. Then the overall
blasting cost has reduced sharply,meanwhile it also generates little dust in blasting process which will also
reduce the treatment cost of solid waste. That above is one true example for review.
6. Why choose us?
Professional manufacturer of ceramic beads,annual output over 3000mts...
Stable quality products and strict quality control system...
Competitive price/performance ratio...
Same quality as the one of Mircroblast and Zirblast...
Stable supplier of Foxconn,Samsung Electronics...
Fast delivery and flexible payment methods...
