B80 Metal Surface Ceramic Blasting Media For Mechanical Parts
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | B20-B400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| High Light: | Metal Surface Ceramic Blasting Media,B80 Ceramic Blasting Media,Mechanical Parts Ceramic Blasting Media |
||
Product Description
Metal surface sandblasting media Ceramic beads B80 for mechanical parts shotblasting
DESCRIPTION
Ceramic beads blasting media also called zirconium silicate ceramic beads, with ZrO2 60%-66%, is made from zirconium sand, melting and blending in the high temperature mine heat furnace, then made to micro beads size B20-B505.
Suitable for the surface shotblasting and shot peening of AUTO PARTS, MECHANICAL PARTS etc..
SPECIFICATION
Manufacturing process: Melting method
| ZrO2 | SiO2 | Al2O3 | Other |
| 60-66%, | 25-30% max. | 7-13% max. | 5-8% |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 2.3g/cm3 | 3.85g/cm3 | 700 HV |
Sizes B80: 180-250µm
FEATURES
Strong chemical resistance
Guarantees constant performance eg. consistent Surface blasting effect.
Low dust emission
Does not contaminate the work piece surface, and no hidden danger of silicosis, it is harmless to the human body.
Not easy to break
Recyclable,and can reduce the refueling times, improve working efficiency.
APPLICATION

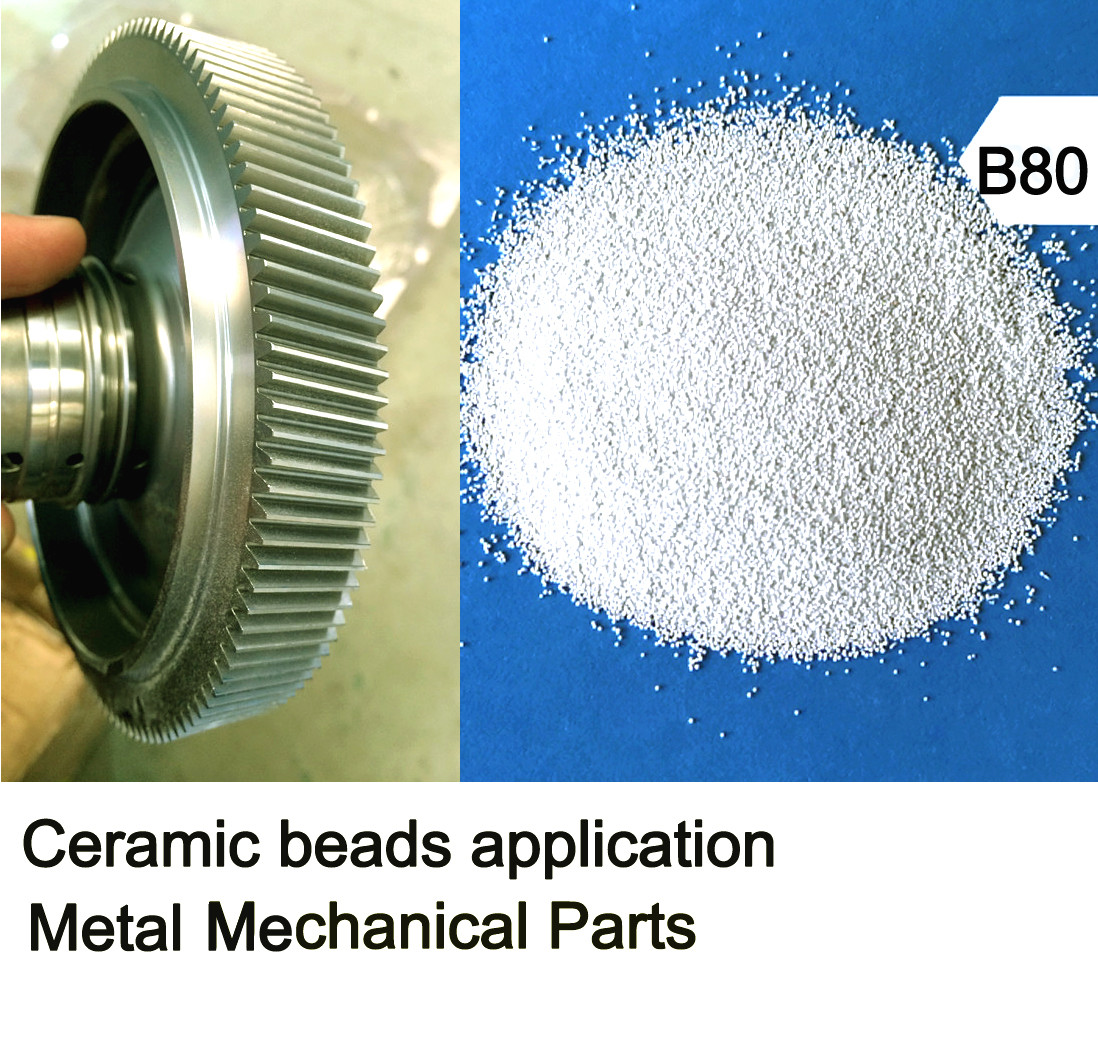

Ceramic beads is widely used for sandblasting, shotblasting and shot peening for auto parts, gears, and mechanical parts.
The strong shot peening process is an important method to improve the bending fatigue strength and contact fatigue strength of gear teeth, and it is an important way to improve gear anti-seizure ability and increase gear life.
APPLICABLE EQUIPMENT
- Manual sandblasting machine
- Automatic sandblasting machine
- Open type sandblasting machine
- Sandblasting machine room
