Stainless Steel Plate B20 Zirconium Silicate Beads
|Place of Origin:||Shanxi,China|
Payment & Shipping Terms:
|Minimum Order Quantity:||100kgs|

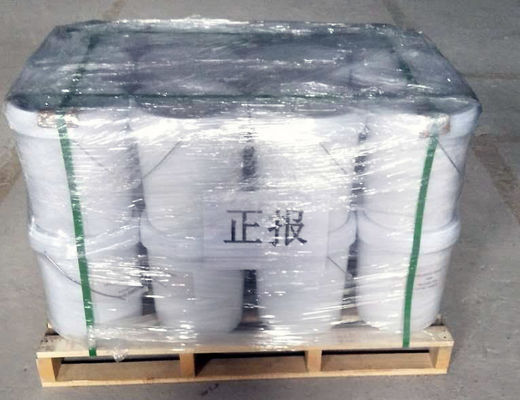

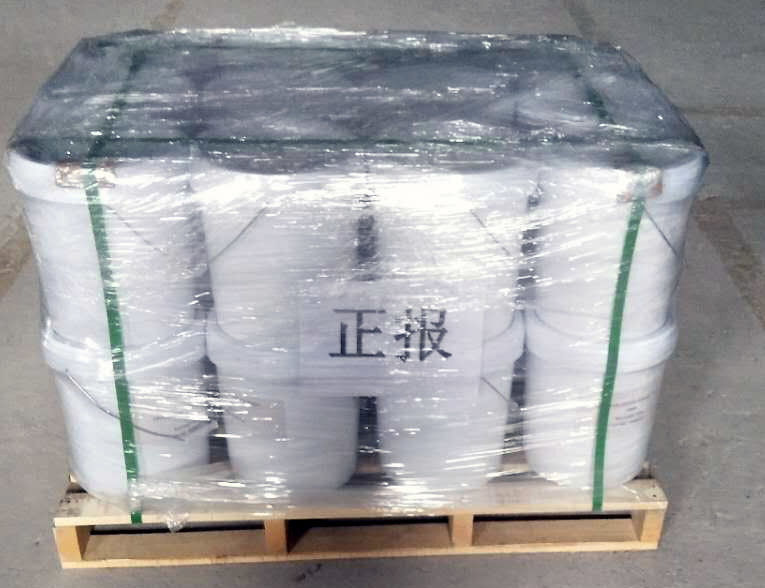

|Packaging Details:||25kg barrel+ Pallet,2*12.5kg barrel+Carton+Pallet|
|Delivery Time:||2-4 days after order confirmed|
|Payment Terms:||L/C, MoneyGram, Western Union,paypal|
|Supply Ability:||3000mts per year|
|Commodity:||Ceramic Bead Blasting||Product Name:||Ceramic Beads|
|Shape:||Round Solid Beads||Bulk Density:||2.3g/cm3|
|True Gravity:||3.85g/cm3||Main Chemical:||60-66% ZrO2,25-30% SiO2,7-13% Al2O3|

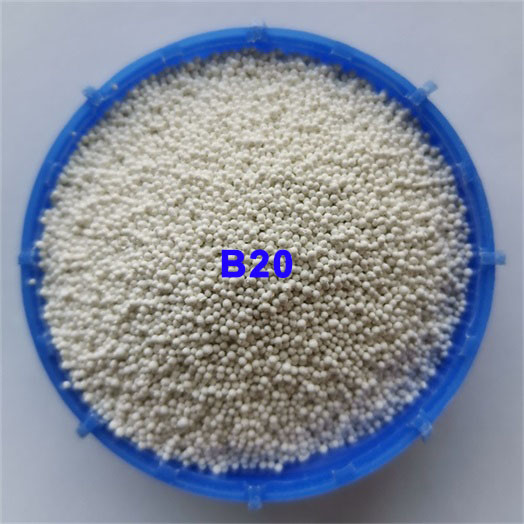

|Hardness:||700HV Min||Size:||B20: 0.600-0.850mm|
B20 Zirconium Silicate Beads,
SS Plate Zirconium Silicate Beads,
700HV Zirconium Silicate Beads
Zirconium Silicate Beads Ceramic Blasting Media B40 B60 B120 for Stainless Steel Plate
1. Product Description
Ceramic Beads is also called as Zirconia sand,it selects the high quality zircon sand as main materail,then fused
in arc furnace under high temperature,finally screened into different microbeads.
It is one round solid abrasive media,which has higher hardness,lower breakdown rate,it will provide one more
consistent blasting effect and clean working condition as well as higher blasting efficiency compared with the one
of glass beads.
It also has smooth surface,good sphericity,it is most suitable for metal surface finish,it can match most blasting
machine due to its wide size distribution.
Nowdays,ceramic beads is widely used in many blasting application,it will gradually replace glass beads in the
2. Main Technical Data
|Commodity||Chemical Index||Physical Index|
|Ceramic Blasting Media||ZrO2 60-66%||Bulk density:2.3g/cm3|
|SiO2 25-30%||True Gravity ≥3.85 g/cm3|
|Al2O3 7-13%||Vicker Hardness≥700 HV|
|Particle Size||B20: 0.600-0.850mm||B120: 0.063-0.125mm|
|B30: 0.425-0.600mm||B170: 0.045-0.090mm|
|B40: 0.250-0.425mm||B205: 0.000-0.063mm|
|B60: 0.150-0.300mm||B400: 0.030-0.063mm|
|B80: 0.125-0.212mm||B505: 0.010-0.030mm|
|Special specification can be customized|
3. Main Applications of Ceramic Blasting Media
Surface finish for 3C products,its built-in parts as well as its accesspries;
Surface finish for fishing gear,Titanium bicycle frames,stainless steel plate,artifical joint,golf head...
Surface Preparation before electroplating and anodizing etc.
Surface cleaning for glass-bottle molds,tire molds,die casting...
Deburring,oxide-scale removal for mechnical products...
Surface finish for hardware products,heat-treated products...
Shot peening for automotive and aviation industry...
4. Applicable Equipments:
Manual sandblasting machine
Automatic sandblasting machine
Open sandblasting machine
5. Why choose us?
Professional manufacturer of ceramic blasting media,annual output over 3000mts;
More competitive price/performance ratio;
Strict production formula and quality control system;
All the products will be sampled twice even for one small free sample;
Diverse and flexible package to meet clients’ different requirements;
Fast Delivery and flexible payment methods;
Stable supplier of world famous enterprises: Foxconn,Samsung Electronics...
