Ceramic Bead Blasting B30 applicable for Open Sandblasting machine 700HV
Product Details:
| Place of Origin: | China |
| Brand Name: | ZIRNANO |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B30: 0.425-0.600mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg barrel+pallet or 2*12.5kg barrel+ paper carton box + pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200mts per month |
|
Detail Information |
|||
| Main Material: | 60-66% ZrO2 | Usage: | Open Sandblasting Machine |
|---|---|---|---|
| Commodity: | Ceramic Beads | Product Name: | Ceramic Blasting Media |
| Bulk Density: | 2.3 G/cm3 | True Gravity: | 3.85 G/cm3 |
| Vicker Hardness: | 700 HV | Shape: | Solid Round Ball White Color |
| High Light: | B30 Ceramic Bead Blasting,Open Sandblasting Ceramic Bead Blasting,700HV Ceramic Bead Blasting |
||
Product Description

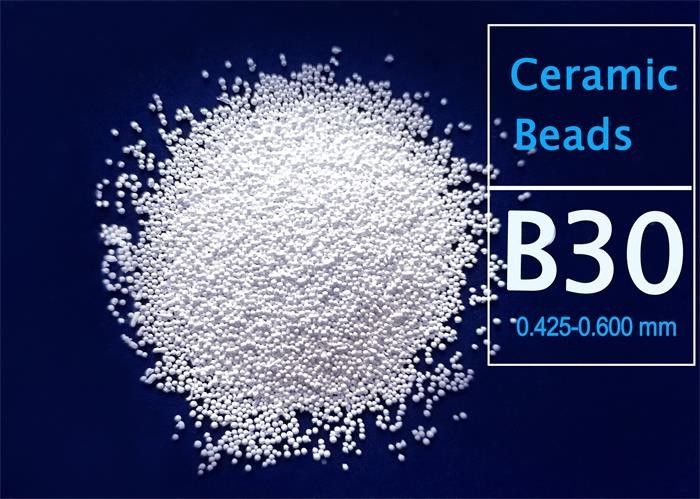

Ceramic Beads blasting media B30 Size 0.425-0.600mm multi-times use easy to recycle
- Commodity Description
Ceramic beads is widely used as a sandblasting media and perform efficiently in dry or wet blasting systems
as well as in wheel turbine blasting equipment.
It’s Zirconia based material and with ZrO2 about 60-62%, SiO2 25-30%. The ZrO2 microstructure is very fine
and distributed on the SiO2 substrate in a tile shape, so it has good wear resistance and impact resistance.
It can be used for 70-90 times, and no dust, easy to recyle.
|
Chemical & Physical Index
|
||||||
| Chemical Index | Production Process | True Density | Bulk Density | Hardness | ||
| Vickers | Mohs | Rockwell | ||||
|
ZrO2 : 60-66% SiO2: 25-30% Al2O3: 7-13% |
Smelting | 3.85 | 2.3 | 700HV | 7 | 60HRC |
|
Sizes
|
||||||
| B20: 0.600-0.850mm | B80: 0.125-0.212mm | B170: 0.045-0.090mm | ||||
| B30: 0.425-0.600mm | B100: 0.106-0.180mm | B205:0.000-0.063mm | ||||
| B40: 0.250-0.425mm | B120: 0.063-0.125mm | B400: 0.030-0.063mm | ||||
| B60: 0.150-0.300mm | B150: 0.053-0.106mm | B505: 0.010-0.063mm | ||||
|
Features of Ceramic beads
|
||||||
| 1. Consistency of spherical shape and sizes provides smooth sating surface finish and consistent results from the first part to the last. | ||||||
| 2.Outstanding elasticity provides a high impact force. | ||||||
| 3. High wear resistance, high impact resistance, and low dust. | ||||||
|
4. Cost-effective compared to glass beads, media consumption reduced up to 90% Vs glass Beads. |
||||||
|
Parameters- (Comparing with glass beads and steel shot)
|
||||||
| Parameters | Ceramic Beads | Glass Beads | Steel Shot | |||
| Chemical index | ZrO2+SiO2+Al2O3 | SiO2+NaO2 | C+Si+Mn+S+P | |||
| Vickers Hardness | ≈700HV | ≈560HV | ≈700HV | |||
| Rockwell Hardness | ≈60HRC | ≈46HRC | ≈60HRC | |||
| True Density | 3.85g/cm3 | 2.6 g/cm3 | 7.8 g/cm3 | |||
| Size range | 0.04-0.85mm | 0.045-0.85mm | 0.05-0.60mm | |||
| Shape | spherical | spherical | fillet | |||
| Dust Pollution | Very little | big | medium | |||
| Metal Pollution | no | no | spherical | |||
| Recycling times | Multi-time | 1-2 times | Multi-time | |||
| Work life | Long | Low 1/25 of ceramic beads | Long | |||
| Power consumption | Low | Low | High | |||
| Equipment wear loss | Low | Low | High | |||
| Sandblasting effect | High finish, no discoloration | High finish, whitish | Low finish, darken | |||
|
Fields of Application
|
||||||
| 3C electronic products: Computers, mobile phones, cameras, tablets and other metal, plastic appearance and built-in parts, surface finishing treatment. | ||||||
| Mechanical: overall sandblasting and finishing of mechanical appearance, restore the original color of metal, improve visual effect and texture, such as medical equipment. | ||||||
| Hardware: Polishing of metal parts, deburring, descaling, derusting, degreasing, pre-painting. | ||||||
| Pipes: Copper pipes, steel pipes, and other metal pipes. The inner and outer walls are cleaned and polished. | ||||||
| Molds: glass bottles, tires and other molds to clean up and remove rust, dirt and impurities. | ||||||
|
Applicable Equipment
|
||||||
| Manual sandblasting machine, automatic sandblasting machine, open sandblasting machine & sandblasting room | ||||||
|

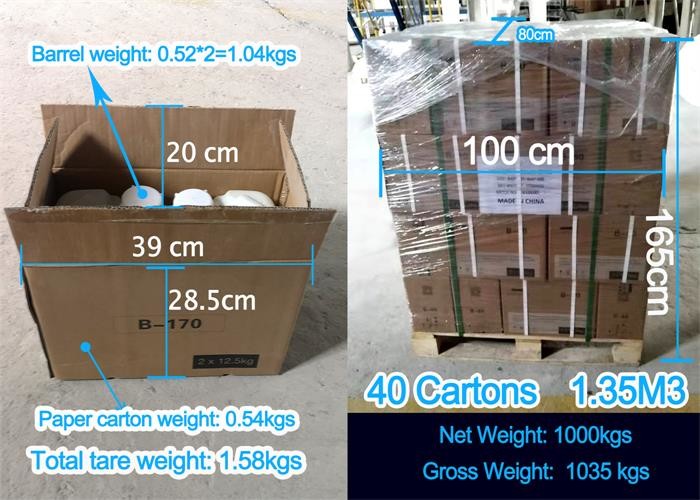

Package
|
||||||
| 25kgs /Barrel+Pallet or 12.5kgs/Barrel, 2 barrels / Paper carton+Pallet | ||||||
- How to recycle the used ceramic beads
Ceramic beads is very easy to recycle, and the commonly used recycling equipment is a gas washing separator.
The used ceramic beads mixture enters the upper part of the air washing separator, and the air pressure is adjusted to form layers for recycling.
The intact and unbroken ceramic beads will not deviate and fall directly into the collection box.
The air generated by the dust collecting fan blows up the broken sand and dust, and the dust is discharged into the dust collector with the airflow.
The broken ceramic beads falls into the trash can due to the expansion of air.
In this way, the ceramic beads recycling is completed.
Contact us to know more...
