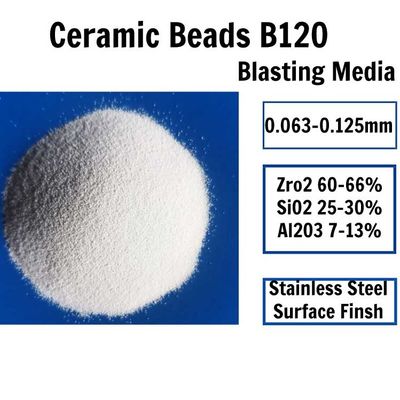

700HV Good Sphericity 85% Zirconia 0.125mm B120 Ceramic Blasting Media
Product Details:
| Place of Origin: | China |
| Brand Name: | Zirnano |
| Certification: | ISO9001,ISO14001,SGS,ROHS |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg barrel+pallet or 2*12.5kg barrel+carton+pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 250mts monthly |
|
Detail Information |
|||
| Commodity: | Ceramic Blasting Media | Product Name: | Ceramic Beads,Ceramic Microspheres |
|---|---|---|---|
| Color: | White | True Gravity: | 3.85g/cm3 |
| Bulk Density: | 2.3g/cm3 | Hardness: | 700HV |
| Sphericity: | ≥85% | Usage: | Blasting Media |
| High Light: | B120 Ceramic Blasting Media,zirconia Ceramic Blasting Media,700HV Abrasive Blasting Media |
||
Product Description
Ceramic Blasting Media B60 B120 for Surface Finish of welding line or knife mark of stainless steel parts
1. Product Description of Ceramic Beads Blasting Media
Ceramic beads is also called as zirconia sand,it selects the high quality zircon sand as main raw material,then fused in arc furnace under high temperature over 2000 degrees,then made into different micro beads through special technologies.
Our zirnano ceramic beads has almost the same blasting effect of the one of Zirblast from Saint-gobain,while with more competitive price/performance ratio.
Ceramic beads has low breakdown rate,there is little dust generated in the whole blasting process,If you are looking for one clean blasting media to replace glass beads,then our zirnano ceramic beads is one good choice for you.
2. Main Technical Data of Ceramic Beads
| Commodity | Chemical Index | ZrO2 60-66% SiO2 25-30% Al2O3 7-13% |
|
Ceramic Beads Blasting Media |
Processing Method | Melting |
| Vickers Hardness | ≥700 HV | |
| True Specific Gravity | ≥3.85 g/cm3 | |
| Bulk Density | ≥2.3g/cm3 | |
| Usage | Blasting Media |
| Particle Size | |
| B20: 0.600-0.850mm | B120: 0.063-0.125mm |
| B30: 0.425-0.600mm | B150: 0.053-0.106mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.150-0.300mm | B205: 0.000-0.063mm |
| B80: 0.125-0.212mm | B400: 0.030-0.063mm |
| B100: 0.106-0.180mm | B505: 0.000-0.030mm |
| Remark: Special specification can be customized | |
3. Advantages of Ceramic Beads
High hardness
Ceramic beads has high hardness of 645-783HV,which will provide high impact strength and small deformation,then finally achieve high blasting efficiency and stable blasting effects;
Clean and recyclable
Ceramic beads has low breakdownrate,it is one clean and recyclable blasting media,service life can be prolonged to be 20 times more than the one of glass beads,then finally reduce the overall cost.
More consistent blasting effect
Compared with glass beads,ceramic beads will provide lower roughness and more consistent blasting effect.
4. Main Applications of Ceramic Beads
B20&B30 shot peening for metal surface
B40 for mold cleaning of glass bottles,rubber products,tires...
B60 for stainless steel parts to remove the knife mark,welding or surface finish for stainles steel sports equipments....
B120 for surface finish of rubber products, golf heads,artifical joints...
B170 for surface finish of Stainless steel products,build-in parts of 3C products...
B205 for metal surface finish of mobilephone,camera,computer etc.
5. Questions & Answers
Q: Are you manufacturer of ceramic beads? Where your plant locates in?
A: Yes,we are direct manufacturer,our plant locates in Shanxi,China.
Q: Is free sample available?
A: Yes,free sample no more than 500g is available.
Q:How to make one order?
A:please email us and kindly advise the quantity and specification you need,then we will send you the formal order ASAP.
Q: What is your MOQ?
A: Generally speaking, MOQ is 12.5kg,but for special requirement,smaller quantity is also acceptable.
Q: What is your general package?
A: We have two general package: one is 25kg barrel+ pallet,the other is 2*12.5kg barrel+ carton+pallet.
Q:How about the payment terms?
A: L/C,T/T,paypal,money gram is also accepatable.
Q:How about the delivery time?
A:For order quantity no more than 2mts,the cargo can be ready for delivery within 2-4 days.
Q:Quality Guarantee?
A:All the material can be tracable from the raw material to the final products, products will be sampled before delivery even for free sample in small quantity.
