Product Details:

Place of Origin: China
Brand Name: ZIRNANO
Certification: ISO9001,ISO14001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: 25kg barrel+pallet or 2*12.5kg barrel+ paper carton box + pallet
Delivery Time: 3-5 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200mts per month
Get Best Price Contact Now

Detail Information

Main Material: 60-66% ZrO2 Usage: Open Sandblasting Machine
Commodity: Ceramic Beads Product Name: Ceramic Blasting Media
Bulk Density: 2.3 G/cm3 True Gravity: 3.85 G/cm3
Vicker Hardness: 700 HV Shape: Solid Round Ball
High Light:

abrasive media blasting

,

low dust blasting media

Product Description

Ceramic beads B205 media consumption reduced up to 90% Vs glass Beads



Commodity Description



Ceramic beads is widely used as a sandblasting media and perform efficiently in dry or wet blasting systems

as well as in wheel turbine blasting equipment.

It’s Zirconia based material and with ZrO2 about 60-62%, SiO2 25-30%. The ZrO2 microstructure is very fine

and distributed on the SiO2 substrate in a tile shape, so it has good wear resistance and impact resistance.





Chemical & Physical Index



Chemical Index Production Process True Density Bulk Density Hardness
Vickers Mohs Rockwell

ZrO2 : 60-66%

SiO2: 25-30%

Al2O3: 7-13%

Smelting 3.85 2.3 700HV 7 60HRC



Sizes

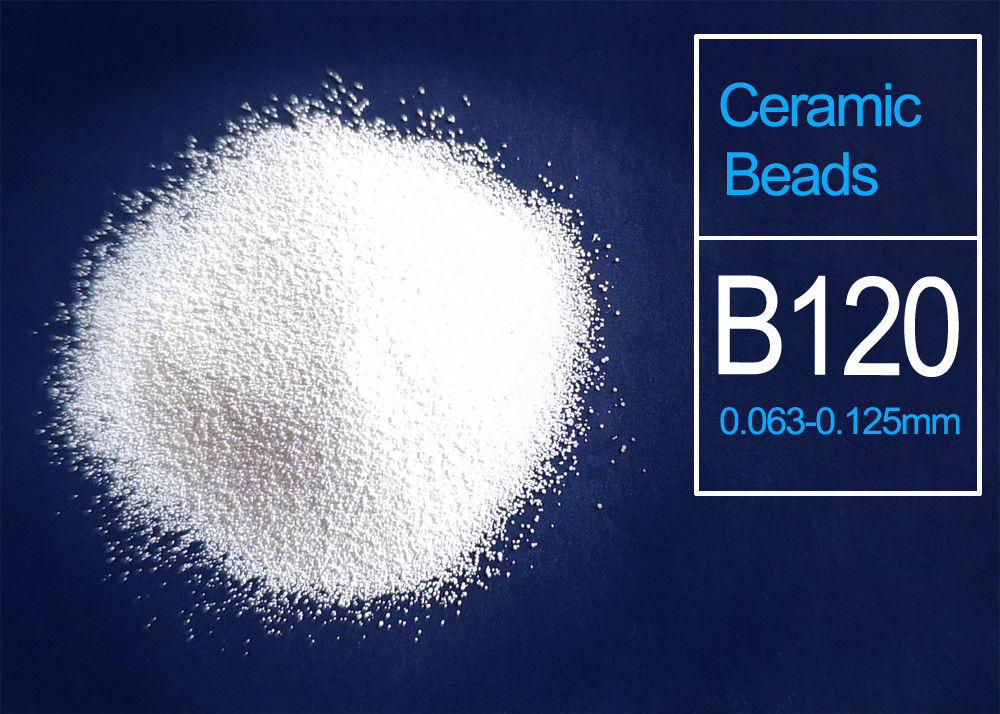

B20: 0.600-0.850mm B80: 0.125-0.212mm B170: 0.045-0.090mm

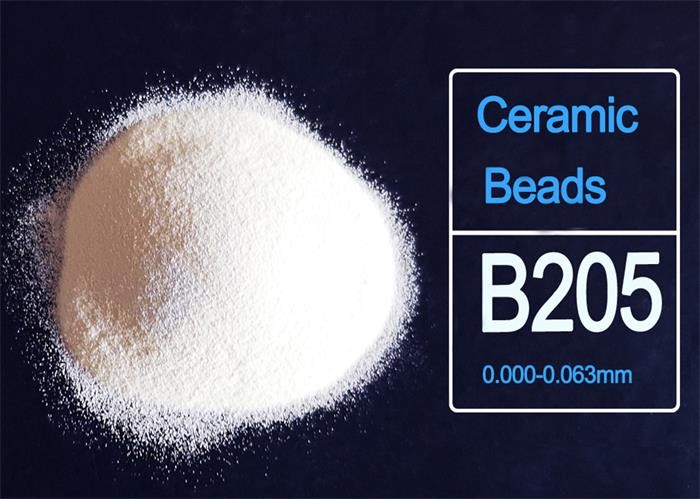

B30: 0.425-0.600mm B100: 0.106-0.180mm B205:0.000-0.063mm
B40: 0.250-0.425mm B120: 0.063-0.125mm B400: 0.030-0.063mm
B60: 0.125-0.250mm B150: 0.053-0.106mm B505: 0.010-0.063mm



Features of Ceramic beads



1. Consistency of spherical shape and sizes provides smooth sating surface finish and consistent results from the first part to the last.
2.Outstanding elasticity provides a high impact force.
3. High wear resistance, high impact resistance, and low dust.

4. Cost-effective compared to glass beads, media consumption reduced up to 90% Vs glass Beads.



Parameters- (Comparing with glass beads and steel shot)



Parameters Ceramic Beads Glass Beads Steel Shot
Chemical index ZrO2+SiO2+Al2O3 SiO2+NaO2 C+Si+Mn+S+P
Vickers Hardness ≈700HV ≈560HV ≈700HV
Rockwell Hardness ≈60HRC ≈46HRC ≈60HRC
True Density 3.85g/cm3 2.6 g/cm3 7.8 g/cm3
Size range 0.04-0.85mm 0.045-0.85mm 0.05-0.60mm
Shape spherical spherical fillet
Dust Pollution Very little big medium
Metal Pollution no no spherical
Recycling times Multi-time 1-2 times Multi-time
Work life Long Low 1/25 of ceramic beads Long
Power consumption Low Low High
Equipment wear loss Low Low High
Sandblasting effect High finish, no discoloration High finish, whitish Low finish, darken



Fields of Application



3C electronic products: Computers, mobile phones, cameras, tablets and other metal, plastic appearance and built-in parts, surface finishing treatment.
Mechanical: overall sandblasting and finishing of mechanical appearance, restore the original color of metal, improve visual effect and texture, such as medical equipment.
Hardware: Polishing of metal parts, deburring, descaling, derusting, degreasing, pre-painting.
Pipes: Copper pipes, steel pipes, and other metal pipes. The inner and outer walls are cleaned and polished.
Molds: glass bottles, tires and other molds to clean up and remove rust, dirt and impurities.



Applicable Equipment



Manual sandblasting machine, automatic sandblasting machine, open sandblasting machine & sandblasting room

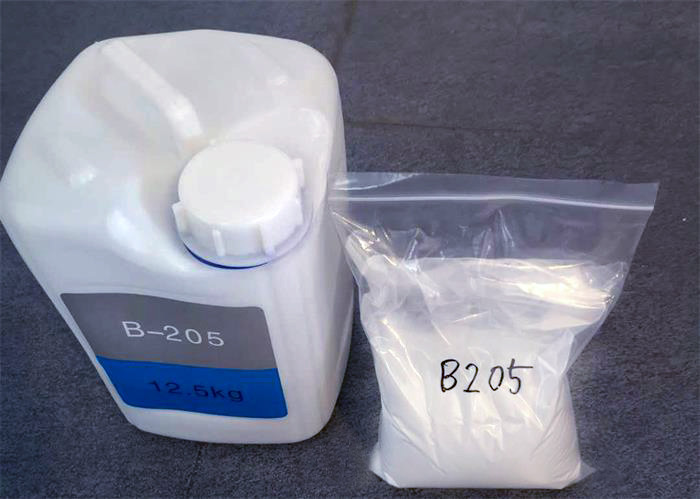

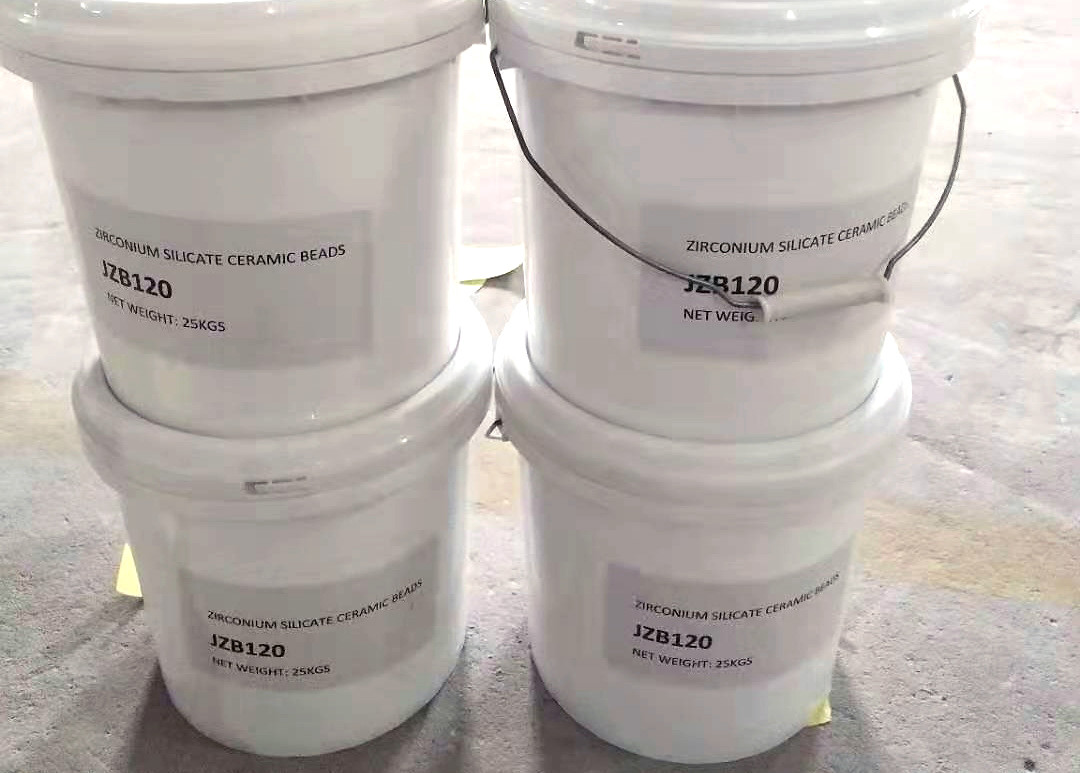

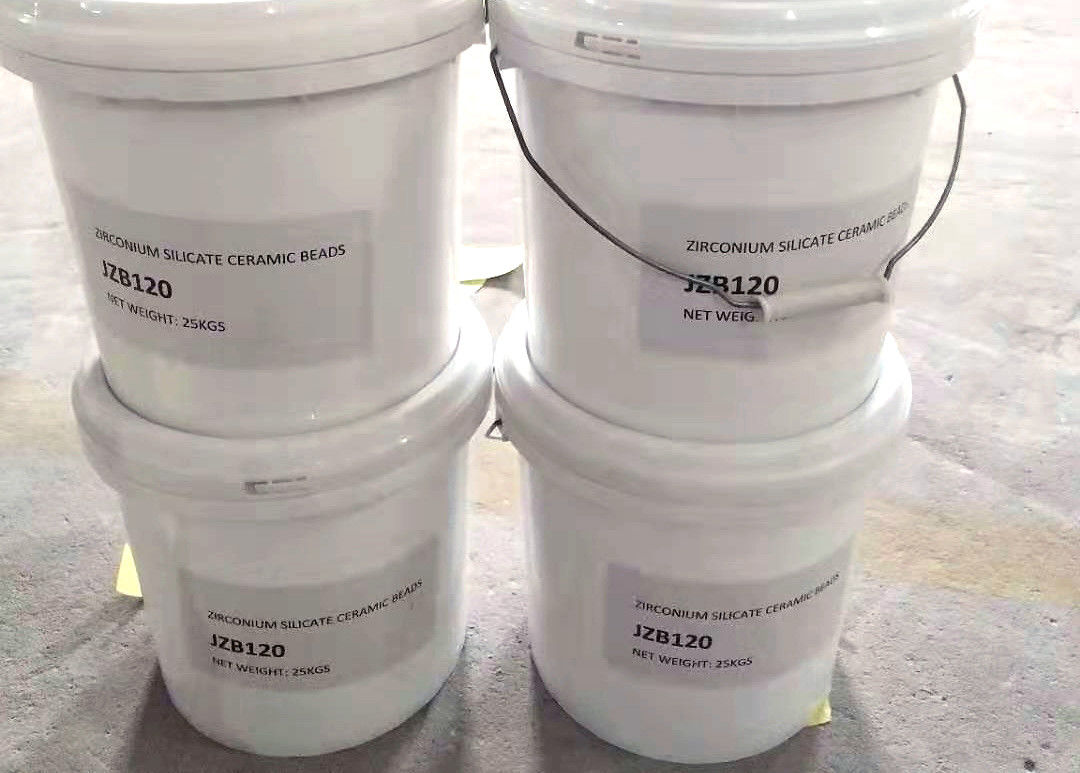

Package



25kgs /Barrel+Pallet or 12.5kgs/Barrel, 2 barrels / Paper carton+Pallet



Other Abrasive media available:



Ceramic Beads JZB120 JZB205 Media Consumption Reduced Up To 90% Vs Glass Beads 0



* Brown fused alumina

* Black  fused alumina

* White fused alumina

* Glass beads

* Plastic media
