Wear Resistance Ceramic Abrasive Media B100 For Titanium Alloy Metal Sandblasting
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001, ISO14001 |
| Model Number: | B120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Abrasive Media | Name: | Sand Blasting Media Zirconia Ceramic Bead |
|---|---|---|---|
| Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | Purity: | 99.9% |
| High Light: | abrasive blasting media,ceramic bead blasting media |
||
Product Description
1 kg Free sample ceramic abrasive blasting media B100 for titanium alloy metal sandblasting
Description of ceramic abrasive blasting media
1 kg Free sample ceramic abrasive blasting media for titanium alloy metal sandblasting
Ceramic Beads is ceramic abrasive sandblasting media, with very fine micro structure featured strong wear resistance and high toughness, and low-dust emission.
It does not contaminate the treated metal parts surface, especially suited for metal and alloy tool cleaning and surface preparation applications.
Comparing with steel shot, the ceramic beads can save energy and preserve work parts because of its appropriate hardness and good elasticity.
Specification of ceramic abrasive blasting media
Chemical Index:
| ZrO2 | 60-66% |
| SiO2 | 25-30% |
| Al2O3 | 7-13% |
Physical Index
| Processing: | Melting |
| Bulk Density: | 2.3g/cm3 |
| True Specific Gravity | 3.97 g/cm3 |
| Vickers Hardness: | 700 kg /mm2 |
Size
| Grit size | B20 | B30 | B40 | B60 | B80 | B100 | B120 |
| Microns μm | 600-850 | 425-600 | 250-425 | 150-300 | 125-212 | 106-180 | 63-125 |
| Grit size | B125 | B170 | B205 | B400 | B505 | Special sizes can be customized | |
| Microns μm | 0-125 | 45-90 | 0-63 | 30-63 | 0-63 | ||
| Grit size | Z850 | Z600 | Z425 | Z300 | Z210 | Z150 | Z100 |
| Microns | 850-1180 | 600-850 | 425-600 | 300-425 | 210-300 | 150-210 | 100-150 |
Application of ceramic abrasive blasting media
- 3C industry sandblasting: Computer shell, mobile phone middle frame, built-in parts and USB Data cable plug blasting surface treatment.
- Glass bottle & Tires Molds cleaning sandblasting
- Shot peening in automotive and aerospace industry.
- Metal parts surface treatment blasting finish, like Hard wares parts, Pots, medical instrument, golf club, etc

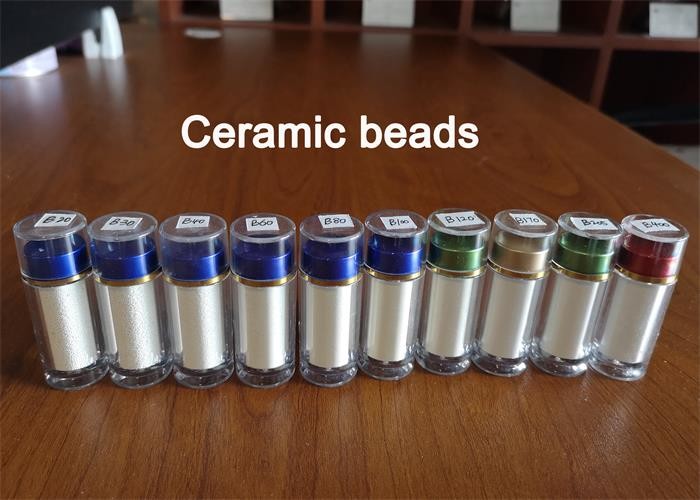

Characteristics of Ceramic beads:
Ceramic beads is of iron free, no contamination or damage to treated metal parts
Narrow particle sizes distribution and smooth spherical beads lead consistency in blasting treatment results from the first part to the last.
Cost-effective compared to glass beads because of its high wear resistance, 25 times better than glass beads.
Enhanced performance in dry air blast, wet blast as well as wheel turbine blasting machines
If you need ceramic beads, pls feel free contact us for advisory pre-sale service, best price, details, and samples, etc.
