Product Details:

Place of Origin: Shanxi,China
Brand Name: FUDA
Certification: ISO9001,ISO14001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet
Delivery Time: 3-10 days depending on the order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200mt per month
Get Best Price Contact Now

Detail Information

Product Name: Ceramic Blasting Media, Zirconia Beads Usage: Medical Instrument Finish
Specification: B120 Particle Size: 0.063-0.125mm
Bulk Density: ≥2.3g/cm3 Processing Method: Melting
High Light:

bead blasting material

,

ceramic bead blasting media

Product Description

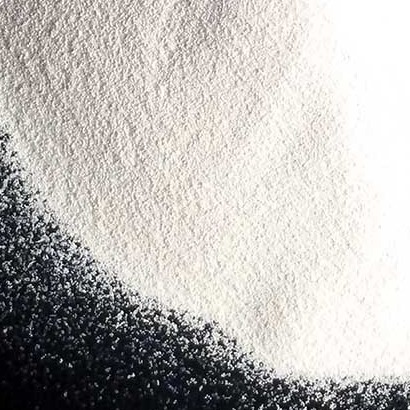

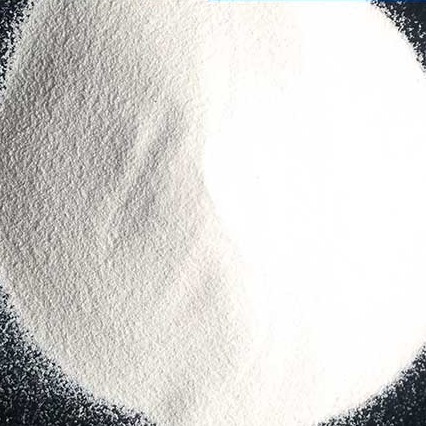

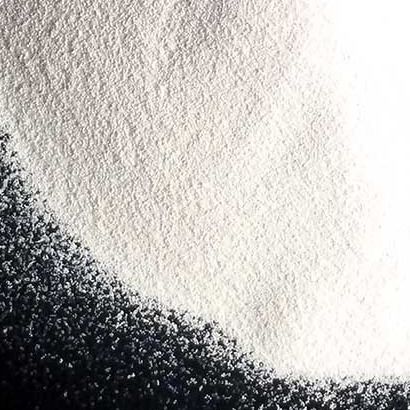

62-66% ZrO2 Ceramic Blasting Media Zirconia Beads B120 for Medical Instrument Finish

1. Product Description of Ceramic Blasting Media Zirconia Beads

The ceramic beads is made from zirconium sand, melting and blending in an high temperature mine

heat furnace, then made into different beads by the special technology.

It is one environmental friendly blasting media compared with the one of glass beads.



2. The Comparation between Ceramic Beads,Glass Beads

Item Ceramic Blasting Beads Glass Beads
Chemical Index ZrO2 62-66%
SiO2 25-30%
Al2O3 7-13%

SiO2>65%,Na2O<14.0%
CaO>8.0%,MgO>2.5%

Vickers Hardness ≥700 HV ≥560HV
True Specific Gravity ≥3.85 g/cm3 ≥2.5g/cm3
Bulk Density ≥2.3g/cm3 ≥1.5g/cm3
Particle Size 0.04-0.85mm 0.045-0.85mm
Usage Blasting Media Blasting Media
Dust Pollution Little Large
Recyclable Times Multiple One time or twice
Service Life Long 1/25 of ceramic beads
Blasting Effect High finish
No discoloration
High finish
White discoloration



Seen from the above chart, ceramic blasting beads has various advantages than the one of

glass beads,and it will provide a clean working environment and no hidden silicosis danger.

Therefore,more and more people are using the ceramic beads as blasting media.



3. Specification of Ceramic Blasting Media Zirconia Beads

Particle Size
B20: 0.600-0.850mm B100: 0.125-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.125-0.250mm B205: 0.000-0.063mm
B80: 0.180-0.250mm B400: 0.030-0.063mm
Remark: Special specification can be customized



4. Why Ceramic Beads is suitable for blasting media?

High Hardness and good toughness

Ceramic Beads has better cleaning power due to its high hardness and good toughness;

High Density and Low Beads Consumption

Ceramic beads has higher density,only few ceramic beads will be broken down in theprocess of usage,

the non-broken ones is still able to keep its original features in shape,hardness as well as the surface

smoothness,that ensures it is recycled,no need to refuel the beads frequently in blasting process,so

the beads consumption is lower.

Long Service time

Compared with the one of glass beads,the life time of ceramic beads will be prolonged at least 20-30 times

when blasting one same treatment,it will also achieve better blasting effect.

Clean Blasting Media

Ceramic beads is also an clean and friendly blasting media,there is no dust and hidden dangers of silicosis

to the worker’s body.



5. Main Application of Blasting Ceramic Beads

Ceramic Beads B120 is widely used for surface finishing in medical instruments,it is able to remove the

mirco burrs in the treatment surface,then make small rounded conners at the junction of two surfaces,

enhance the smoothness and texture.



In addition,ceramic Beads B120 is also used for the surface finish of golf club head and golf shaft.



6. Product Package:

2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
B120 Abrasive Blasting Media , Ceramic Bead Blasting For Medical Instrument Finish 0

















































7. Why Choose us?

Professional Manufacturers of Zirconia Ceramic Beads;



Stable quality and good after-sales service;



Main supplier of Foxconn,Samsung etc.
