• Iphone Surface Finish Ceramic Blasting Media Ceramic Beads Zirconia Sand B170,B205 60 - 66% ZrO2
  • Iphone Surface Finish Ceramic Blasting Media Ceramic Beads Zirconia Sand B170,B205 60 - 66% ZrO2
  • Iphone Surface Finish Ceramic Blasting Media Ceramic Beads Zirconia Sand B170,B205 60 - 66% ZrO2
  • Iphone Surface Finish Ceramic Blasting Media Ceramic Beads Zirconia Sand B170,B205 60 - 66% ZrO2
Iphone Surface Finish Ceramic Blasting Media Ceramic Beads Zirconia Sand B170,B205 60 - 66% ZrO2

Iphone Surface Finish Ceramic Blasting Media Ceramic Beads Zirconia Sand B170,B205 60 - 66% ZrO2

Product Details:

Place of Origin: Shanxi,China
Brand Name: FUDA
Certification: ISO9001,ISO14001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet
Delivery Time: 3-10 days depending on the order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200mt per month
Get Best Price Contact Now

Detail Information

Product Name: Ceramic Blasting Media, Zirconia Sand Usage: 3C Metal Surface Finish
Specification: B170 Particle Size: 0.045-0.090mm
Vicker Hardness: 700HV Shape: Spherical
High Light:

abrasive blasting media

,

ceramic bead blasting media

Product Description

Iphone Surface Finish Ceramic Blasting Media Ceramic Beads Zirconia Sand B170,B205 60 - 66% ZrO2

1. Product Description of Ceramic Blasting Media Ceramic Beads Zirconia Sand B170,B205

Ceramic Blasting Beads is one kind of zirconia beads,it contains 60-66% ZrO2. Different from the sinterred

zirconium silicate beads, ceramic blasting beads is produced by melting method in an electric furnace under

high tempreature over 2000 degrees. It is widely used for sandblasting purpose.



2. The Comparation between Ceramic Beads,Zirconium Silicate Beads

Item Ceramic Blasting Beads Zirconium Silicate Beads
Chemical Index ZrO2 62-66%
SiO2 25-30%
Al2O3 7-13%
ZrO2 ≥65%
SiO2 25-30%
Others ≤1.0%
Processing Method Melting Sintering
Vickers Hardness ≥700 HV ≥900 HV
True Specific Gravity ≥3.85 g/cm3 ≥4.0g/cm3
Bulk Density ≥2.3g/cm3 ≥2.5g/cm3
Particle Size B20-B400 etc Φ0.1-10mm
Usage Blasting Media Grinding Media



Seen from the above chart, ceramic beads  is different from the one of zirconium silicate beads,

it is widely used in blasting purpose.



3. Specification of Ceramic Blasting Media Ceramic Beads Zirconia Sand B170,B205

Particle Size
B20: 0.600-0.850mm B100: 0.125-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm

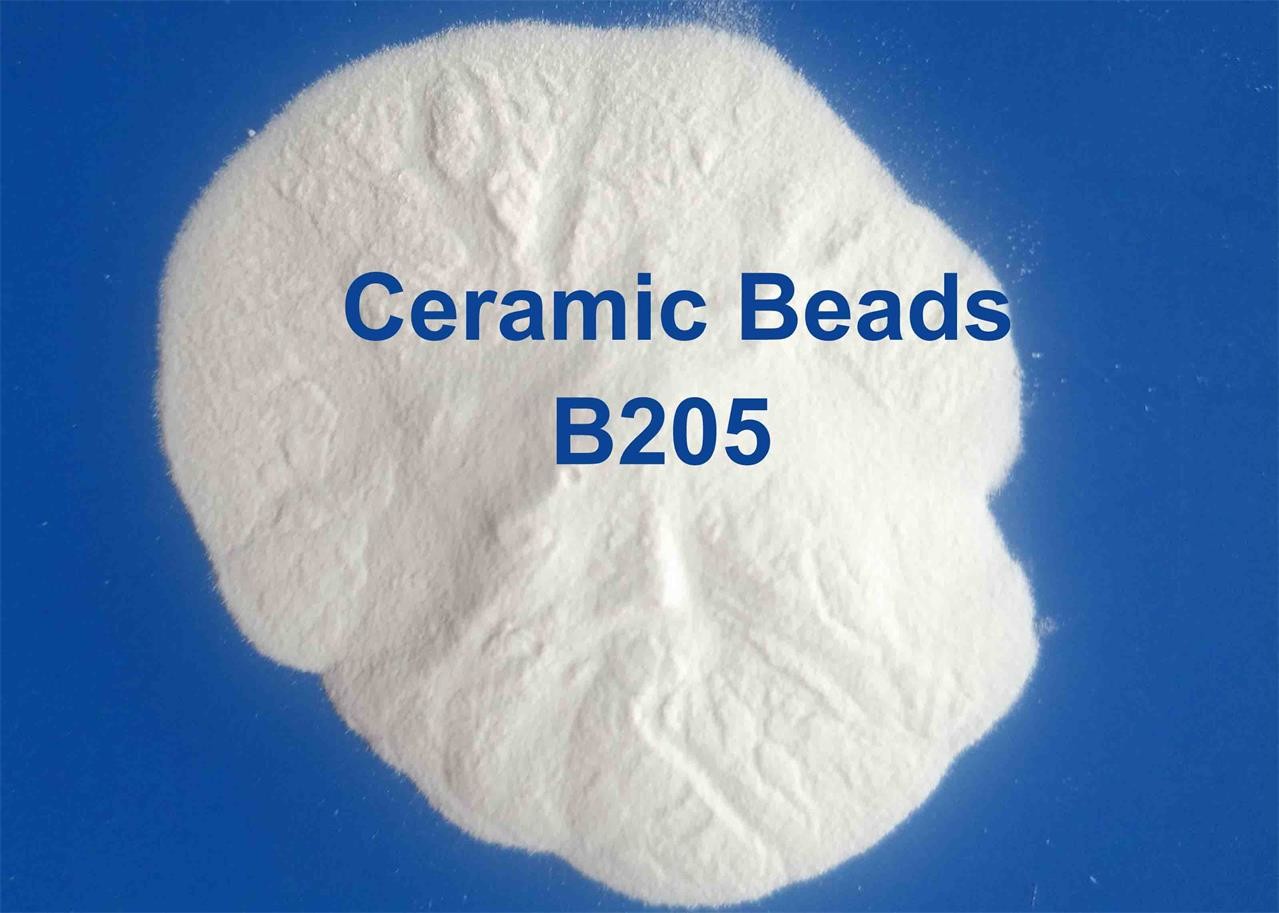

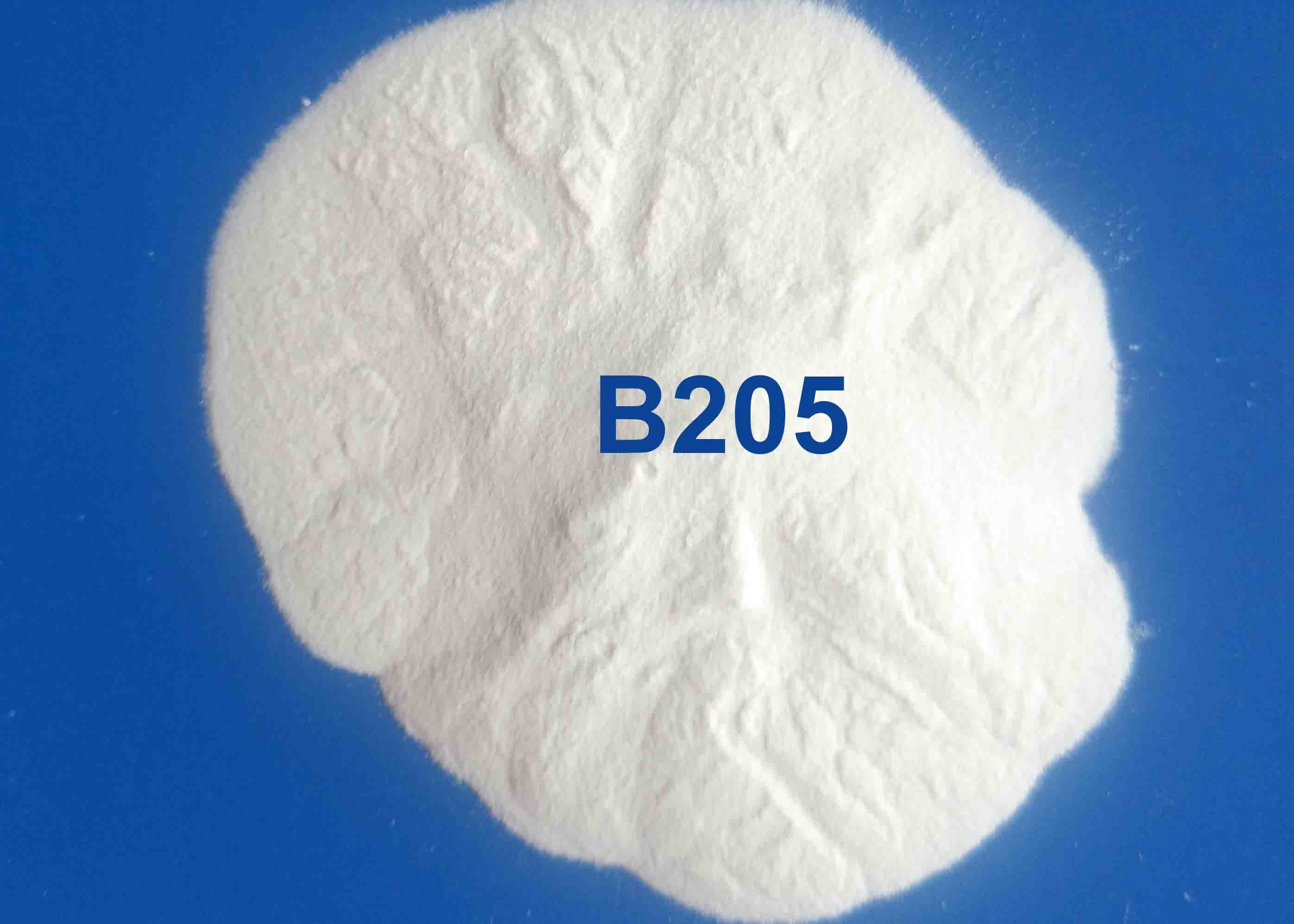

B60: 0.125-0.250mm B205: 0.000-0.063mm
B80: 0.180-0.250mm B400: 0.030-0.063mm
Remark: Special specification can be customized



4. Why Ceramic Beads is suitable for blasting media?

High Hardness and good toughness

Ceramic Beads has better cleaning power due to its high hardness and good toughness;

High Density and Low Beads Consumption

Ceramic beads has higher density,only few ceramic beads will be broken down in theprocess of usage,

the non-broken ones is still able to keep its original features in shape,hardness as well as the surface

smoothness,that ensures it is recycled,no need to refuel the beads frequently in blasting process,so

the beads consumption is lower.

Long Service time

Compared with the one of glass beads,the life time of ceramic beads will be prolonged at least 20-30 times

when blasting one same treatment,it will also achieve better blasting effect.

Clean Blasting Media

Ceramic beads is also an clean and friendly blasting media,there is no dust and hidden dangers of silicosis

to the worker’s body.

5. Main Application of  Ceramic  Blasting Media Zirconia Beads

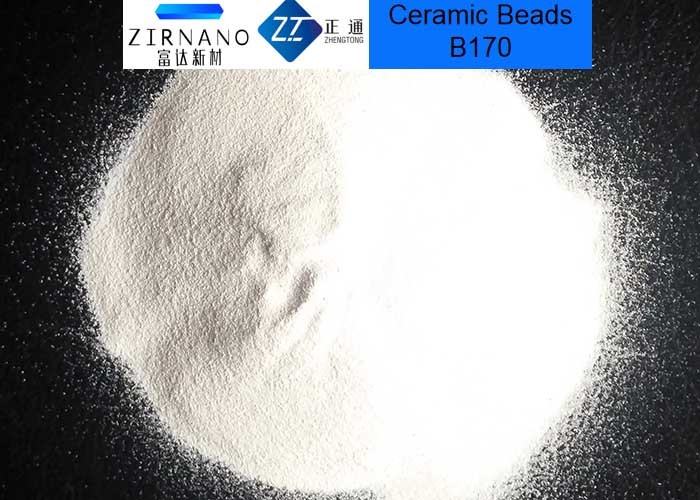

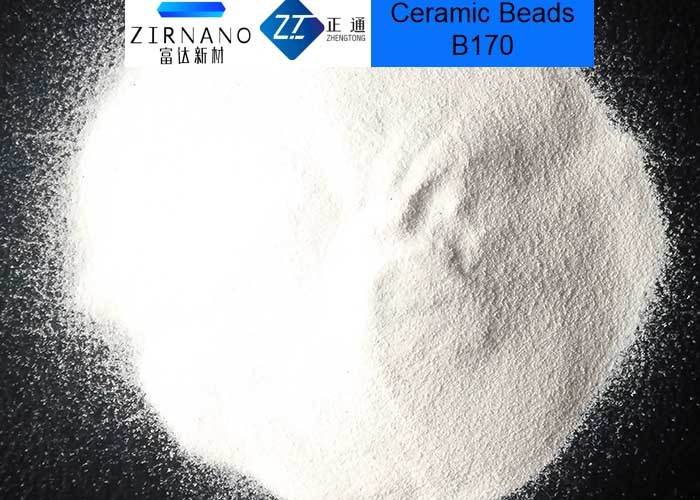

Ceramic Beads B170 is widely used for surface finish,such as the light metal surface of iphone,Ipad,ipod

as well as the related built-in parts.It will achieveto achieve the different reflection and matte effect and the

metal visul effect.



In addition,ceramic Beads is also used in the applications to

Remove the oil stain of glass molds, auto-motives molds,plastics molds, tire molds and dies etc.



Surface Cleaning for all kinds of aluminium alloys, titanium alloys,steels, aluminium etc,then remove the rust,

stains,burrs etc.



6. Product Package of Ceramic Blasting Media Ceramic Beads Zirconia Sand

2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
Iphone Surface Finish Ceramic Blasting Media Ceramic Beads Zirconia Sand B170,B205 60 - 66% ZrO2 0

7. Why Choose us?



Professional Manufacturers of Zirconia  Ceramic Blasting Beads;



Stable quality and good after-sales service;



Main supplier of Foxconn,Samsung etc.
